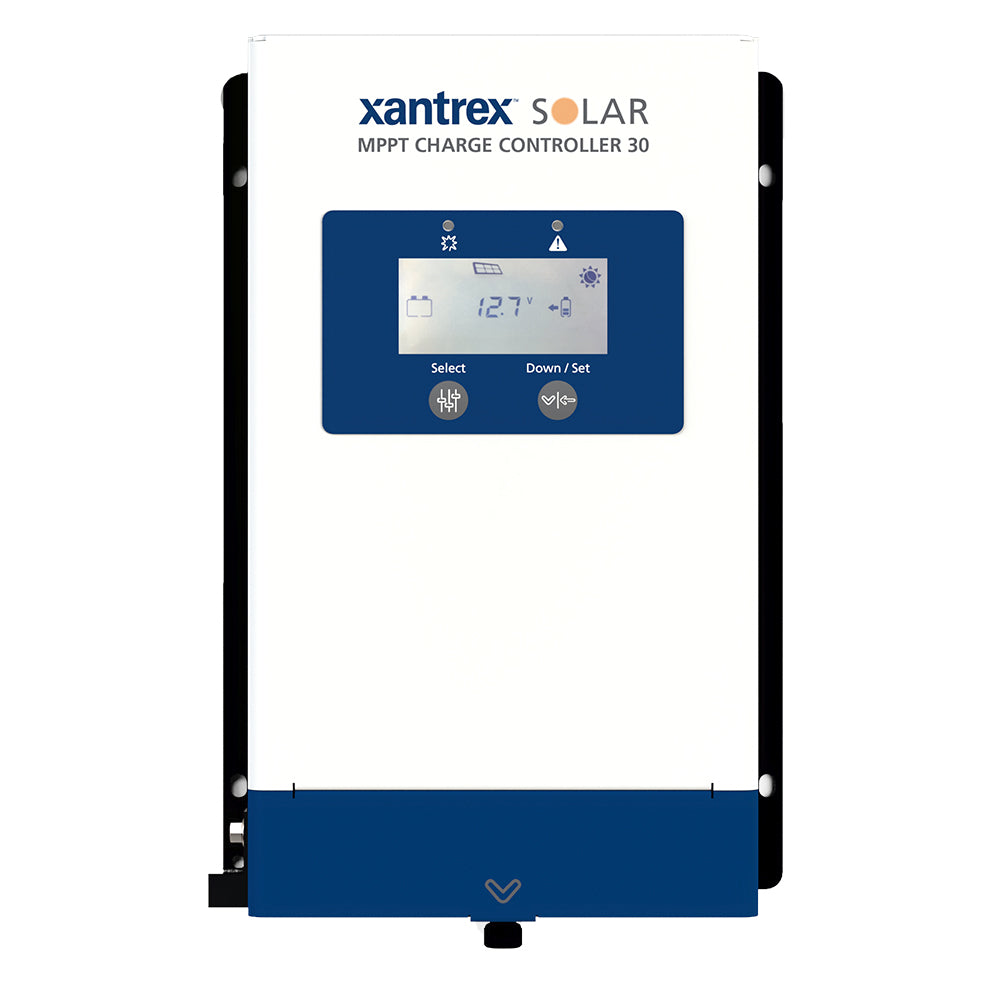

Xantrex 710-3024-01 MPPT 30A Solar Charge Controller

The Xantrex 710-3024-01 MPPT 30A Solar Charge Controller is designed to provide an instant upgrade to your solar system with advanced Maximum Power Point Tracking (MPPT) technology. With this controller, you can increase your daily energy harvest by 20-30% compared to PWM technology, allowing for greater flexibility, simplicity, and efficiency in PV array designs.

Featuring an industry-leading 98% charging efficiency, this charge controller supports dual-battery bank charging, allowing you to simultaneously charge and maintain your house and starter batteries. It is compatible with a wide range of house battery types, including Sealed (AGM), Gel, Flooded, and Lithium Iron Phosphate (LiFePO4) batteries, providing versatility and convenience.

The Xantrex 710-3024-01 MPPT 30A Solar Charge Controller is equipped with a built-in LCD display, providing real-time system data for easy monitoring. It offers best-in-class PV array and battery protections, ensuring the safety and longevity of your solar system. With a maximum PV open circuit voltage of 100V and a maximum PV input power of 12V: 580W and 24V: 1170W, this charge controller can handle a wide range of solar panel configurations.

Features:

• Advanced Maximum Power Point Tracking (MPPT) technology increasing daily energy harvest by 20-30% compared to PWM technology
• Dual-battery bank charging to simultaneously charge house and starter batteries
• Supports a wide range of house battery types: Sealed (AGM), Gel, Flooded, Lithium Iron Phosphate (LiFePO4)
• Built-in LCD display for real-time system data
• Best-in-class PV array and battery protections

Specifications:

• Nominal System Voltage: 12/24V Auto-Detect
• Rated Charge Current: Battery 1: 30A, Battery 2: 1A
• Battery Voltage Range: 8 to 32V
• Max. PV Open Circuit Voltage: 100V
• MPP Voltage Range: (Battery voltage + 2V) up to 72V
• Max. PV Input Power: 12V: 580W, 24V: 1170W
• Rated Charge Power: 12V: 390W, 24V: 780W
• Battery Types Supported:
  • Battery 1 (House): Lead-acid battery (Sealed(AGM) / Gel / Flooded) Lithium Iron Phosphate (LiFePO4)
  • Battery 2 (Starter): Lead-acid battery (Sealed(AGM) / Gel / Flooded)
• Self-consumption: 12V: 17mA, 24V: 10mA
• Grounding: Common negative

Environmental Data:

• Storage Temperature Range: -20&degC to 70&degC
• Operating Temperature Range: -25&degC to 45&degC (fully-rated output)

Mechanical Data:

• Dimensions: 5.91" W X 9.92" H X 2.64" D (165.0mm W X 251.9 mm H x 67.0 mm D)
• Max. Cable Size (PV Array and Battery 1): 0.63in (16mm) / 6AWG
• Recommended Cable Size (PV Array and Battery 1): 0.24in (6mm) / 10AWG or higher
• Max. Cable Size (Battery 2): 0.16in (4mm) / 12AWG
• Recommended Cable Size (Battery 2): 0.04in (1mm) / 18AWG or higher

Learn More:

• Solar Charge Controller on Wikipedia
• Maximum Power Point Tracking on Wikipedia

Specifications

Product: XANTREX LLC 710-3024-01 Solar Charge Controller Mppt 30

Brand: Xantrex

Model: 710-3024-01

Additional Shipping Information:

Shipping Weight: 3.70 lb

Shipping Height: 4.00 in

Shipping Width: 7.00 in

Shipping Length: 12.00 in
