Veratron Intelligent Battery Sensor Kit B00042501 - Link Up IBS System

The Veratron Intelligent Battery Sensor (IBS) Kit, also known as the Link Up IBS System, is a state-of-the-art system that makes it easy to monitor the status and health of batteries in real-time. Batteries are essential for engine starting and operating onboard utilities, and the IBS system measures vital battery parameters such as voltage, current, and temperature, as well as state of charge, health, and function. This provides the essential information needed to plan energy usage aboard and be aware of potential problems. The IBS system works with any OceanLink, AcquaLink, or NMEA 2000-networked display and is compatible with the latest glass cockpit systems.

The IBS system includes a Veratron LinkUp Gateway Module that enables the Intelligent Battery Sensor to be connected to and compatible with the NMEA 2000 network. Its internal galvanic isolation decouples the backbone power from the LinkUp power supply, per NMEA requirement. The IBS system can monitor a single battery or full bank, and multiple LinkUp kits can be used to provide data specific to house, starter, and system-specific supplies. It works with 12V starter, gel, or AGM battery types.

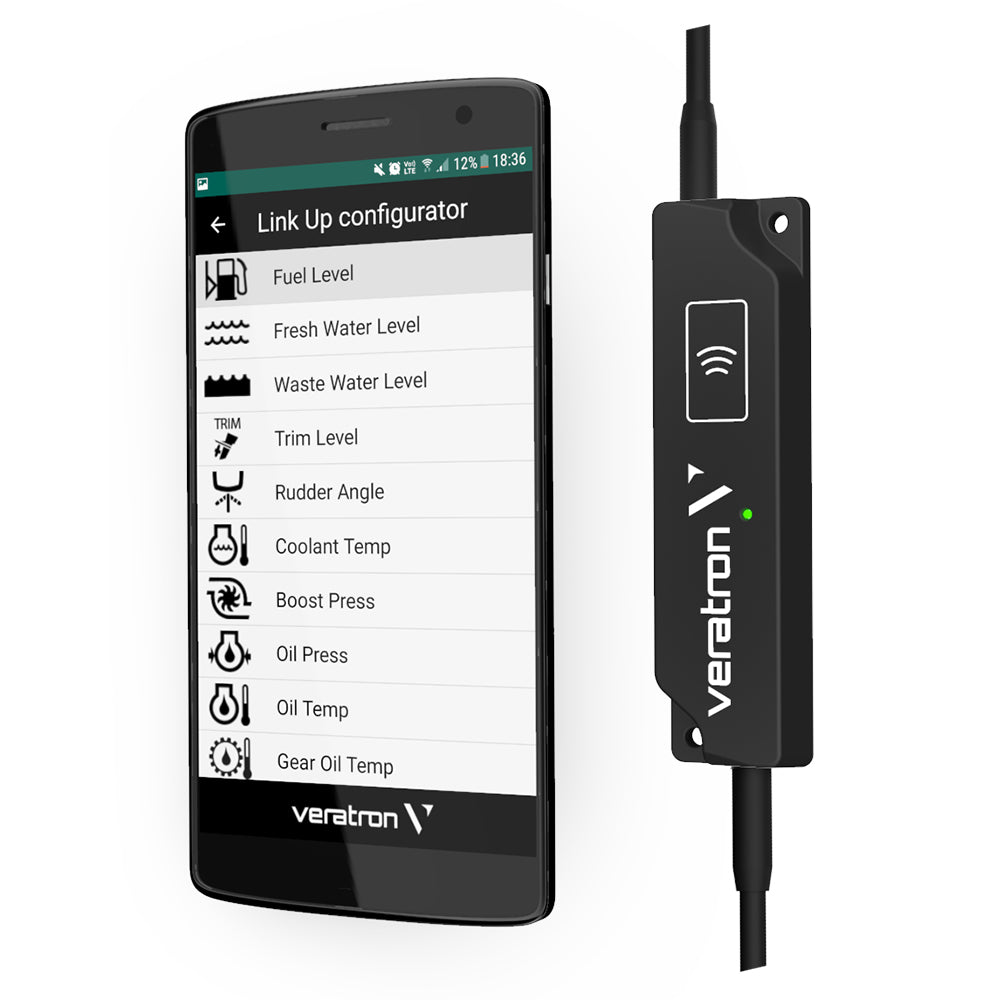

The IBS simply clamps onto the negative pole terminal. Completely sealed, it has a watertight 3A inline fuse within the housing. This connects to the NMEA 2000 backbone through the innovative LinkUp Gateway Module and enables Veratron’s numerous sensors to communicate with the network. Configuring a LinkUp gateway is simple using a mobile device and the companion Veratron app available from the App Store and Google Play. Each module has a built-in passive wireless antenna. The parameters of the sensor are configured to type, instance, and warning threshold on the mobile device and then tapped against the LinkUp device for instant data download. Alternatively, LinkUp devices can be configured via NMEA 2000 with the PC Configuration Tool. This method additionally allows for real-time reading of the analog signal. An LED on the device will illuminate, notifying the user that the LinkUp is being configured.

The Veratron Intelligent Battery Sensor Kit includes a sensor and Link Up Gateway. It is NMEA 2000 certified, has wireless configuration through the companion mobile App, a Status LED, and plug-and-play installation and configuration. The input signal is LIN bus, and the nominal voltage is 12V.

Features:

• NMEA 2000® certified
• Wireless configuration through companion mobile App
• Status LED
• Plug-and-Play installation and configuration
• Input Signal - LIN bus
• Nominal Voltage - 12V

Specifications:

• Measures vital battery parameters: voltage, current, and temperature, as well as state of charge, health, and function
• Monitors a single battery or full bank
• Compatible with OceanLink, AcquaLink, or NMEA 2000-networked displays
• Works with 12V starter, gel, or AGM battery types
• Includes a Veratron LinkUp Gateway Module for NMEA 2000 compatibility
• Internal galvanic isolation decouples backbone power from LinkUp power supply
• Simply clamps onto the negative pole terminal
• Completely sealed with a watertight 3A inline fuse within the housing
• Configurable through companion mobile App or NMEA 2000 with the PC Configuration Tool

Specifications

Product: Veratron B00042501 Link Up Intelligent Battery Sensor Ibs Kit

Brand: Veratron

Model: B00042501

Additional Shipping Information:

Shipping Weight: 0.90 lb

Shipping Height: 4.00 in

Shipping Width: 4.00 in

Shipping Length: 16.00 in
