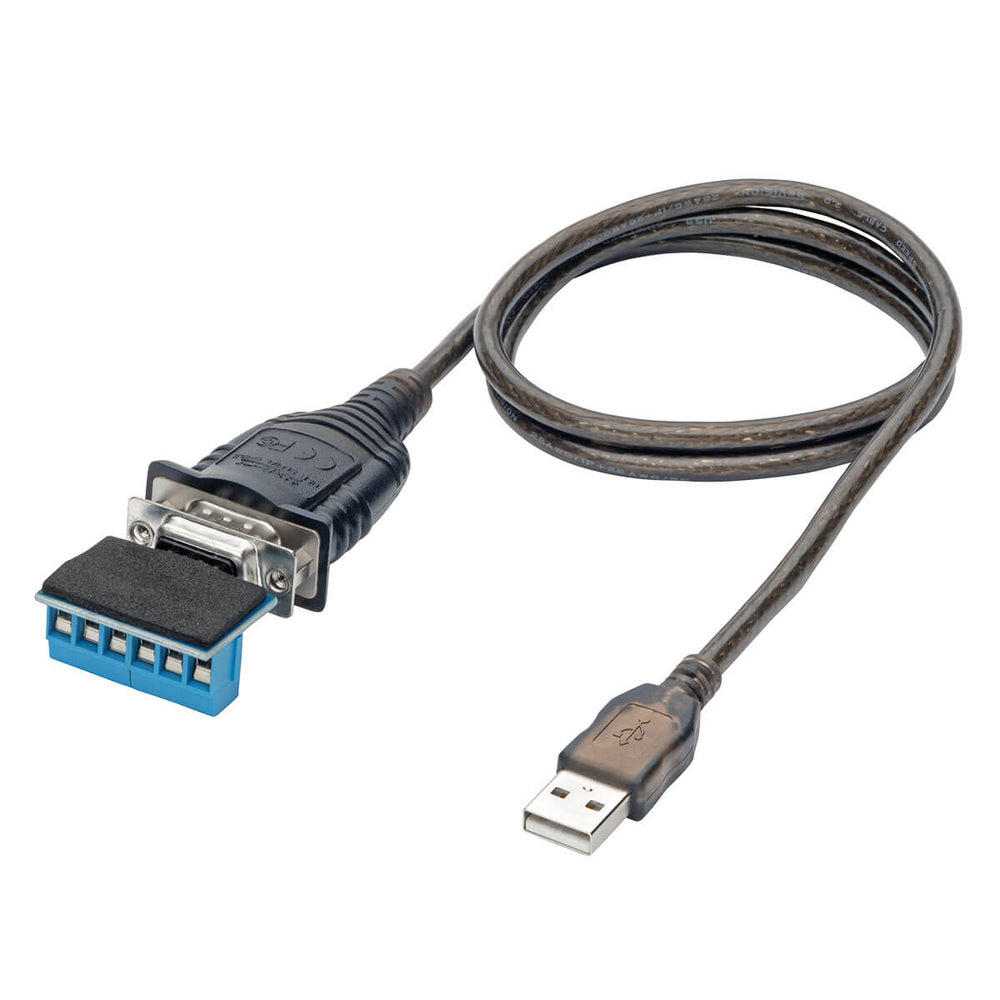

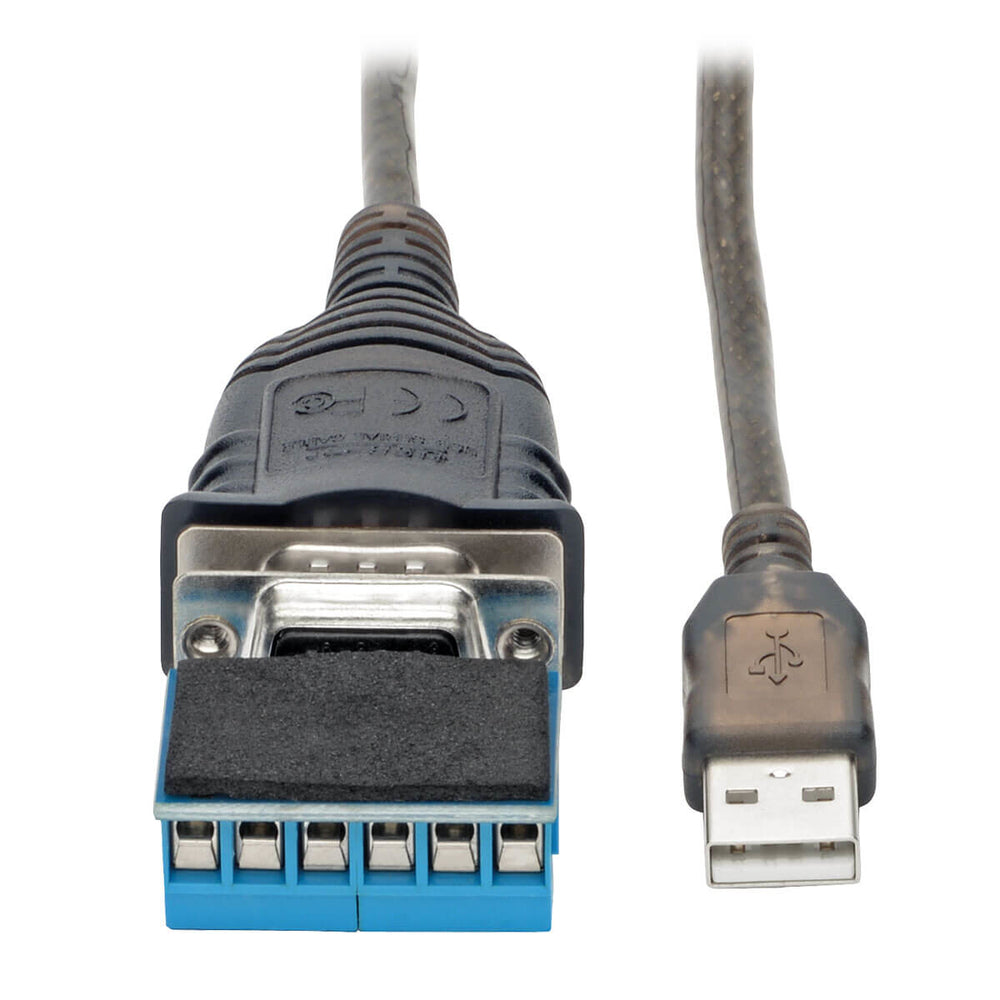

Tripp Lite USB Serial Cable Adapter with FTDI and Retention for RS422/RS485

The Tripp Lite U209-30N-IND USB to RS485 adapter cable is the perfect solution for connecting your computer to serial devices such as printers, routers, and surveillance cameras. With data transfer speeds up to 230 Kbps, this cable is almost twice as fast as a built-in serial port. The cable is USB-powered, so no bulky or obtrusive external power supply is required. Double shielding protects against EMI/RFI line noise that can distort or destroy data.

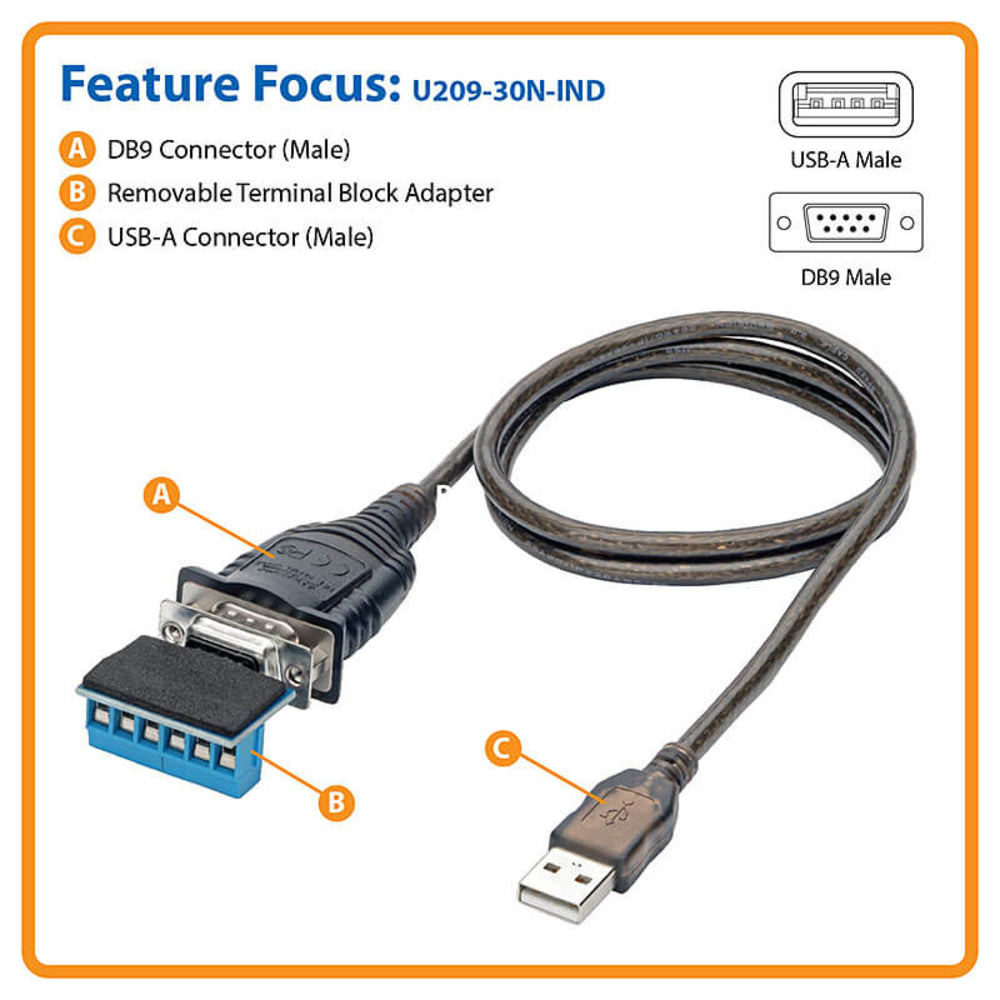

Features

• Cable length: 0.76m (30 inches)
• Connector 1: USB A (MALE)
• Connector 2: DB9 (MALE)
• Product color: Black
• Certification: CE, FCC, RoHS, REACH, WEEE
• Connector gender: Male connector/Male connector
• Package weight: 80g
• Package depth: 104.9mm
• Package height: 31mm
• Package width: 118.1mm
• Master (outer) case height: 115.1mm
• Master (outer) case width: 329.9mm
• Master (outer) case weight: 1200g
• Master (outer) case length: 134.9mm
• Quantity per master (outer) case: 10

Specifications

• Turns your computer's USB port into an RS422 or RS485 serial port
• No external power source needed
• Supports USB 2.0 specifications
• Data transfer speeds up to 230 Kbps
• Backward compatible with USB 1.1 devices
• Hot-swappable with built-in FTDI chipset
• COM retention feature for convenient reassigning of COM values to ports
• Supports RS485 auto-transceiver turn around with unique featured ATTA hardware
• Remote wake-up and power management

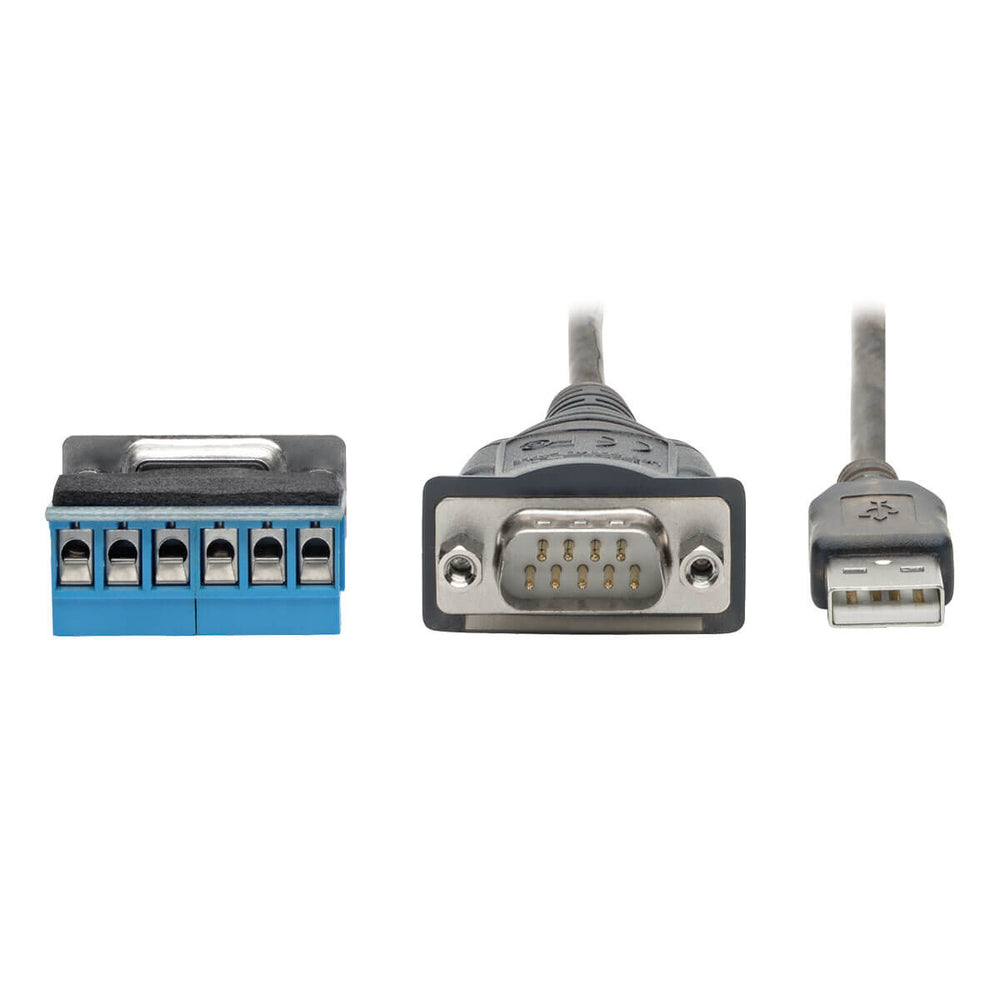

• DB9-to-terminal-block adapter included for making hardwire connections
• Foil and braid shielding helps fight against electromagnetic interference and radio frequency interference (EMI/RFI)
• Auto-sensing feature solves DCE/DTE conflicts without the need for cross-wired serial cables or adapters
• Compatible with Windows, Mac, and Linux
• 3-year warranty

Typical Application

Connect and control serial-based printers, scanners, surveillance cameras, and magnetic card readers. Create messages for digital sign boards with serial ports to avoid the expense of upgrading your sign board.

System Requirements

• Windows, Mac, or Linux
• Computer with an available USB port

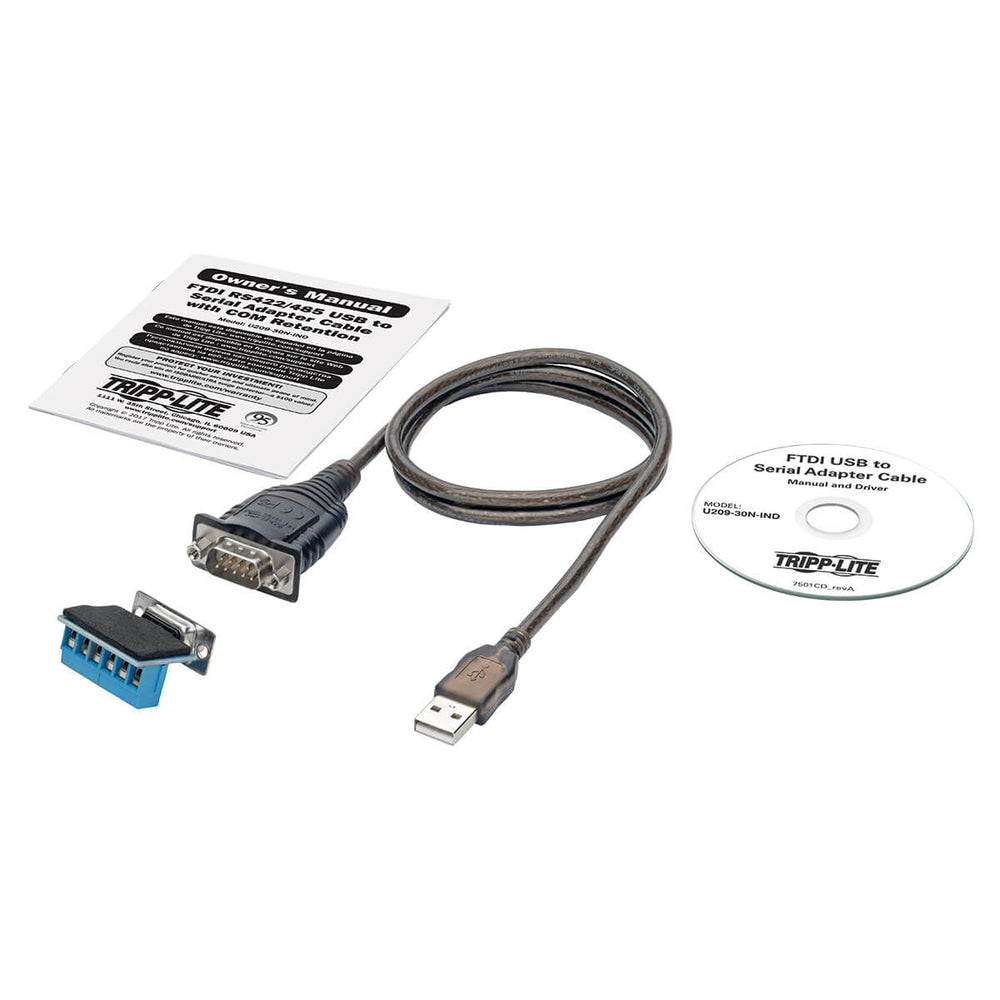

Package Includes

• U209-30N-IND USB to RS485/RS422 FTDI Serial Adapter Cable, 30 in.
• DB9 to terminal block adapter
• Driver CD
• Owner's manual

Learn More

Learn more about USB and RS485/RS422 on Wikipedia.

Specifications

Product: Tripp Lite U209-30N-Ind Rs422 Rs485 Usb Serial Cable Adapter Com Retention Ftdi

Brand: Tripp Lite

Model: U209-30N-IND

Additional Shipping Information:

Shipping Weight: 0.13 lb

Shipping Height: 0.00 in

Shipping Width: 0.00 in

Shipping Length: 0.00 in
