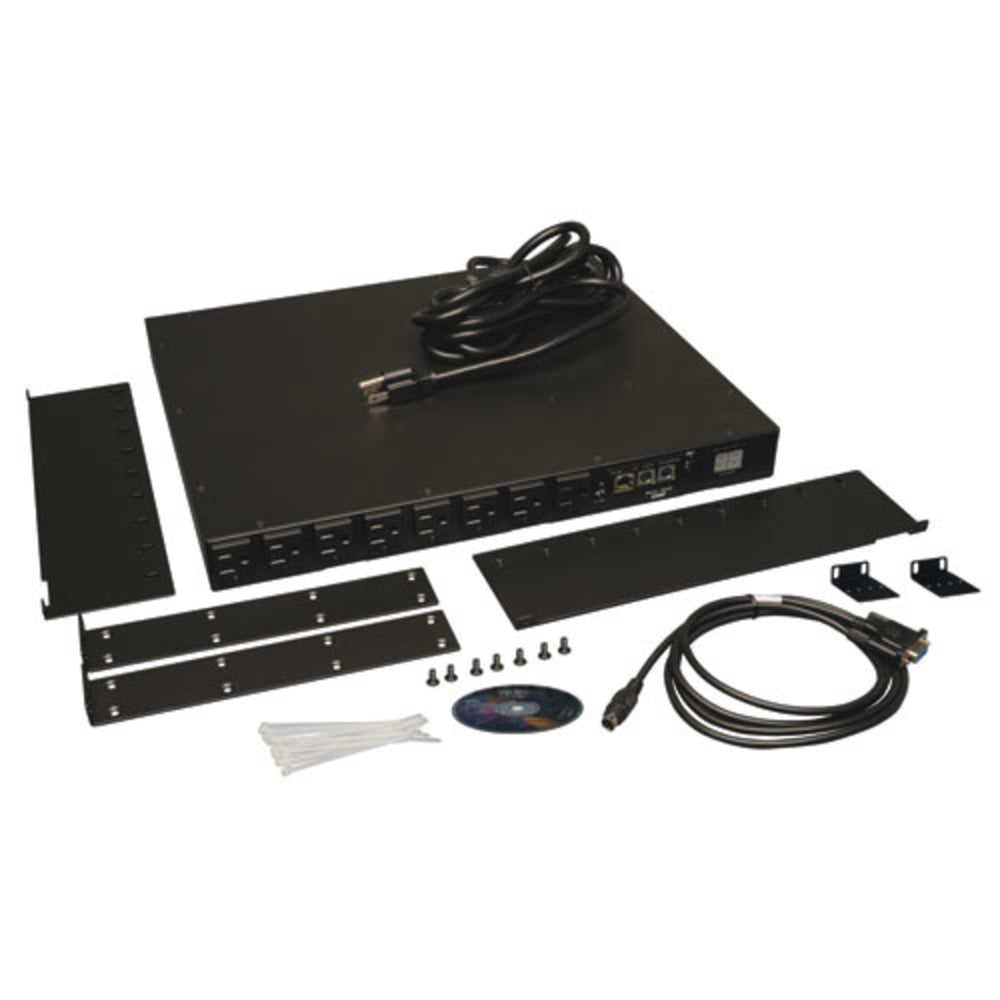

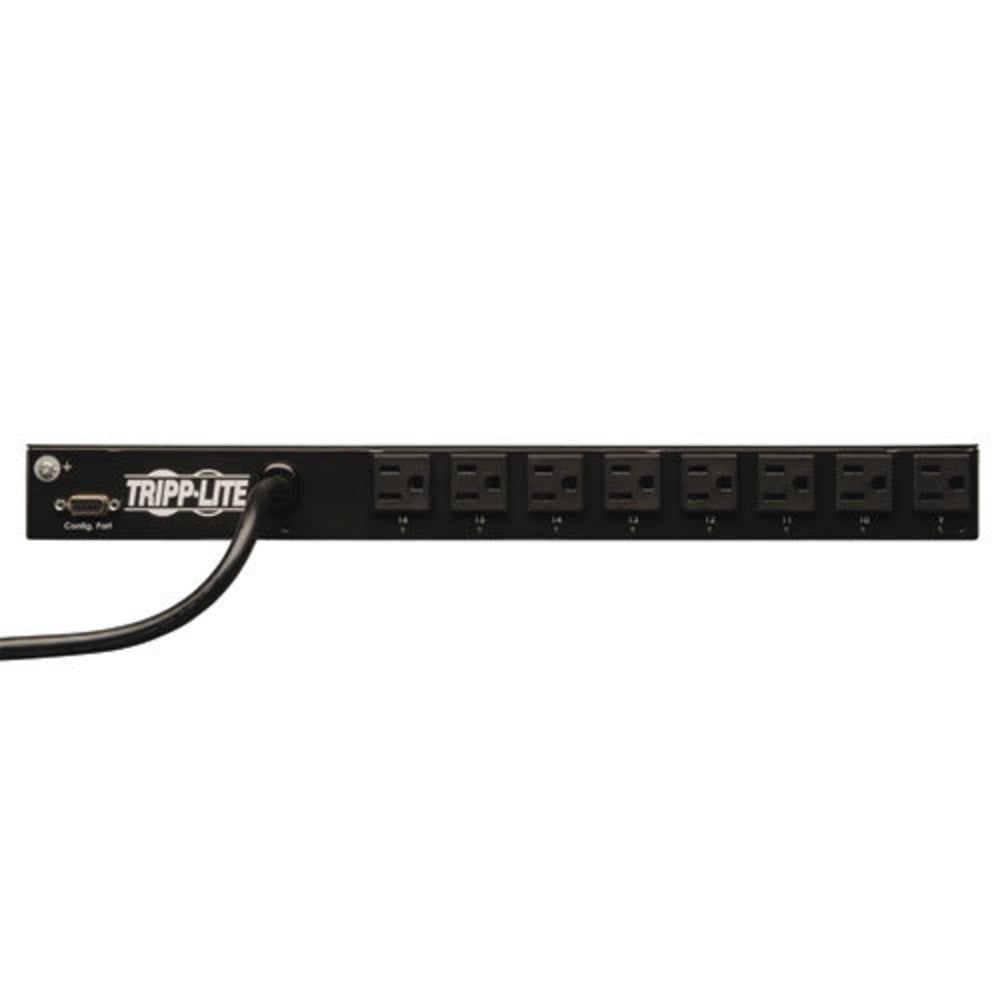

Tripp Lite PDUMH15NET Switched PDU

Power Distribution Unit with Advanced Network Control and Monitoring

The Tripp Lite PDUMH15NET Switched PDU is a 1U horizontal rackmount form factor power distribution unit that offers advanced network control and monitoring. It features 16 switched NEMA 5-15R outlets (8 front / 8 rear) that can be controlled in real-time to remotely reboot unresponsive network hardware or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. The PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.

Key Features:

• Nominal input voltage: 100-127
• Power plug: NEMA 5-15P
• AC input frequency: 50 - 60
• Maximum current: 15
• AC outlets quantity: 16
• AC outlet types: NEMA 5-15R
• Nominal output voltage: 100-127
• Product color: Black
• PDU types: Switched
• Rack capacity: 1U
• Mounting: Horizontal
• Housing material: Metal
• Dimensions (WxDxH): 444 x 394 x 44.4
• Weight: 5700
• Certification: UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico)
• LED indicators: Y
• Cable length: 3.66
• Storage temperature (T-T): -15 - 50
• Operating altitude: 0 - 3000
• RoHS compliance: Y

Additional Features:

• 15A 120V Switched Power Distribution Unit / PDU with built-in web/network interface (Agency derated to 12A continuous)
• Attached NEMA 5-15P 120V single phase input; 12 ft. / 3.6m cord
• Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
• Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
• Network interface provides PDU control and data regarding input voltage and total output load level in amps
• Digital display continuously reports total output load level in amps
• Supports user-specified alarm notification thresholds
• In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors
• DHCP/Manual configuration support
• 10/100 Mbps auto-sensing
• Real-time clock backup maintains the time of day and date even if the PDU is unpowered
• Tiered access privileges allow an administrator and a guest to login via web browser
• Alert notifications via email or SNMP traps offer immediate event notification
• Firmware upgrade ability supports future product enhancements
• Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
• Fully compatible with FREE PowerAlert Network Management System / NMS Software
• 1U horizontal rack installation supported in 2 or 4 post racks with included mounting brackets
• Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wallmount and under-counter mounting
• Included cord retention brackets
• TAA Compliant Version Available - Order Tripp Lite PDUMH15NETAA

Learn More:

• Power Distribution Unit on Wikipedia
• Tripp Lite on Wikipedia

Specifications

Product: Tripp Lite PDUMH15NET Switched PDU 1U 16 Outlet Power Distribution Unit

Brand: Tripp Lite

Model: PDUMH15NET
