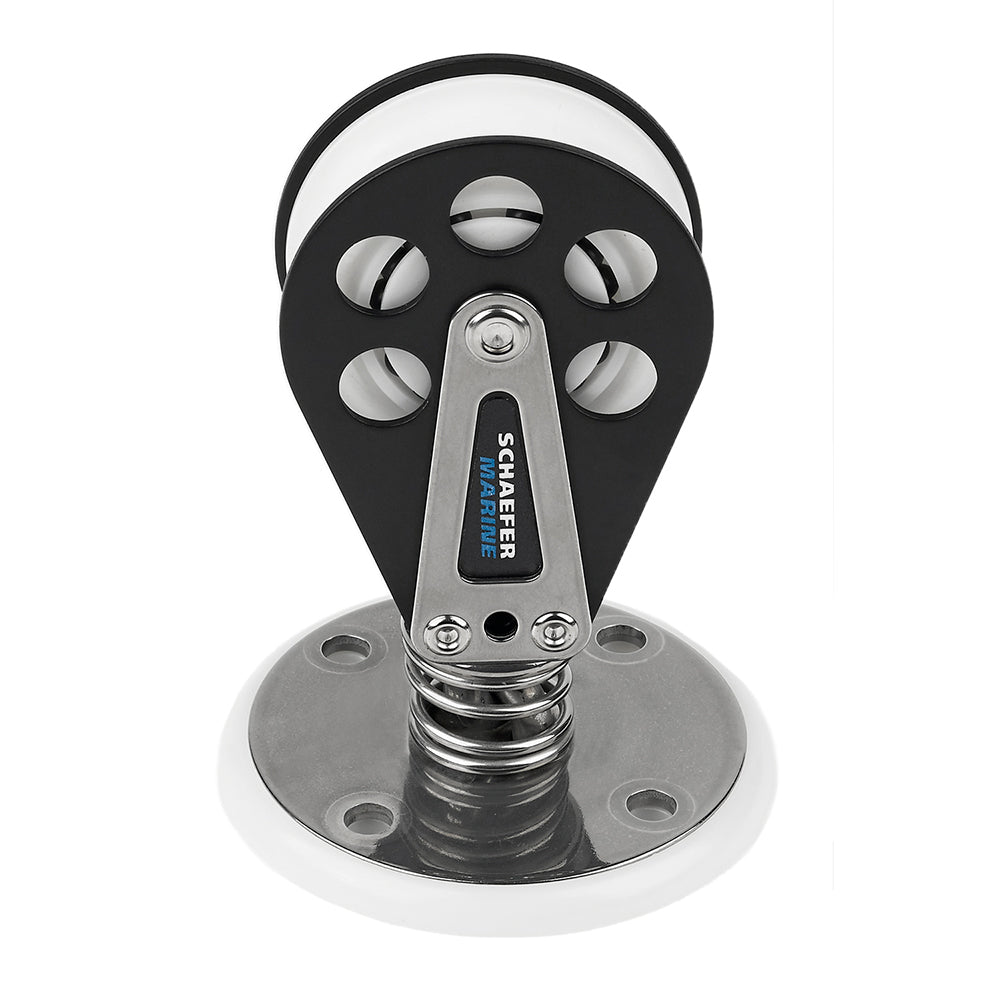

Schaefer 706-62 Marine Swivel Block - 60mm 2-3/8" Stand Up Ball Bearing Series 7

The Schaefer 706-62 Marine Swivel Block is a high-quality and durable block designed for marine applications. This Series 7 Stand Up Ball Bearing Swivel Block features a 2-3/8" (60mm) sheave diameter made from Delrin(tm) ball bearing material, providing low-friction and high strength performance.

With its single stand up ball bearing design, this block is equipped with a stand-up spring that keeps the block upright when not in use. The stainless steel base spreads the load out and can be used with the 97-49 backing plate (sold separately) for added stability.

The Schaefer 706-62 Marine Swivel Block has a maximum line diameter of 1/2" (13mm) and includes a urethane base with a diameter of 3-3/8" (86mm). Its overall height is 4-25/32" (120mm) with a H2 measurement of 2-15/32" (63mm).

Featuring a weight of 11.7 oz (332g) and a safe working load (SWL) of 1700 lbs (771kg), this block is lightweight yet capable of handling heavy loads. It is equipped with four 1/4" RH (6mm) fasteners for secure installation.

Product Features:

• Single stand up ball bearing block
• Stand up spring keeps block upright when not in use
• Stainless steel base spreads load out
• Compatible with 97-49 backing plate (sold separately)
• Delrin(tm) ball bearing sheave for low-friction and high strength
• Maximum line diameter: 1/2" (13mm)
• Urethane base diameter: 3-3/8" (86mm)
• Overall height: 4-25/32" (120mm)
• H2 measurement: 2-15/32" (63mm)
• Four 1/4" RH (6mm) fasteners
• Safe working load (SWL): 1700 lbs (771kg)
• Weight: 11.7 oz (332g)

Learn More

• Marine Block on Wikipedia
• Ball Bearing on Wikipedia

Specifications

Product: Schaefer Marine 706-62 Series 7 Stand Up Ball Bearing Swivel Block 2-3/8" 60Mm

Brand: Schaefer Marine

Model: 706-62
