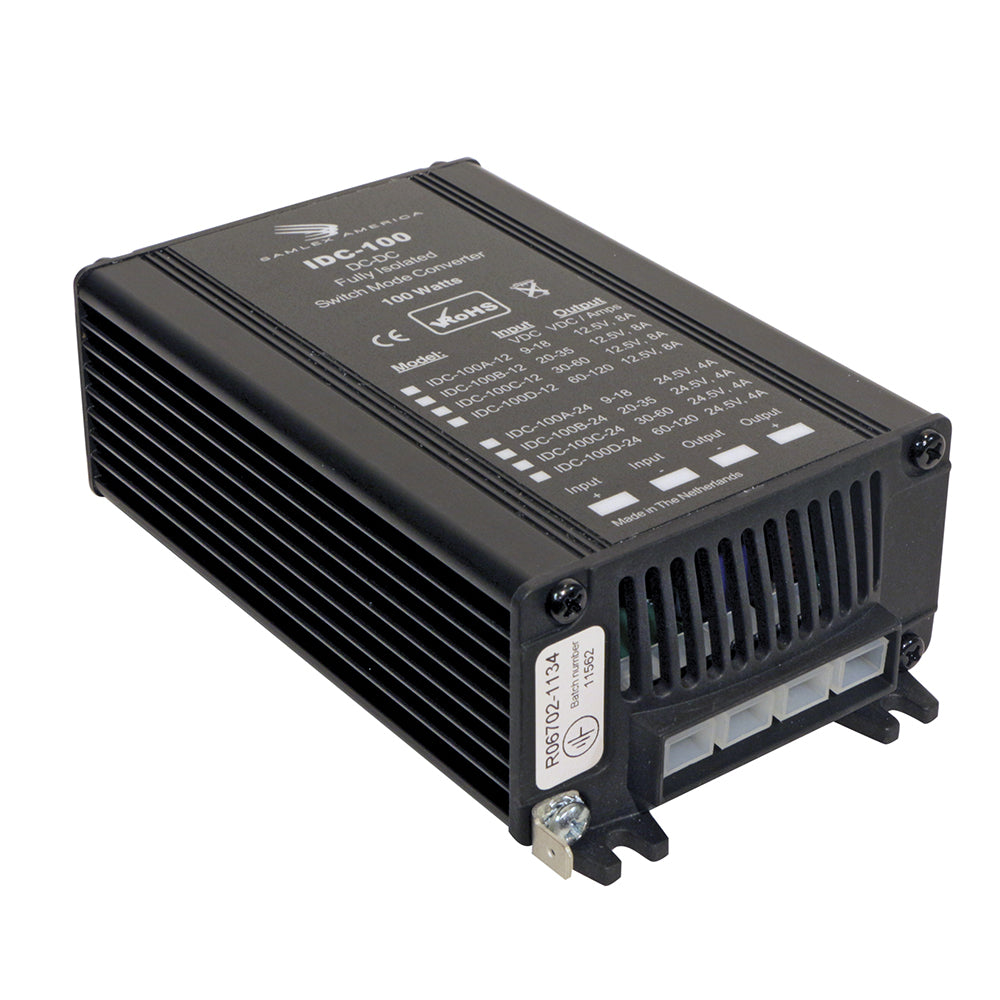

Samlex 100W Isolated DC-DC Converter 8A 30-60V Input - IDC-100C-12

The Samlex IDC-100C-12 is a 100W fully isolated DC-DC converter that provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 30-60 Volts and rated output current of 8 Amps (at 60 Volts input). This isolated DC-DC converter is suitable for applications requiring galvanic isolation between the input and the output. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors and is EMI/EMC compliant conforming to European standards EN50081-1 (for EMI) and EN50082-1 (for EMC).

Features:

• Fully Isolated
• Short Circuit Protected
• Current Limited
• 2 Year Warranty
• CE Approved

Specifications:

• Input: 30-60 VDC
• Output: 12.5 VDC
• Amps: 8 Amps
• Weight: 1.2 (lbs)
• Weight: 0.54 (kg)
• Dimensions: 6 x 3.5 x 1.9 (in)
• Dimensions: 15.2 x 8.9 x 4.8 (cm)
• Safety: CE
• Warranty: 2 Year Limited

Applications:

• Earth moving equipment
• Heavy trucks
• Buses
• Marine vehicles
• CB radios
• 12 Volt lighting systems
• AM/FM sound systems

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Specifications

Product: Samlex America Idc-100C-12 100W Fully Isolated Dc-Dc Converter 8A 30-60V Input

Brand: Samlex America

Model: IDC-100C-12

Additional Shipping Information:

Shipping Weight: 1.50 lb

Shipping Height: 2.00 in

Shipping Width: 4.00 in

Shipping Length: 6.00 in
