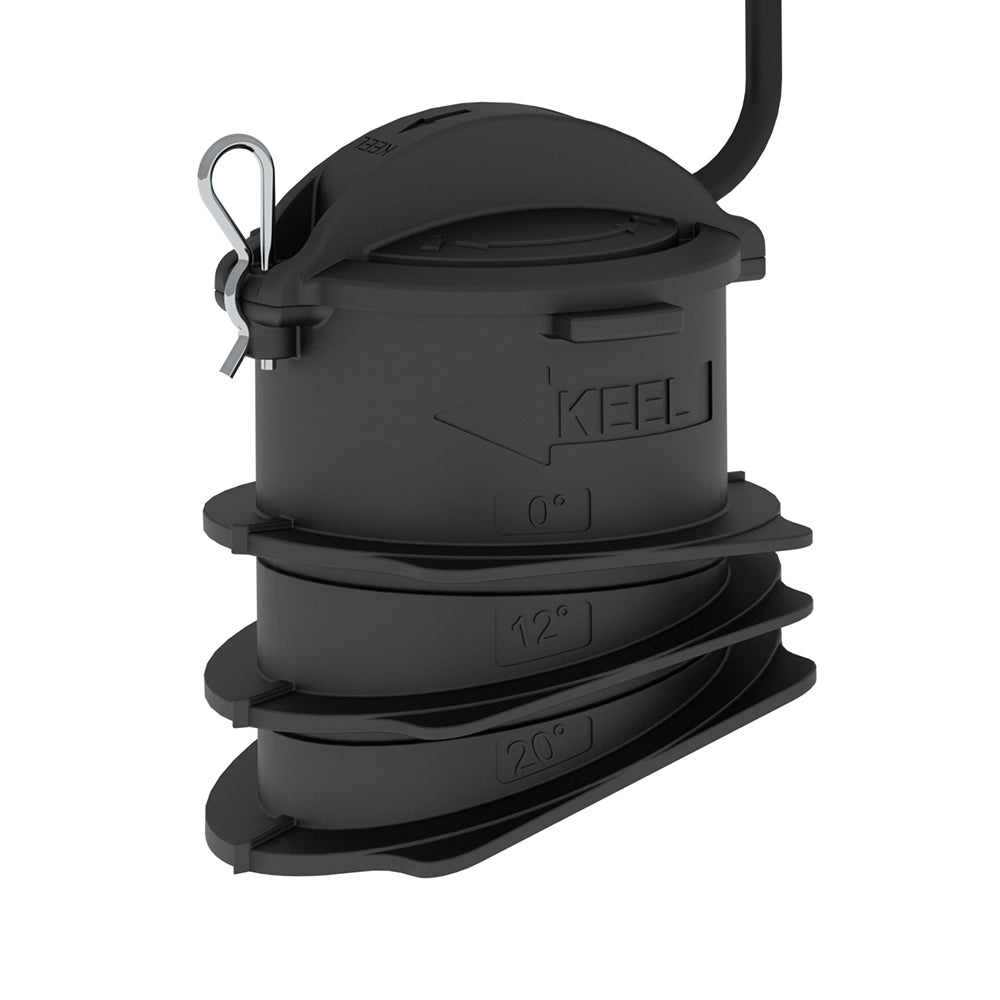

Raymarine A80446 CPT-S 170-230 kHz In-Hull CHIRP Transducer

The Raymarine A80446 CPT-S In-Hull Transducer is a high-performance depth-only transducer designed for non-cored fiberglass hulls. Whether you're sailing, cruising, or operating a small powerboat, this transducer offers a simple and reliable solution for accurate depth recording and fish targeting. It supports CHIRP operation centered on 200kHz, providing exceptional clarity and detail.

The CPT-S In-Hull transducer is compatible with Raymarine Element S and Axiom RV, Axiom Pro, and Element HV systems. To connect to these devices, you will need the A80490 adapter for Axiom RV and the A80559 adapter for Element HV. Its innovative transducer tube housing design allows for easy installation on hulls with deadrise angles ranging from 0&deg to 25&deg.

This transducer transmits in the High CHIRP band, offering reliable depth recording, fish targeting, and bottom density. It is an excellent choice for general navigation and scouting anchoring locations when paired with a Raymarine MFD.

Features:

• Simple-to-install depth-only transducer solution
• Ideal for non-cored fiberglass hulls
• Supports CHIRP operation centered on 200kHz
• Compatible with Element S, Axiom RV, Axiom Pro, and Element HV systems
• Innovative transducer tube housing design for easy installation
• Mounts in hulls ranging from 0&deg to 25&deg deadrise
• High CHIRP band for reliable depth recording, fish targeting, and bottom density
• Designed for glue-in installation on solid fiberglass hulls
• Depth range of up to 600 feet
• Wide 25&deg cone angle
• 6-meter cable length for flexible installation

Specifications:

• Sonar Type: CHIRP
• Frequency: High CHIRP 170 — 230 kHz
• Hull compatibility: Solid, non-cored fiberglass hull
• Deadrise Adjustments: 0&deg, 12&deg, or 20&deg
• Depth Range: Up to 600 feet
• Cone Angle: 25&deg
• Cable Length: 6 meters

Learn More:

• CHIRP on Wikipedia
• Raymarine on Wikipedia

Specifications

Product: Raymarine A80446 Cpt-S In-Hull Chirp Transducer 170-230 Khz

Brand: RAYMARINE

Model: A80691

Additional Shipping Information:

Shipping Weight: 1.30 lb

Shipping Height: 4.00 in

Shipping Width: 7.00 in

Shipping Length: 12.00 in
