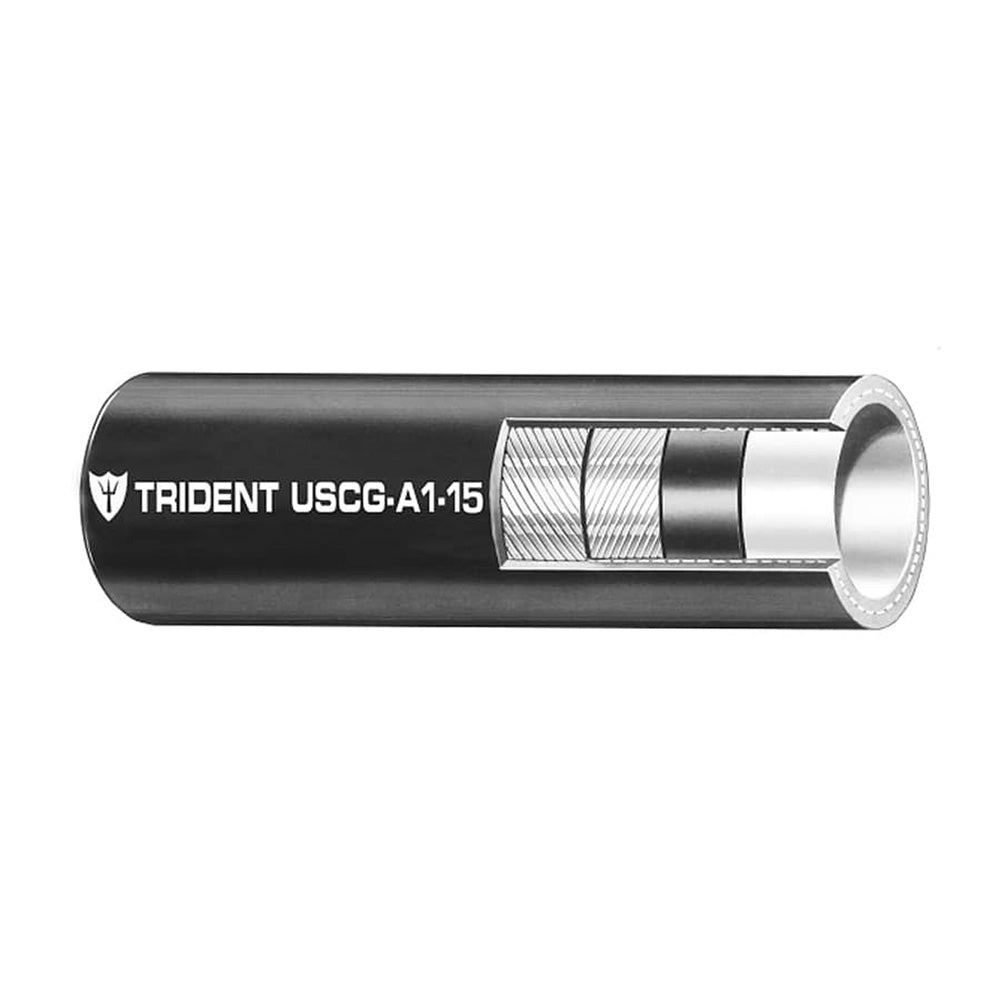

TYPE A1-15 AND A1-10 BARRIER LINED FUEL HOSE (TRIDENT HOSE)

Introducing the Trident Barrier Lined A1-15 and A1-10 Fuel Hose, a high-quality fuel line hose designed to provide exceptional performance and reliability. This fuel hose is suitable for various applications, including marine fuel distribution, return, vent, and transfer. It is compatible with a wide range of fuels, including gasoline, ethanol blends up to 85%, diesel, and bio-diesel blends up to B100.

The Trident Barrier Lined A1-15 and A1-10 Fuel Hose is built with a unique "Barrier Liner" on the inside surface of the tube, ensuring that fuel is not in direct contact with the rubber. This innovative design provides extraordinary resistance to fuel permeation, aging, as well as fire, heat, cold, and ozone. With its exceptional bend-ability, this fuel hose offers easy installation and flexibility.

Features:

• Provides extraordinary resistance to fuel permeation, aging, fire, heat, cold, and ozone
• Excellent bend-ability for easy installation
• NMMA Type Accepted & CE certified for superior quality

Construction:

• Tube: Nylon Internal Barrier, NBR (Nitrile Butadiene Rubber)
• Cover: NBR/PVC (Nitrile Butadiene Rubber/Polyvinyl Chloride) Blend
• Reinforcement: Polyester 2 spiral
• Temperature Range: -20&degF to 212&degF (-28&degC to 100&degC)
• Length: 50 ft. (15 m) Boxed

Specifications:

• Inner Diameter: (inch) 5/16" / (mm) 7.92
• Outer Diameter: (inch) 0.611 / (mm) 15.5
• Burst Pressure: (psi) 400 / (mpa) 2.76
• Working Pressure: (psi) 100 / (mpa) 0.69
• Bend Radius: (inch) 1.75" / (mm) 44.5
• Weight: (lb/100 ft.) 13.3 / (kg/m) 0.198
• Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10)

Learn More:

For more information about fuel hoses, please visit the following Wikipedia pages:

• Fuel Hose
• Gasoline
• Ethanol Fuel
• Diesel Fuel
• Biodiesel

Specifications

Product: TYPE A1-15 AND A1-10 BARRIER LINED FUEL HOSE (TRIDENT HOSE)

Brand: Trident Marine

Model: 365-0566

Additional Shipping Information:

Shipping Weight: 7.90 lb

Shipping Height: 3.00 in

Shipping Width: 18.00 in

Shipping Length: 18.00 in
