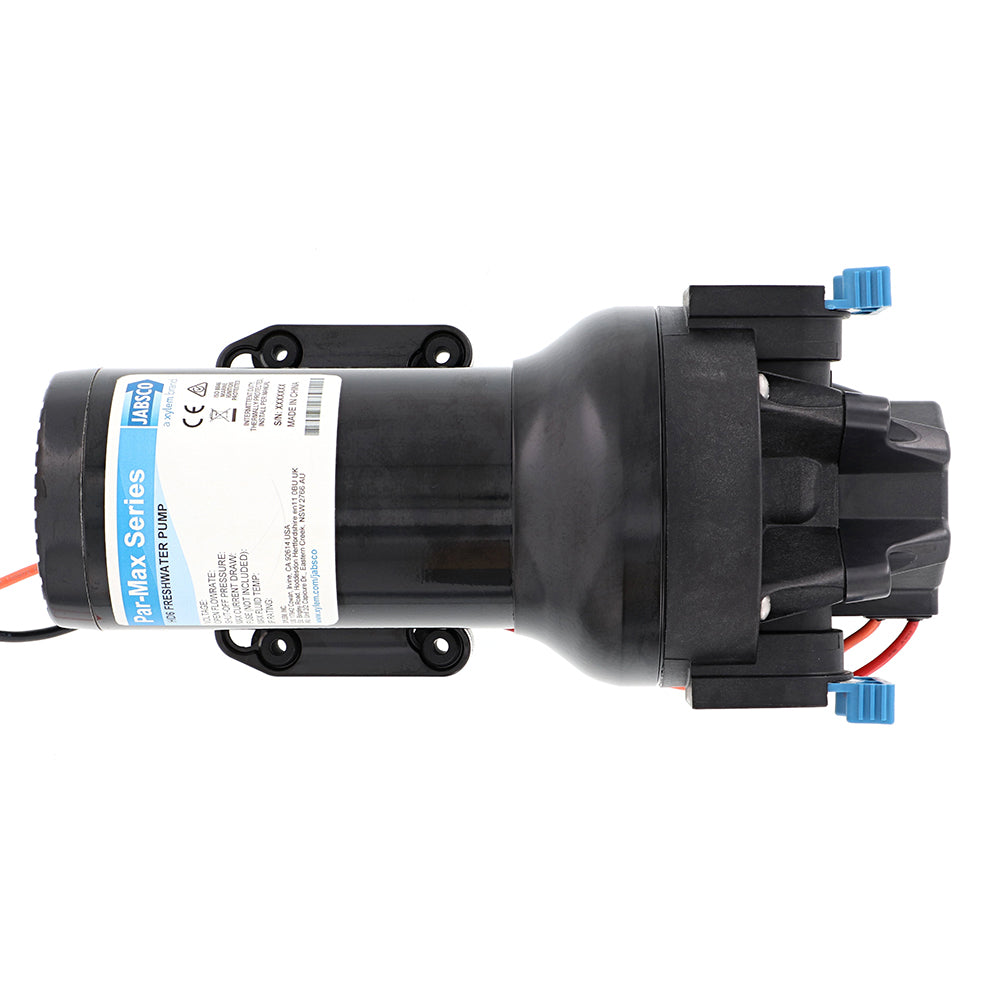

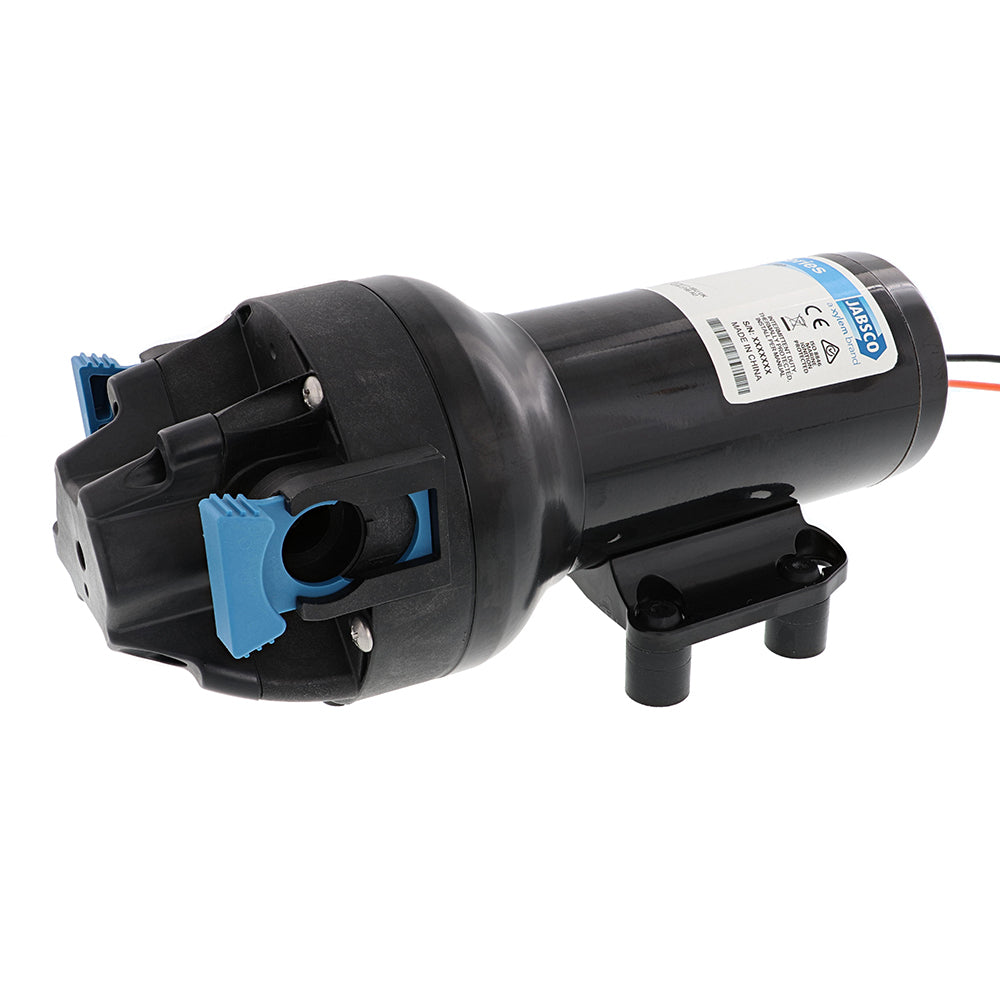

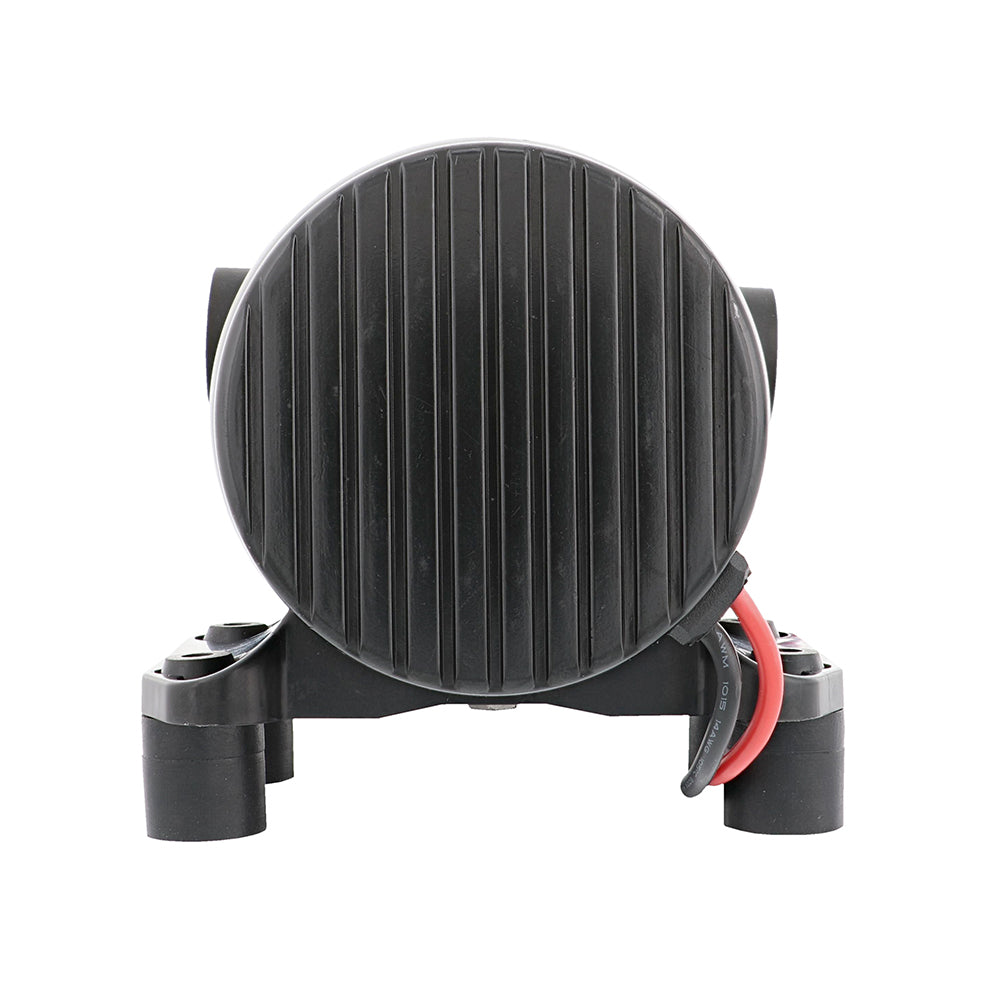

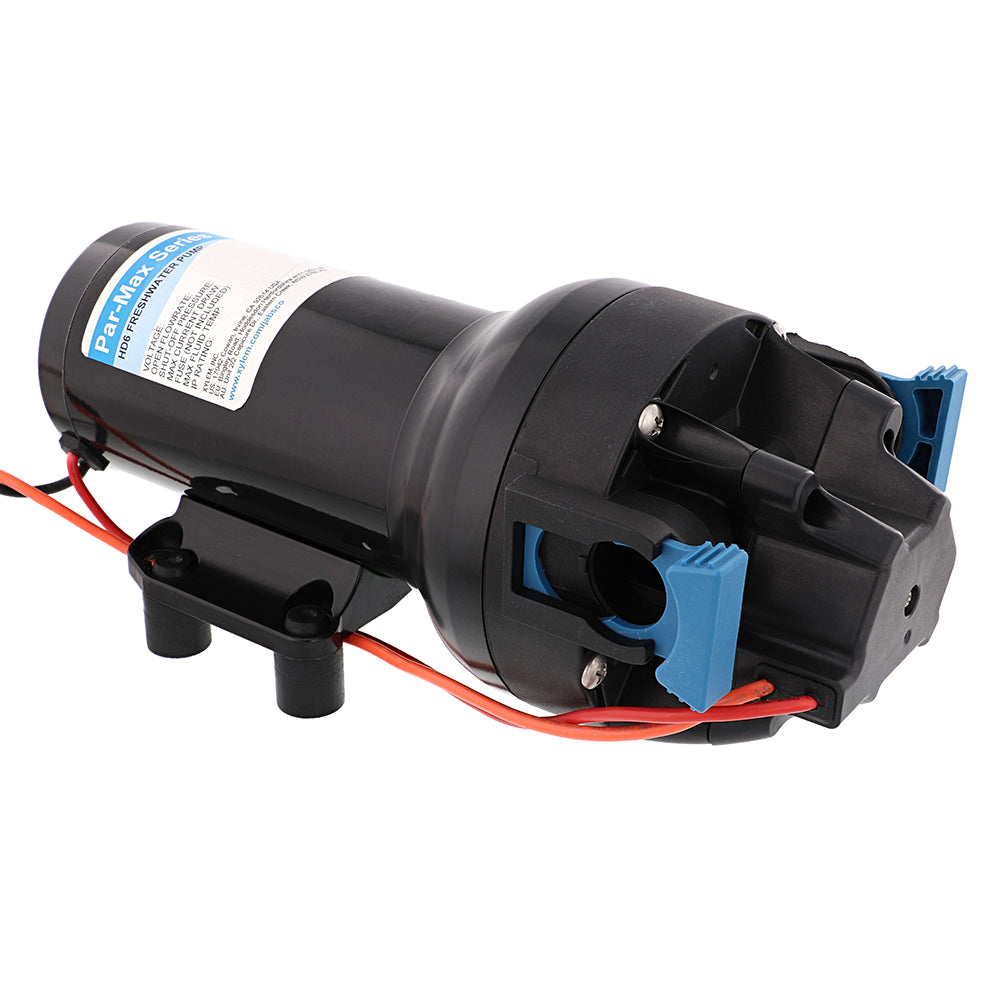

Jabsco Par-Max HD6 Heavy Duty 24V Water Pressure Pump - 6 GPM, 40 PSI (P602J-215S-3A)

The Jabsco Par-Max HD6 Heavy Duty 24V Water Pressure Pump is a high-performance pump that delivers exceptional water pressure with a flow rate of up to 6 gallons per minute (23 liters per minute) and a pressure of up to 40 PSI (4.1 BAR). The pump features co-molded diaphragm technology for long life and durability, along with heavy-duty motors and cast aluminum lower housings that allow for long life, even at high pressures.

The pump is efficient and quiet in operation, and comes equipped with an integrated, sealed pressure switch for on-demand operation. It also features self-priming capability, allowing for installation versatility, and can run dry without damage. The pump is easy to install, service, and maintain, thanks to its quick connect ports and vibration dampening mounting feet.

The Jabsco Par-Max HD6 Heavy Duty 24V Water Pressure Pump is certified by CE, ISO8846, and RCM, and has an ingress protection rating of IPX6. However, it is important to note that this product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE), which is known to the State of California to cause cancer. For more information, please visit the California Proposition 65 website.

Features:

• Co-molded diaphragm technology for long life and durability
• Heavy-duty motors and cast aluminum lower housings for long life, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32&degF - 140&degF (0&degC - 60&degC)
• Dry self-priming capability: 7ft min (2.13m/min)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6

Learn More:

• Water Pump - Wikipedia
• Pressure - Wikipedia

Specifications

Product: Jabsco P602J-215S-3A Par-Max Hd6 Heavy Duty Water Pressure Pump 24V 6 Gpm 40

Brand: Jabsco

Model: P602J-215S-3A

Additional Shipping Information:

Shipping Weight: 9.00 lb

Shipping Height: 6.00 in

Shipping Width: 6.00 in

Shipping Length: 15.00 in
