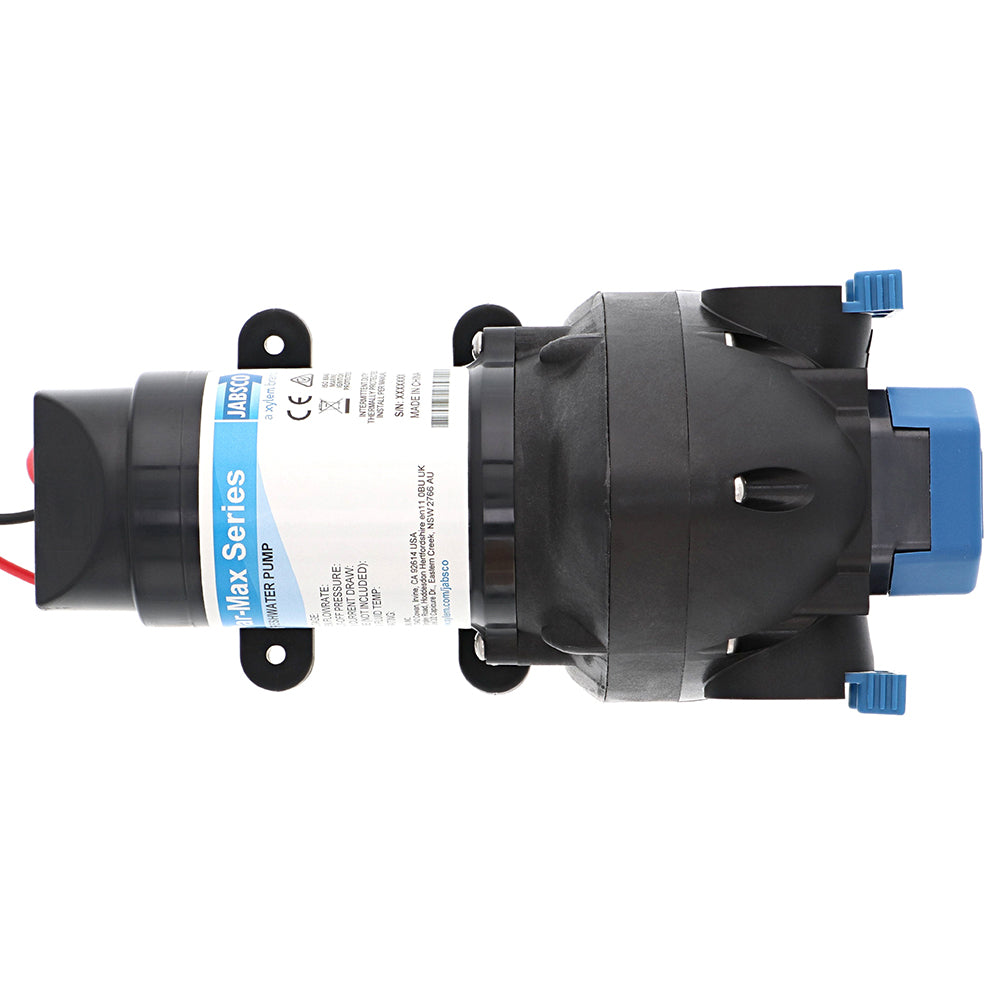

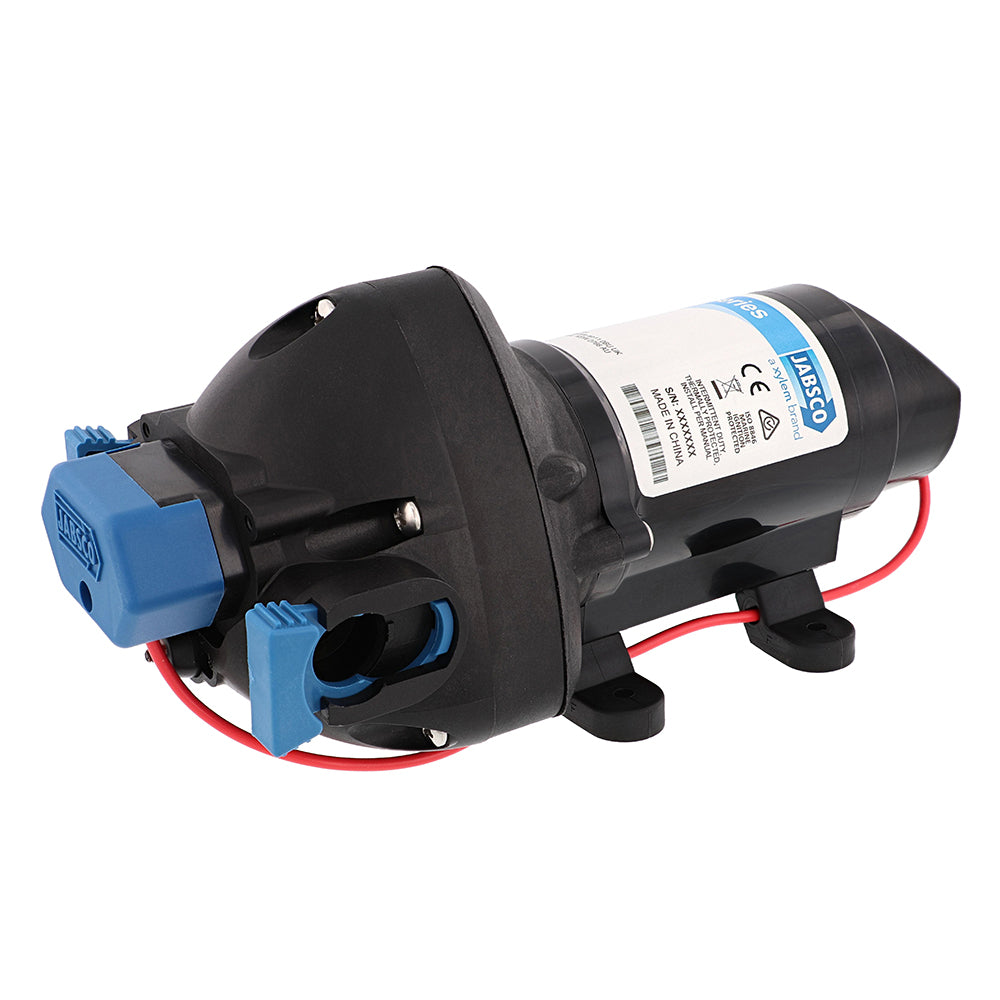

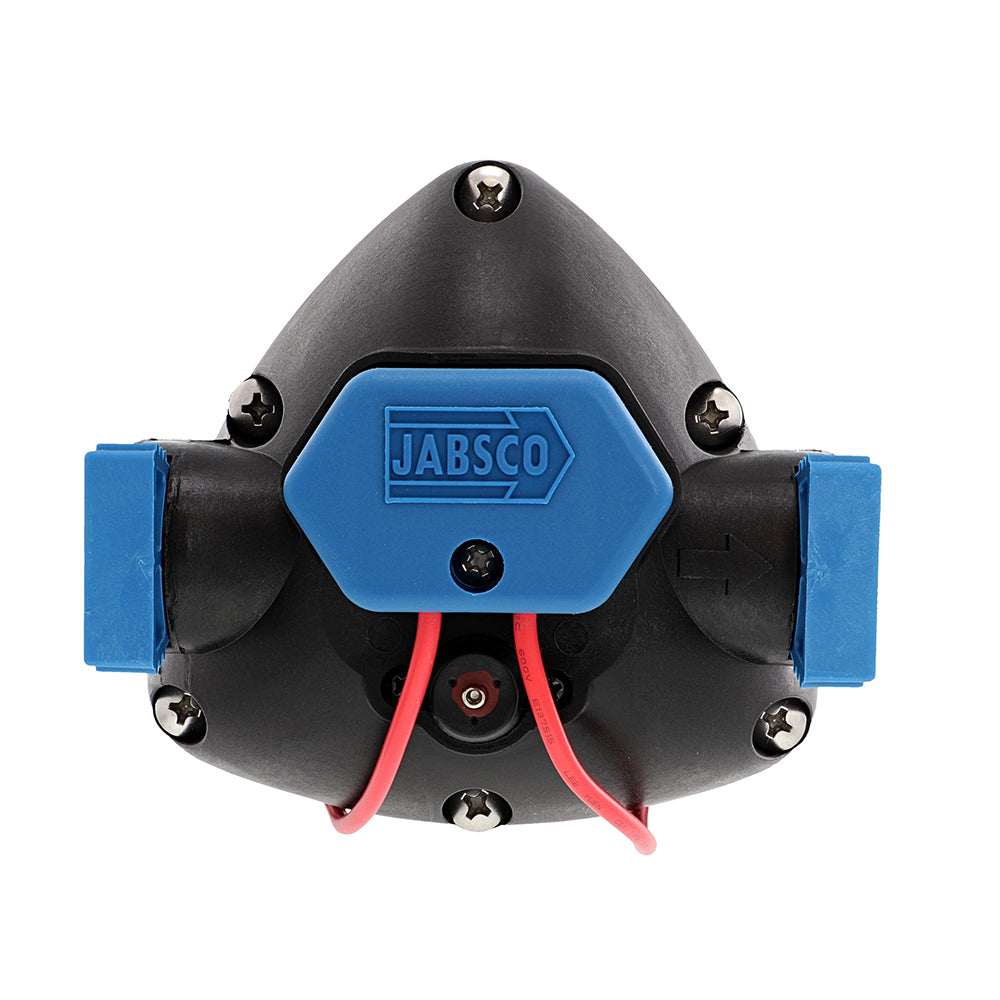

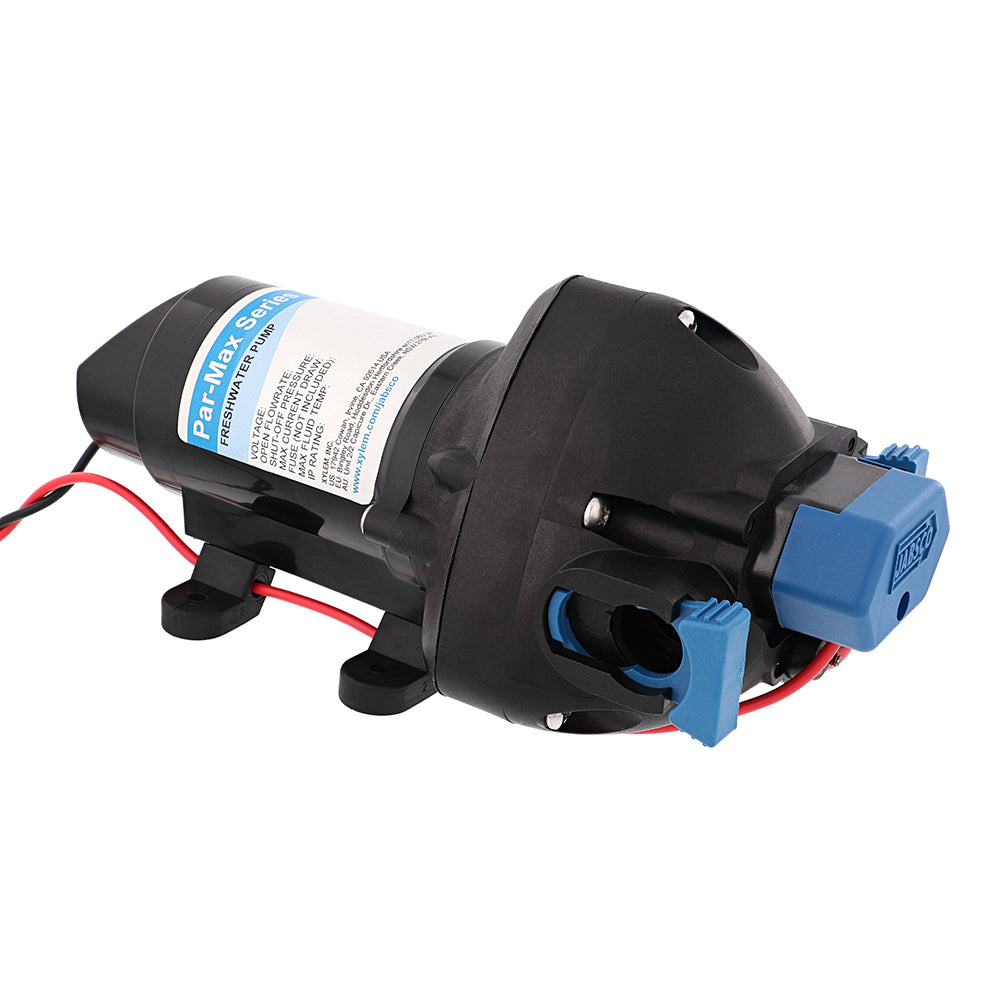

Jabsco Par-Max 3 Water Pressure Pump 24V, 40 PSI, 31395-4024 - 3A GPM

The Jabsco Par-Max 3 Water Pressure Pump is a reliable and efficient pump suitable for a variety of applications, including marine, RV, and agricultural use. With a 24V power supply, this pump delivers a flow rate of 3 gallons per minute (11.4 liters per minute) and a pressure of 40 PSI (2.8 bar). The pump features co-molded diaphragm technology for long life and durability, ensuring it can handle even the toughest conditions.

The HD (Heavy Duty) models include a wider diameter motor with a powder-coated shell, cast aluminum end bells, and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance. Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy-duty motors and cast aluminum lower housings which allow for long life, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber-reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32&degF - 140&degF (0&degC - 60&degC)
• Dry self-priming capability: 7ft min (2.13m/min)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to .

Learn More

• Pressure Pump on Wikipedia
• Flow Rate on Wikipedia
• PSI on Wikipedia

Specifications

Product: Jabsco 31395-4024-3A Par-Max 3 Water Pressure Pump 24V Gpm 40 Psi

Brand: Jabsco

Model: 31395-4024-3A

Additional Shipping Information:

Shipping Weight: 4.90 lb

Shipping Height: 6.00 in

Shipping Width: 6.00 in

Shipping Length: 16.00 in
