Garmin 010-11939-21 Chirp-M 1Kw Br Lp 12 Tilt 8 Transducer

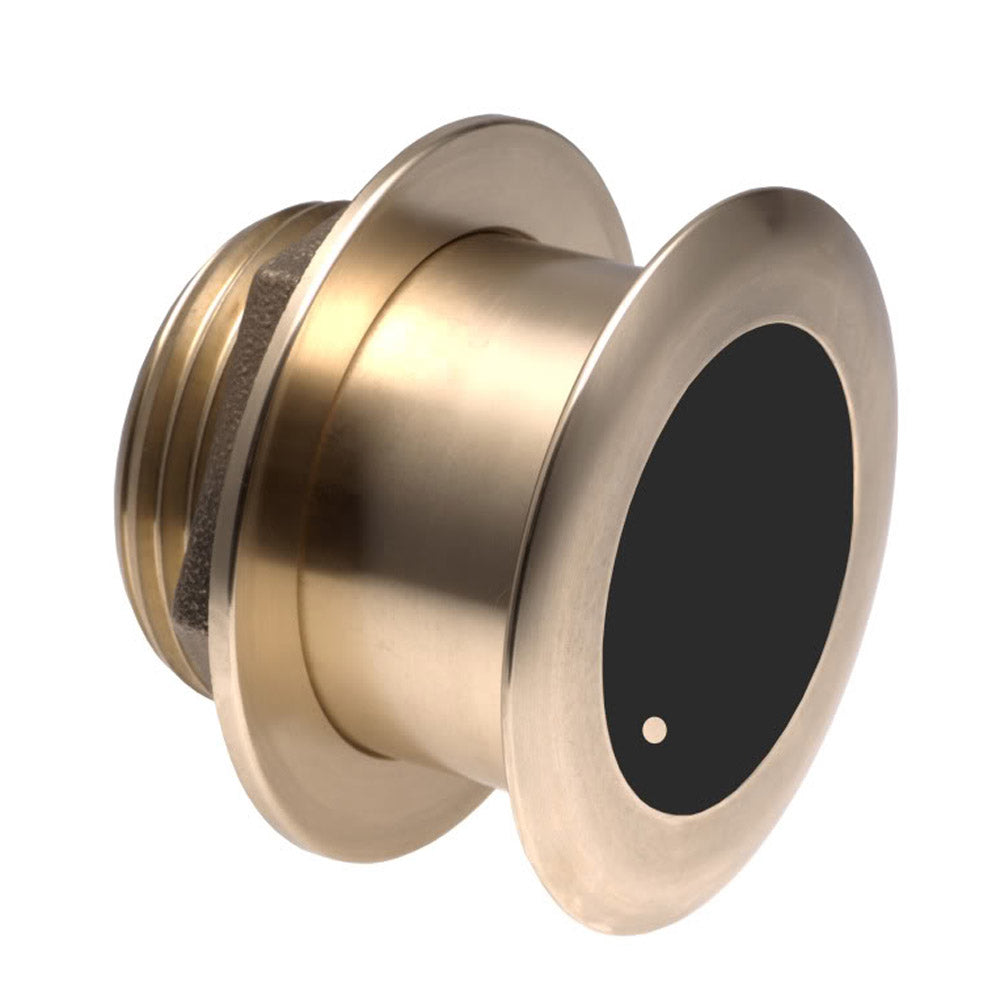

Summary: The Garmin 010-11939-21 Chirp-M 1Kw Br Lp 12 Tilt 8 Transducer is a high-quality and durable thru-hull mount transducer designed for depth and temperature measurements. With its 12-degree tilted element and 8-pin connection, this transducer offers accurate readings and reliable performance. It operates at an 85-135 kHz frequency range and can reach a maximum depth of 1500 ft. The transducer is made of bronze and features a 2-inch shaft, providing excellent durability. It comes with a 39 feet cable, a temperature sensor, and installation instructions for easy setup and usage.

Product Features:

• Thru-Hull Mount With 12 Degree Tilted Element
• 8 Pin Connector
• Maximum Depth: 1500 Ft
• Operating Frequency: 85-135 kHz
• Deadrise: 8 To 16 Degrees
• Power Output: 1000 Watts
• Cable Length: 39 Feet
• Includes Temperature Sensor
• 2 Inch Shaft
• Installation Instructions Included
• Beamwidth: 11/16 Degrees
• Material: Bronze
• For Depth And Temperature Measurements

Specifications:

• Mount Type: Thru-Hull
• Tilted Element Angle: 12 Degrees
• Connector Type: 8 Pin
• Maximum Depth: 1500 Ft
• Operating Frequency: 85-135 kHz
• Deadrise: 8 To 16 Degrees
• Power Output: 1000 Watts
• Cable Length: 39 Feet
• Temperature Sensor: Included
• Shaft Size: 2 Inches
• Installation Instructions: Included
• Beamwidth: 11/16 Degrees
• Material: Bronze
• Measurement Type: Depth and Temperature

Learn More:

• Transducer on Wikipedia
• Depth Sounder on Wikipedia

Specifications

Product: GARMIN ELEC. 010-11939-21 Xdcr Chirp-M 1Kw Br Lp 12 Tilt 8

Brand: Garmin

Model: 010-11939-21

Additional Shipping Information:

Shipping Weight: 11.35 lb

Shipping Height: 8.00 in

Shipping Width: 11.00 in

Shipping Length: 12.00 in
