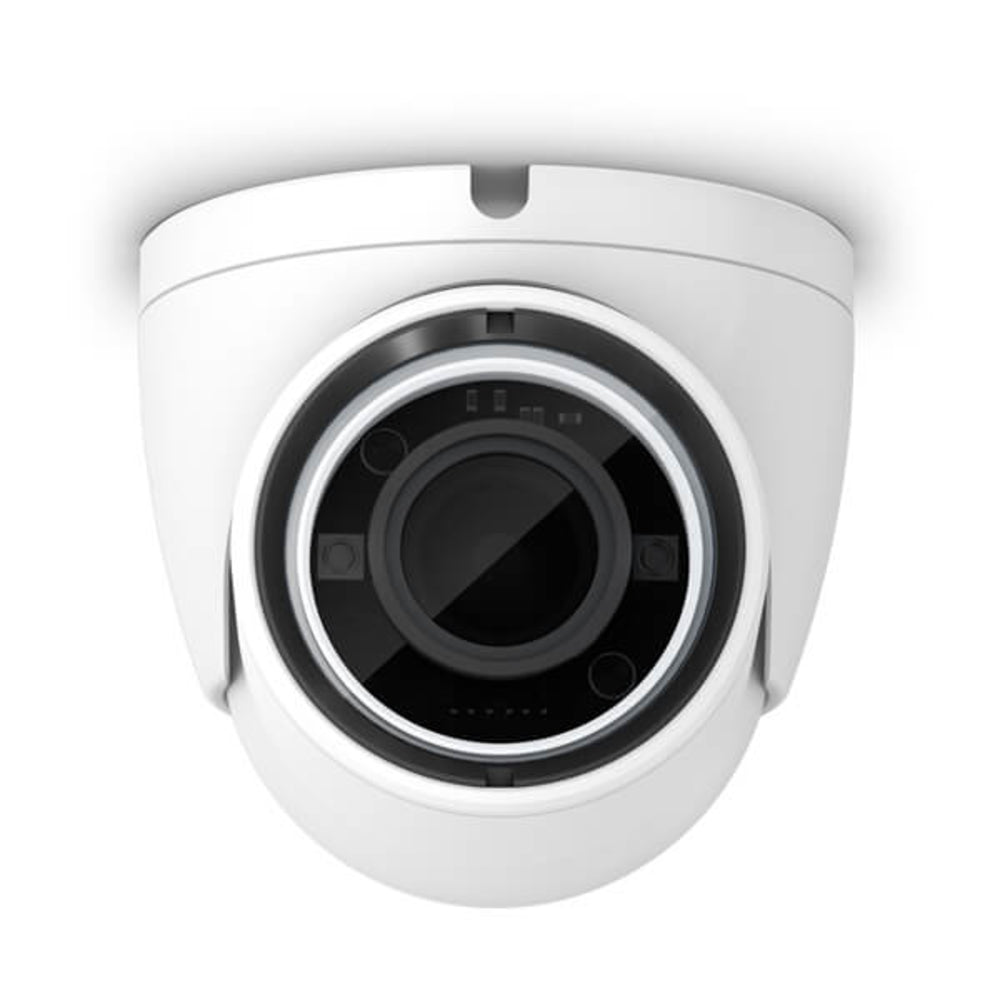

Garmin GC 14 Marine Camera 010-02667-00 - Analog Electronic

The Garmin GC 14 marine camera is a discreet and high-quality analog camera that is perfect for use both above and below decks. It delivers excellent quality images that can be viewed via onboard TVs, video monitors, or compatible chartplotters that support video input. With the ability to view on one chartplotter or across multiple networked compatible chartplotters, the GC 14 is a versatile and convenient tool for monitoring your vessel.

Featuring a convenient reverse-image setting, the GC 14 can help you back out of tight locations, such as a crowded marina. It provides clear images in low light, making it perfect for monitoring your dark engine room. The camera is easy to install, and its small size and rugged weatherproof case allow for flexible placement.

Features

• Discreet and high-quality analog camera
• Excellent quality images, even in low light
• Convenient reverse-image setting for backing out of tight locations
• Easy to install, small size, and rugged weatherproof case for flexible placement

Specifications

• Dimensions: 2.0" x 1.7" (5.1 x 4.4 cm)
• Weight: 6.7 oz (190 g)
• Resolution: PAL: 976(H) x 582(V)
• Viewing angle: DxHxV(&deg) = 95.0&deg x 69.0&deg x 52.0&deg
• Scanning system: PAL: 625 lines 2:1 interlaced
• Sync system: Internal
• Video output: 1.0 Vp-p composite 75 ohms composite
• Low-light vision range: Up to 49' (15 meters)
• S/N ratio: More than 56 db (AGC off)
• Operating temperature: -4&deg to 140&degF (from -20&deg to 60&degC)
• Power consumption: 90 mA (IR off), 170mA (IR on), at 12 Vdc
• Compass safe distance: 10"
• Water rating: IPX7

Learn More

• Garmin on Wikipedia
• Analog television on Wikipedia

Specifications

Product: GARMIN ELEC. 010-02667-00 Gc 14 Marine Camera Analog

Brand: Garmin

Model: 010-02667-00

Additional Shipping Information:

Shipping Weight: 0.55 lb

Shipping Height: 3.00 in

Shipping Width: 4.00 in

Shipping Length: 4.00 in
