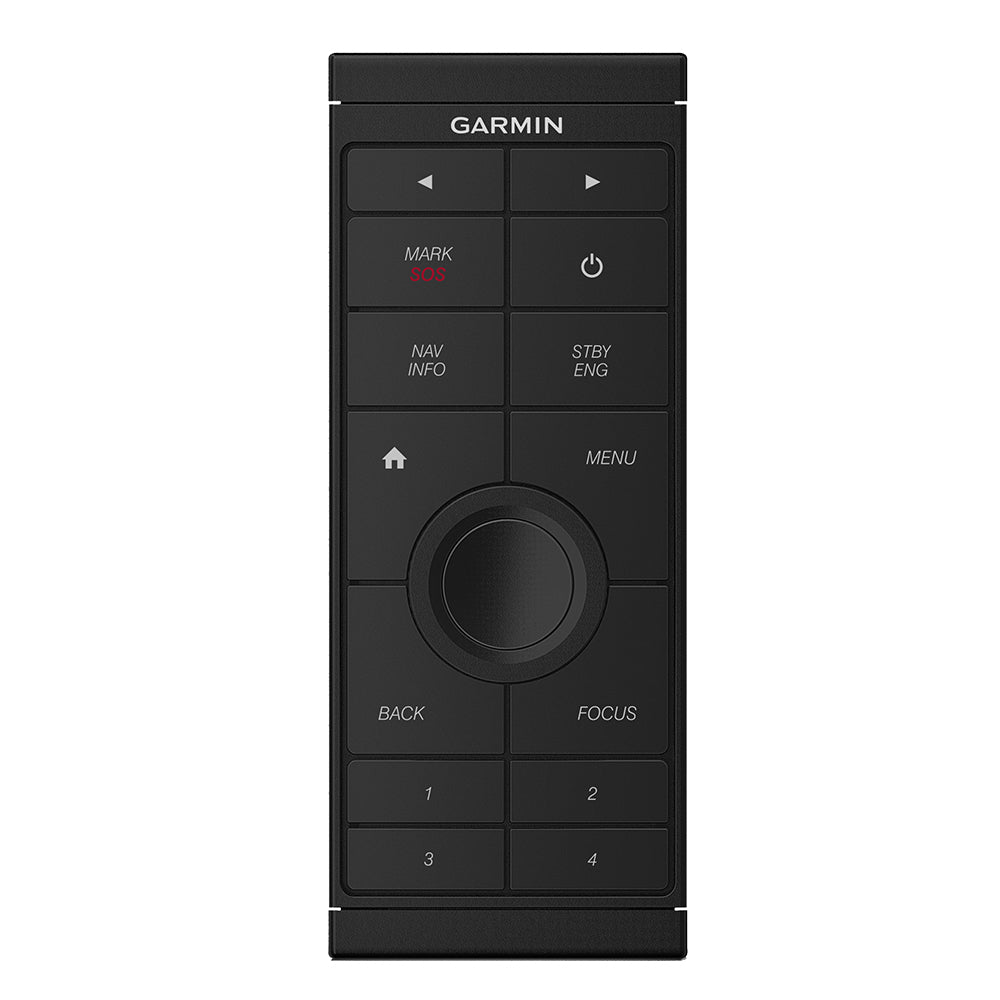

GARMIN GRID 20 MFD Remote Vertical 010-02011-00 - Electronic Marine Display

The GARMIN GRID 20 MFD Remote Vertical 010-02011-00 is an intuitive and easy-to-use remote access and control device for your entire Garmin marine system. With its 360-degree, all-in-one joystick featuring a rotary knob and push-to-select button, it enables effortless chartplotter menu/setting navigation and fine control, even in challenging conditions.

Designed to enhance user convenience, the GRID 20 allows you to designate four favorite keys, which can be used to restore your system to a previously saved configuration. Additionally, it offers a variety of hard keys for quick access to important functions such as left and right screen switches, autopilot standby/engage, and more. For added safety, there is a dedicated SOS key.

Installation options are versatile, as the GRID 20 supports both wired and wireless setups, and can be mounted vertically or horizontally. Its small footprint makes it easy to integrate into a busy helm between displays or even into the arm of the captain's chair.

Features:

• Intuitive remote access and control of your entire Garmin marine system
• 360-degree joystick with a rotary knob and push-to-select button
• Easy chartplotter menu/setting navigation and fine control, even in challenging conditions
• Four favorite keys for quick system configuration restoration
• Various hard keys for quick access to important functions
• Dedicated SOS key for peace of mind
• Wired or wireless installation options
• Vertical or horizontal mounting

Specifications:

• Weight: 179 g
• Temperature range: From -15&degC to 70&degC
• Material: Fully gasketed, high-impact plastic
• Water rating: IPX7
• Compass-safe distance: 114 mm
• Power input: NMEA 2000
• Wired power (with included power cable):
• Input power: 9-32 V DC
• Fuse: 1.0 Amp, Fast Blow
• Maximum power usage at 9 V DC: 1.5 W
• Typical current draw at 12 V DC: 40 mA
• Maximum current draw at 12 V DC: 120 mA
• Dimensions: 14.1 x 5.6 x 6.8 cm

What's in the Box:

• GRID 20
• Mounting hardware
• Power cable
• Documentation

Learn More:

• Garmin on Wikipedia

Specifications

Product: GARMIN ELEC. 010-02011-00 Grid 20 Mfd Remote Vertical

Brand: Garmin

Model: 010-02011-00

Additional Shipping Information:

Shipping Weight: 1.05 lb

Shipping Height: 4.00 in

Shipping Width: 7.00 in

Shipping Length: 7.00 in
