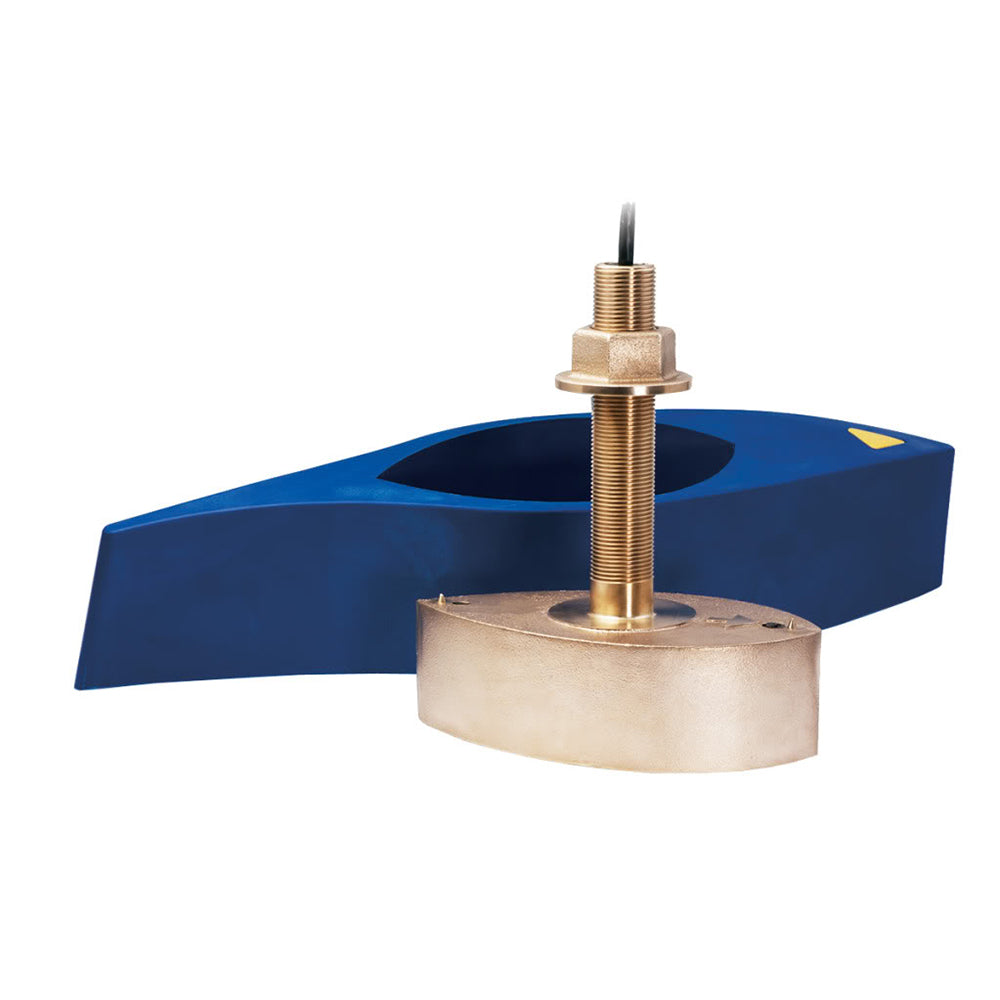

Garmin B275Lh-W Bronze 12-Pin Thru-Hull Transducer (010-12183-20)

Get more coverage under your boat with Airmar's unique wide beam, high frequency Chirp-ready transducers. The Garmin B275Lh-W Bronze Thru-Hull Transducer offers superior resolution and maximum coverage under the boat, making it the ideal choice for both inshore and pelagic fishing. With a depth and fast-response water-temperature sensor, this transducer provides great performance in deep waters as well.

Features:

• Depth and fast-response water-temperature sensor
• 1 kW for great deep water performance from the low frequency
• Low Frequency: 42 kHz to 65 kHz with maximum depth of 914 m (3000')
• 25&deg to 16&deg beamwidth
• High Frequency: 150 kHz to 250 kHz with maximum depth of 152 m (500')
  • 25&deg constant beamwidth
• 123 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• High frequency provides superior shallow water performance, bottom detail, and fish target separation
• High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column
• Bronze transducer housing with high-performance fairing for optimal performance at higher speeds
• Recommended boat size: 8 m (25') and above
• Hull Type: Fiberglass or wood
• Exclusive Xducer IDr technology

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to Proposition 65.

Learn More

For more information about Garmin B275Lh-W Bronze 12-Pin Thru-Hull Transducer, you can visit the following Wikipedia pages:

• Transducer
• Chirp
• Pelagic Fishing
• Fiberglass
• Wood

Specifications

Product: Garmin 010-12183-20 B275Lh-W Bronze Thru-Hull Transducer 12-Pin

Brand: Garmin

Model: 010-12183-20

Additional Shipping Information:

Shipping Weight: 24.15 lb

Shipping Height: 7.00 in

Shipping Width: 19.00 in

Shipping Length: 26.00 in
