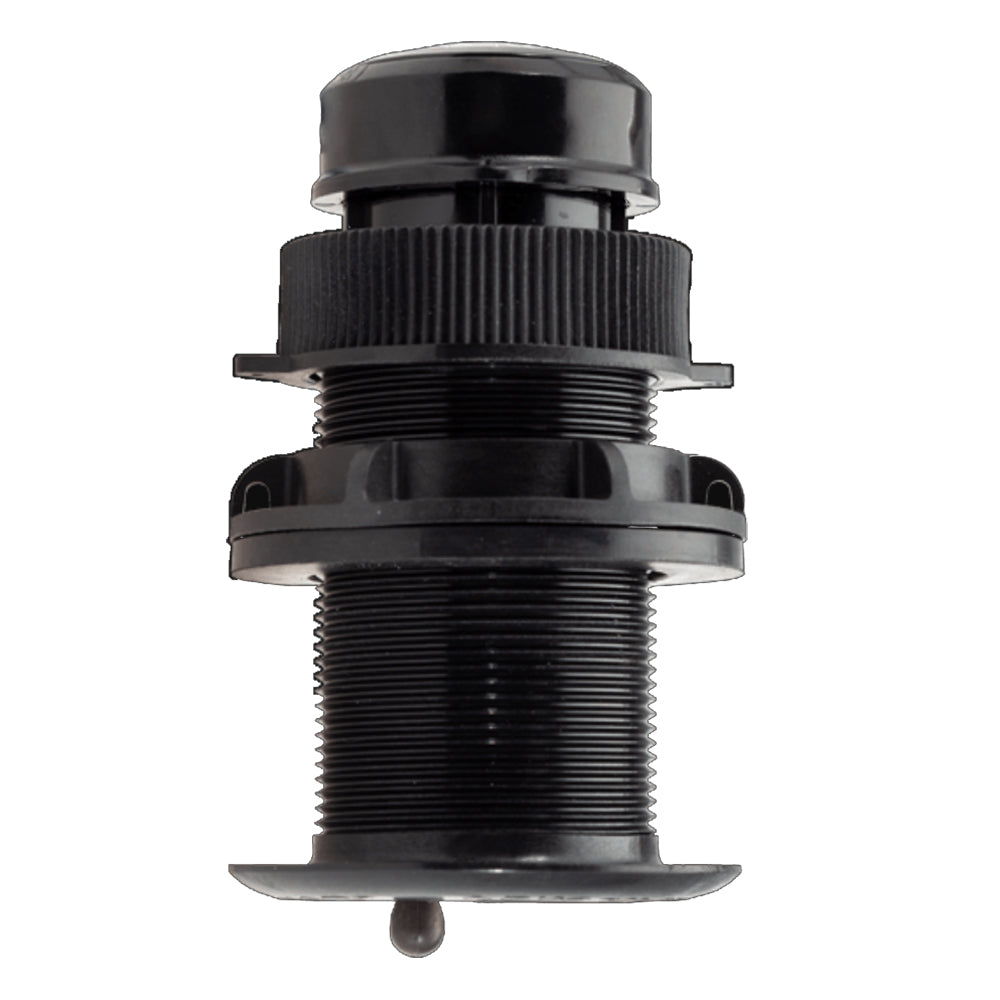

Garmin Airmar DST810 Smart Transducer - Plastic Thru-Hull (010-11051-20)

The Garmin Airmar DST810 Smart Transducer is a plastic thru-hull NMEA 2000 smart transducer that combines precise depth, speed, and temperature signals with attitude sensing for heel/trim and pitch/roll data. This transducer can read depths up to 330 feet and offers fast 5 Hz water speed signal output for smoother visualization on compatible chartplotters or other displays. The wireless BLUETOOTH connectivity makes it easy to manage calibration of sensor data through the Airmar Cast app interface. In addition, the 235 kHz sensor operating frequency helps prevent mutual interference with other echosounder devices on the vessel. The transducer's wide, fan-shaped beamwidth of 10x44 degrees enables it to find the bottom even when installed on steep deadrise hulls or heeling sailboats.

Product Features:

• Precise depth, speed, and temperature signals
• Attitude sensing for heel/trim and pitch/roll data
• Read depths up to 330 feet
• Fast 5 Hz water speed signal output
• Wireless BLUETOOTH connectivity
• 235 kHz sensor operating frequency
• Wide, fan-shaped beamwidth of 10x44 degrees

Specifications:

• Frequency: 235kHz
• Power: 100w
• Beamwidth: 10 x 44 degrees
• Maximum Depth: 300 ft.
• Depth/Speed/Temperature: Depth, Temperature and Speed
• Number of Pins: NMEA 2000
• Supported Deadrise/Transom Angles: 0 to 22 degrees

Learn More:

• NMEA 2000
• BLUETOOTH
• Echosounder

Specifications

Product: Garmin 010-11051-20 Dst810 Airmar Smart Transducer Plastic Thru Hull

Brand: Garmin

Model: 010-11051-20

Additional Shipping Information:

Shipping Weight: 2.25 lb

Shipping Height: 4.00 in

Shipping Width: 8.00 in

Shipping Length: 10.00 in
