Garmin 010-02316-20 GPS 24Xd Antenna Heading Sensor NMEA 2000 Network - Black

Navigate in more locations with expanded GNSS support and accurately pinpoint your heading regardless of speed with the Garmin GPS 24xd NMEA2000 GPS Sensor with Heading Sensor. This black housing GPS sensor is water-resistant (IPX7) to withstand the elements and can be easily installed with multiple mounting options. It is compatible with NMEA 2000 devices, making it a versatile choice for marine navigation.

Product Features:

• Navigate in more locations with expanded GNSS support.
• Get high-sensitivity tracking with fast GPS update rate.
• Accurately pinpoint your heading regardless of speed.
• Water-resistant (IPX7) to withstand the elements.
• Easy installation with multiple mounting options.
• Compatible with NMEA 2000 devices.

The Garmin GPS 24xd provides access to four key global navigation satellite systems (GPS, Galileo, GLONASS, and BeiDou) to more accurately track in challenging conditions than GPS alone. Its multi-band GNSS technology ensures location accuracy to within 1 meter, making it suitable for use with marine multifunction displays, instrument displays, and autopilots.

The magnetic heading sensor of the GPS 24xd provides accuracy to within 3 degrees, stabilizing charts, radar overlay, and MARPA even at slow speeds. With fast 10 Hz position update rates, it delivers high-sensitivity position, velocity, and time data.

The GPS 24xd is equipped with multi-SBAS compatibility, which corrects signal measurement errors and provides information about the accuracy, integrity, continuity, and availability of its signals.

Specifications:

• Cable length: 19 ft 8" (6 m)
• Temperature range: -22&degF to 176&degF (-30&degC to 80&degC)
• Case material: Fully gasketed, high-impact plastic alloy; waterproof to IPX7
• Compass-safe distance: 5.9" (150 mm)
• Power source input: 9-16 Vdc, unregulated
• Input current: 150 mA at 12 Vdc
• NMEA 2000 Load Equivalency Number (LEN): 3 (150 mA)
• Position accuracy, typical marine use: < 50 cm, CEP 50%; < 1.0 meter, 88%

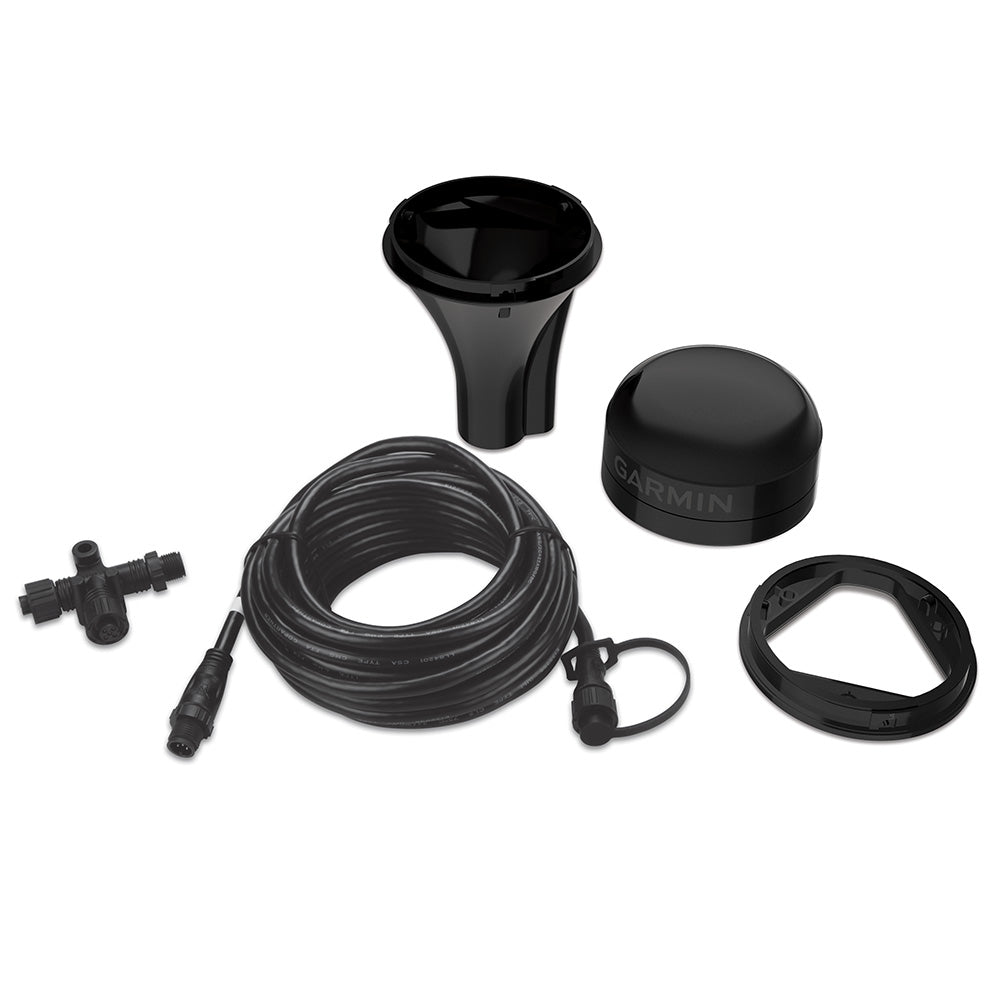

What's in the Box:

• GPS 24xd NMEA 2000 - Black Housing
• Pole mount
• Surface mount
• Under deck mount
• NMEA 2000 backbone/drop cable (6 meters)
• NMEA 2000 T-connector
• Documentation

Learn More:

• Global Positioning System (GPS) on Wikipedia
• Galileo (satellite navigation) on Wikipedia
• GLONASS on Wikipedia
• BeiDou Navigation Satellite System on Wikipedia

Specifications

Product: Garmin 010-02316-20 GPS 24Xd Antenna Heading Sensor NMEA 2000 Network - Black

Brand: Garmin

Model: 010-02316-20

Additional Shipping Information:

Shipping Weight: 2.05 lb

Shipping Height: 7.00 in

Shipping Width: 7.00 in

Shipping Length: 7.00 in
