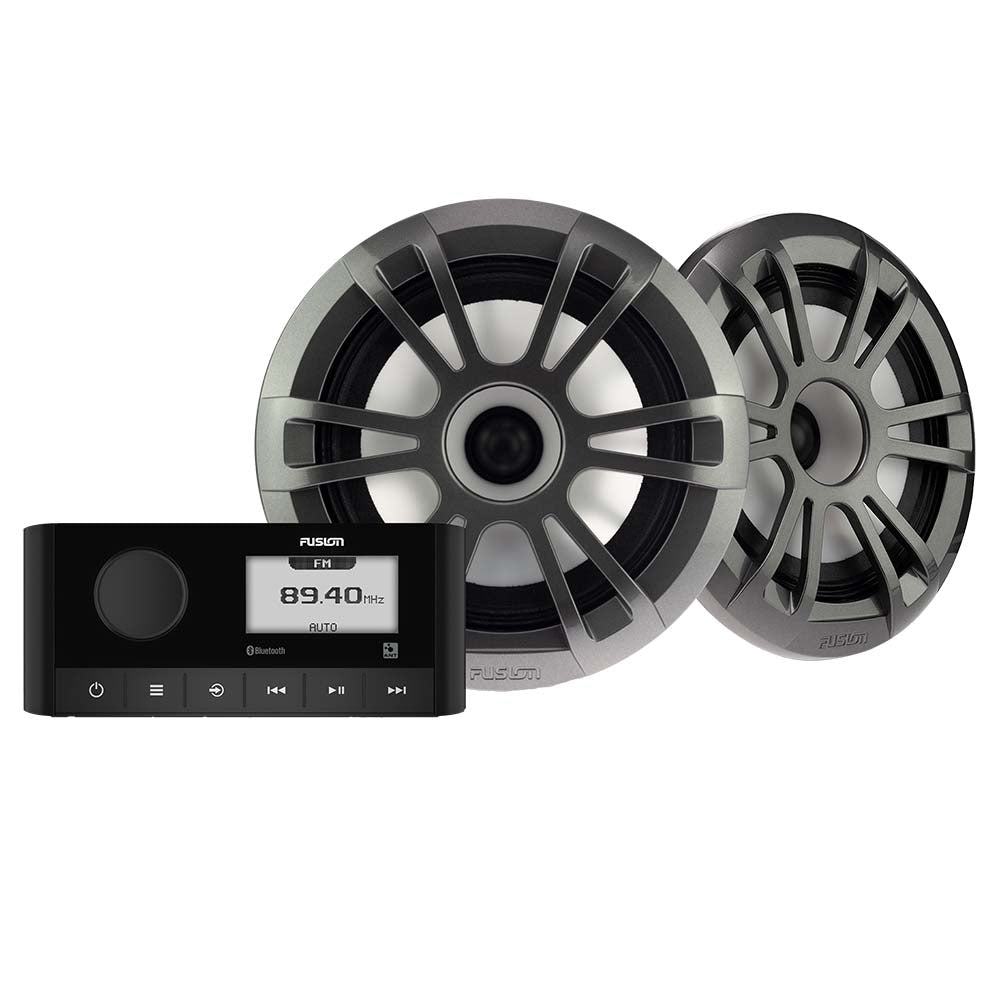

Fusion 010-02405-61 Ms-Ra60 And 6.5" El Sports Speaker Kit Grey Speakers

MS-RA60 & 6.5" EL Sports Speaker Kit - Grey Speakers

Outfit your boat with an exceptional sound system at an outstanding value. A Fusion® MS-RA60 marine stereo and EL Series speaker kit put the perfect soundtrack at your fingertips.

Features:

• Your marine stereo and both speakers come ready to install
• Easily control music from your compatible Garmin MFD1, smart device, or Garmin watch
• Built-in Class D amplifier brings aboard higher efficiency and greater output
• Multi-Zone Technology makes you the captain of two separate audio zones
• Conveniently update software via BLUETOOTH® technology2 from the Fusion-Link app on your compatible smart device
• Grow your audio system with compatible Fusion speakers, subwoofers, and amplifiers

IPX6 & IPX7 Ingress Protection

Designed and engineered for the harsh marine environment, the Fusion stereos have an IPX6 and IPX7-rated water-resistant front panel to perform and last on board.

Modern Design & Aesthetics

Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.

Stereo Specifications:

• Physical Dimensions (H x W x D): 2.68" x 6.18" x 4.06" (68 x 156.9 x 103.2 mm)
• Weight: MS-RA60: 11.1 oz (316 g)
• Water Rating: IPX6 and IPX7 (front panel only, when properly installed)
• Power Input: 10.8-16 VDC
• Operating Temperature Range: 32° to 122° F (0° to 50° C)
• Current (max.): 15 A
• Peak Power: MS-RA210: 200 W
• Rated Power Output (4 ohm): 22 W RMS x 4 at 14.4 V input < 10% THD
• Multi-Zone Technology: 2 zones
• 4 speaker connections (2 zones amplified)
• Speaker: 4 speaker connections (2 zones amplified)
• Subwoofer Out: Zone 1 (requires external amplification)

Speaker Specifications:

• Physical Dimensions (Diameter x Depth): 6.93” x 2.32” (176 x 59 mm)
• Water Rating: IP65
• Speaker Size: 6.5"
• Peak Power (watts): 80 W
• RMS Power (watts): 20 W
• Sensitivity (1 watt/1 meter): 88 dB
• Frequency Response: 45 Hz-16 kHz
• Operating Temperature Range: 32° to 122° F (0° to 50° C)
• Cone Material: Polypropylene cone with cloth surround
• Mounting Diameter Clearance: 5.12" (130 mm)
• Mounting Depth Clearance: 1.69" (43 mm)
• Speaker Color (2): Gray

In the Box:

• MS-RA60 marine stereo
• One pair of EL Series classic white marine speakers
• AM/FM stealth antenna
• Two 19 ft (6 meters) speaker wires
• Dust cover
• Wiring harnesses and mounting accessories
• Mounting gasket
• Four 6-gauge, self-tapping screws
• Two screw covers
• Power and speaker wiring harness
• Auxiliary-in, line-out, and subwoofer-out wiring harnesses
• 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”)) Designed and made in the U.S.A.

Learn More

Fusion Marine Entertainment Wikipedia

Marine Stereo Wikipedia

Specifications

Product: Fusion 010-02405-61 Ms-Ra60 And 6.5" El Sports Speaker Kit Grey Speakers

Brand: Fusion

Model: 010-02405-61

Additional Shipping Information:

Shipping Weight: 8.90 lb

Shipping Height: 9.00 in

Shipping Width: 10.00 in

Shipping Length: 18.00 in
