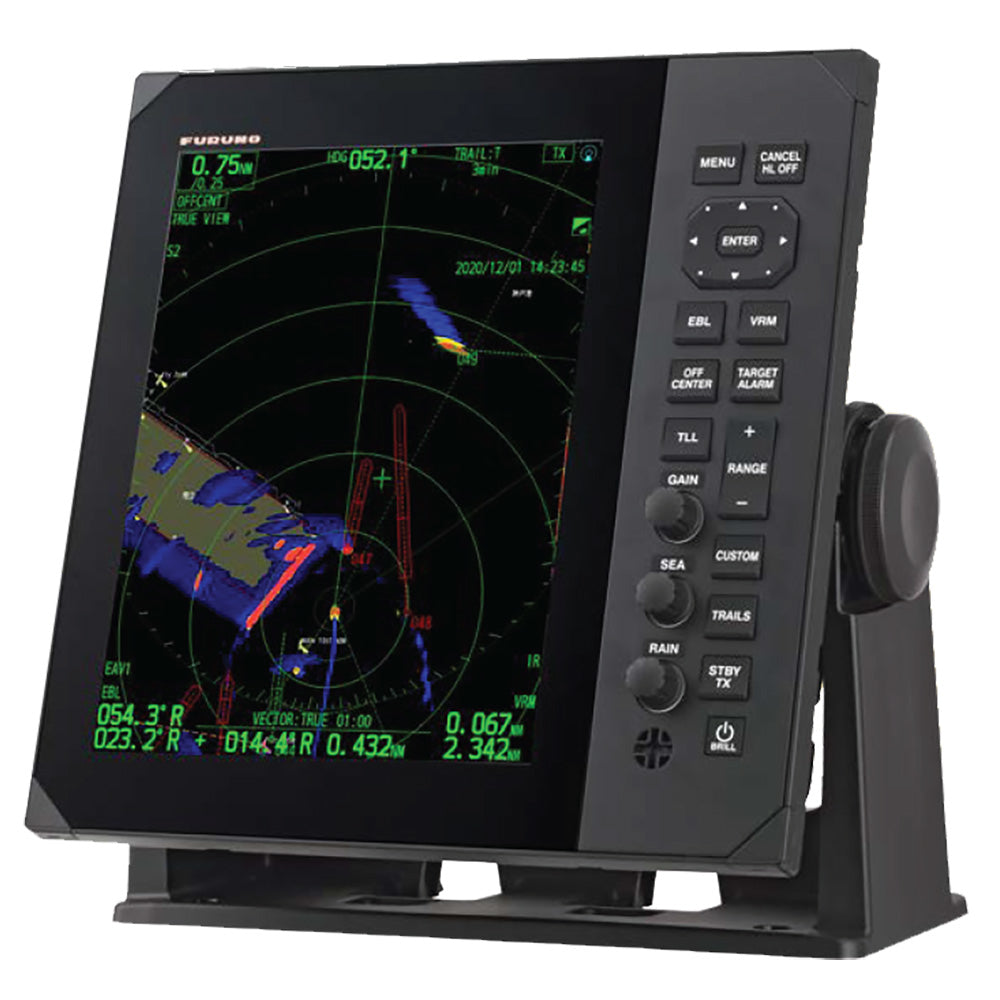

Furuno FR12 12" Color LCD Marine Radar Display

The Furuno FR12 12" Color LCD Marine Radar Display is a high-quality radar system designed specifically for marine use. It features a 12.1-inch color LCD display that provides clear and detailed radar images to help you navigate and operate your vessel safely.

This radar display is part of the FR-12 series, which can be combined with Furuno's DRS Series Antennas to meet various detection needs. It is compatible with a range of antennas, including the DRS2D-NXT, DRS4D-NXT, DRS4DL+, DRS6A-NXT, DRS12A-NXT, DRS25A-NXT, DRS6A X-Class, DRS12A X-Class, and DRS25A X-Class.

The FR12 radar display incorporates advanced technologies to enhance your navigation experience. It features Risk Visualizer, which provides visual information on potential collision areas and the movement of surrounding vessels. This helps you assess the level of danger and plan your next move. Fast Target Tracking instantly displays a vector indicating the speed and heading of a target, allowing for quick calculation of its trajectory. Target Analyzer analyzes targets and identifies dangerous ones likely to collide with your ship, using different colors to indicate the degree of danger. Echo Average attenuates irregular echoes, stabilizing echoes from fishing gear and other vessels even in poor weather conditions.

In addition, the FR12 radar display supports radar overlay on MapMedia MM3D charts, allowing you to see radar echoes overlaid on charts for improved situational awareness. When connected to the GP-3700/F via Ethernet, marks and lines can be displayed on the radar screen.

Key Features:

• 12.1-inch color LCD display
• Risk Visualizer for visual information on potential collision areas
• Fast Target Tracking to display speed and heading of targets
• Target Analyzer to identify dangerous targets
• Echo Average for improved visibility in poor weather conditions
• Radar overlay on MapMedia MM3D charts
• Compatible with Furuno's DRS Series Antennas
• Custom AIS, User-Programmable function keys, and Multi-language support

Specifications:

• Peak Output Power: Depending on the selected Antenna Unit (See DRS Antennas)
• Type: Compatible Antenna Unit: DRS4DL+, DRS2D/4D/6A/12A/25A-NXT, DRS6A/12A/25A X-Class
• Range Scales: 0.0625 to 36 NM (DRS4DL+), 0.0625 to 48 NM (DRS2D/4D-NXT), 0.0625 to 72 NM (DRS6A-NXT), 0.0625 to 96 NM (DRS6A/12A/25A X-Class, DRS12A/25A-NXT)
• Display Mode: Head-up, Course-up, North-up, True motion, Stern-up
• Other Mode/Functions: Risk Visualizer, Target Analyzer, Target Tracking, Tru

Learn More:

Radar on Wikipedia

Marine Navigation on Wikipedia

Specifications

Product: Furuno Fr12 Fr-12 Color Lcd Marine Radar Display 12""

Brand: FURUNO

Model: FR12

Additional Shipping Information:

Shipping Weight: 14.00 lb

Shipping Height: 12.00 in

Shipping Width: 16.00 in

Shipping Length: 16.00 in
