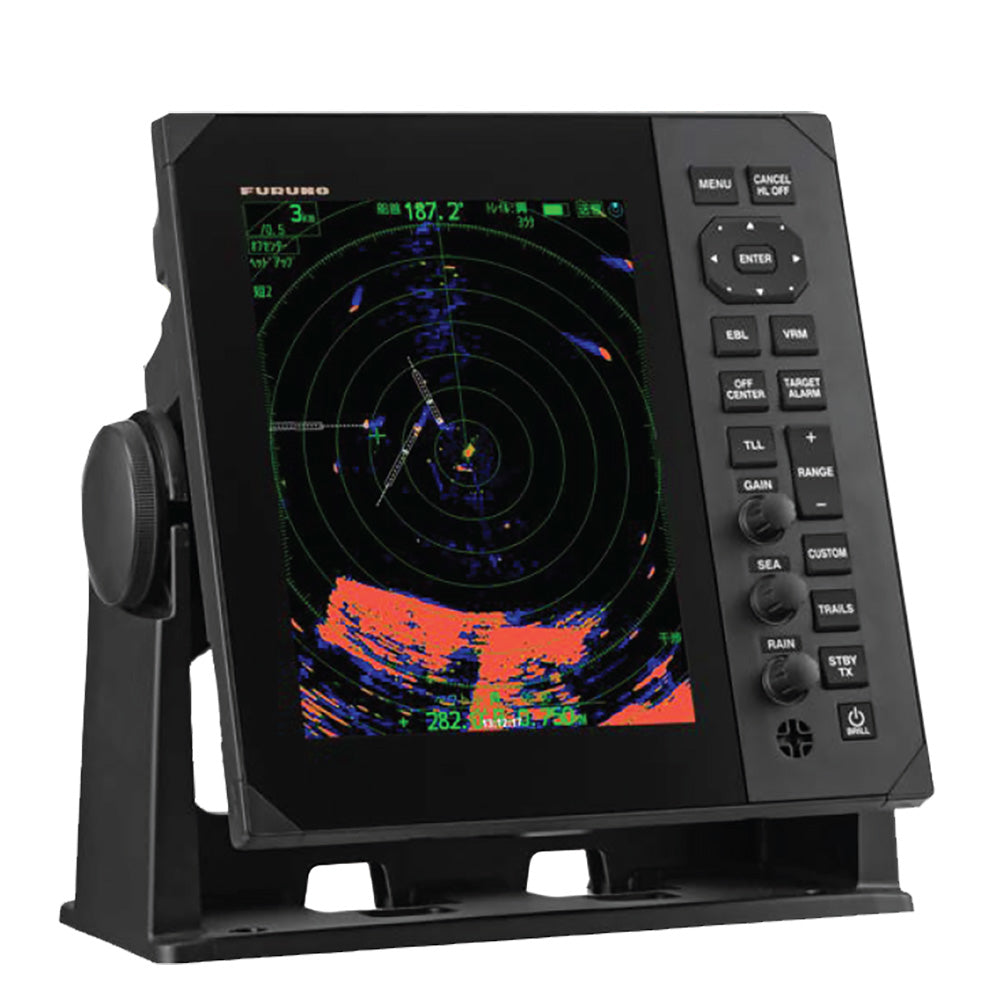

Furuno FR10 10" Color LCD Marine Radar Display

The Furuno FR10 10" Color LCD Marine Radar Display is a powerful and versatile radar system designed for marine navigation. With its 10.4" color LCD display, this radar provides clear and detailed images for easy monitoring of your surroundings. It can be combined with Furuno's DRS Series Antennas to meet a wide variety of detection needs.

The FR10 radar features advanced technologies to enhance your navigation experience. The Risk Visualizer function provides visual information on potential collision areas and movement of all surrounding vessels. This allows you to quickly assess the level of danger and plan your next move. The Fast Target Tracking technology instantly displays a vector indicating the speed and heading of the target, enabling you to calculate the target's trajectory. The Target Analyzer technology analyzes targets and identifies dangerous ones that are likely to collide with your ship. It uses different colors to indicate the degree of danger, allowing for quick identification of threats to safe navigation. The Echo Average feature attenuates irregular echoes, making it easier to see what you want to see even in poor weather conditions.

Specifications:

• Peak Output Power: Depending on the selected Antenna Unit (See DRS Antennas)
• Type: Compatible Antenna Unit: DRS4DL+, DRS2D/4D/6A/12A/25A-NXT, DRS6A/12A/25A X-Class
• Range Scales: 0.0625 to 36 NM (DRS4DL+), 0.0625 to 48 NM (DRS2D/4D-NXT), 0.0625 to 72 NM (DRS6A-NXT), 0.0625 to 96 NM (DRS6A/12A/25A X-Class, DRS12A/25A-NXT)
• Display Unit: 10.4-inch color LCD
• Display Mode: Head-up, Course-up, North-up, True motion, Stern-up
• Other Mode/Functions: Risk Visualizer, Target Analyzer, Target Tracking, True Echo Trail, Echo Average, Sub Display Unit, AIS Display, Radar overlay on charts
• Power Supply/Consumption Current: FR-10: 12-24 VDC: 1.1-0.6 A

Features:

• Risk Visualizer provides visual information on potential collision areas and movement of surrounding vessels
• Fast Target Tracking displays a vector indicating the speed and heading of the target
• Target Analyzer identifies dangerous targets likely to collide with your ship
• Echo Average attenuates irregular echoes for better visibility in poor weather conditions
• Compatible with Furuno's DRS Series Antennas for versatile configurations
• Custom AIS, User-Programmable function keys, and Multi-language support

Learn More:

For more information about marine radars, please visit the Marine Radar Wikipedia page.

Specifications

Product: Furuno Fr10 Fr-10 Color Lcd Marine Radar Display 10""

Brand: FURUNO

Model: FR10

Additional Shipping Information:

Shipping Weight: 12.50 lb

Shipping Height: 12.00 in

Shipping Width: 16.00 in

Shipping Length: 16.00 in
