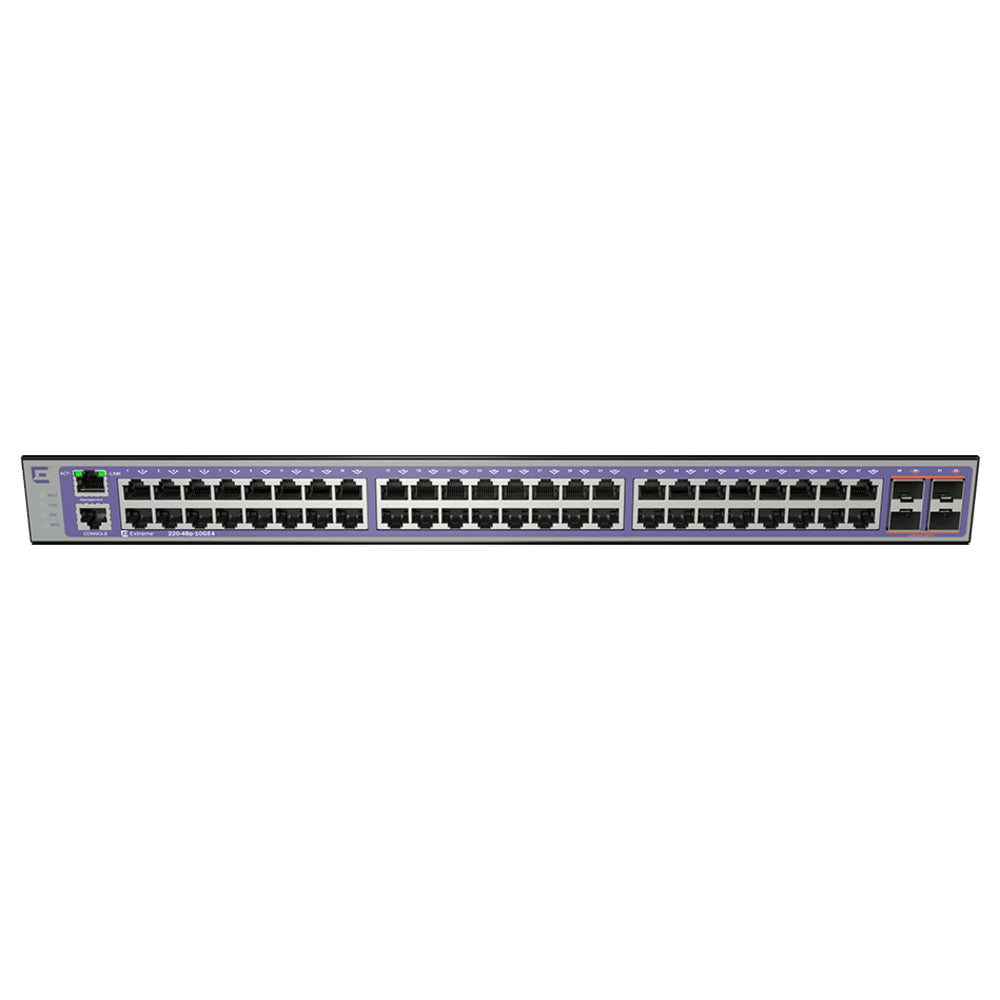

Extreme Networks Inc 16565 220-48P-10Ge4 220-Series 48 Port 10/100/1000Base-T Switch

The ExtremeSwitching 220 Series is an economical, fixed-configuration family of Gigabit Ethernet Layer 2/3 switches designed for enterprises, branch offices and small to medium-sized businesses looking for key features in a flexible, yet easy-to-manage solution. The series consists of six switches including 12-, 24-, and 48-port Gigabit Ethernet switches and 12-, 24-, and 48-port Gigabit PoE+ models. All models provide nonblocking Gigabit per port performance and include either 2 or 4 SFP+ ports for highspeed 10Gbps fiber connectivity. In addition, the 12-port PoE+ and non-PoE+ models can operate in fanless mode, making them ideal for office deployments. In addition to a rich Layer 2 feature set, the 220 Series offers dynamic IPv4 RIP routing services, stacking of up to 4 switches with single IP management, and redundant power supply option. The 220 Series also provides multiple management options, including cloud-based management via ExtremeCloud for wired and wireless network oversight through a single pane of glass. The switches can also be set-up via a web browser, or managed by ExtremeManagement for centralized provisioning, monitoring and troubleshooting. And for advanced users, the 220 Series offers an industry-standard CLI along with scripting capabilities. All ExtremeSwitching 220 Series switches include a Limited Lifetime Warranty, which provides advanced hardware replacement with next business day shipment.

220 Series 48 port 10/100/1000BASE-T PoE+ (370W), 4 10GbE unpopulated SFP+ ports (2 LRM Capable), 1 Fixed AC PSU, 1 RPS port, L2 Switching with RIP and Static Routes, 1 country-specific power cord

Features:

• Switch type: Managed
• Switch layer: L2/L3
• Quality of Service (QoS) support: Y
• System event log: Y
• MIB support: Y
• Web-based management: Y
• Traffic classification: Y
• Traffic shaping: Y
• ARP inspection: Y
• Configuring Location Settings (CLI): Y
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1ak,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
• Flow control support: Y
• Port mirroring: Y
• Link aggregation: Y
• Broadcast storm control: Y
• DHCP features: DHCP server,DHCP snooping,DHCP relay,DHCP client
• IP routing: Y
• Spanning tree protocol: Y
• 10G support: Y
• Active link detection: Y
• MAC address table: 16000
• Number of queues: 8
• Static route: Y
• Number of static routes: 64
• Jumbo frames support: Y
• VLAN support: Y
• Number of VLANs: 1024
• Virtual LAN features: Multicast VLAN,VLAN Identifier ( VLAN ID),Voice VLAN
• Multicast support: Y
• MAC address filtering: Y
• Static port security: Y
• Access Control List (ACL): Y
• SSH/SSL support: Y
• IGMP snooping: Y
• Loop protection: Y
• BPDU filtering/protection: Y
• Authentication: Port-based authentication
• Access Control List (ACL) rules: 1023
• Root protection: Y
• Password protection: Y
• ARP attack prevention: Y
• Authentication type: AAA
• GARP VLAN Registration Protocol (GVRP): Y
• Rack mounting: Y
• Stackable: Y
• Product color: Bronze,Purple
• LED indicators: Y
• Processor frequency: 1000
• Internal memory: 512
• Memory type: DRAM
• Flash memory: 128
• Packet buffer memory: 1.5
• Buffer size: 128
• sFlow: Y
• Operating temperature (T-T): 0 - 50
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 10 - 95
• Storage relative humidity (H-H): 10 - 95
• Operating altitude: 0 - 3000
• Manual: Y
• Console port: RJ-45
• Form factor: 1U
• Basic switching RJ-45 Ethernet ports quantity: 48
• Installed SFP+ modules quantity: 4
• Switching capacity: 176
• Throughput: 130.9
• Power over Ethernet (PoE): Y
• Power over Ethernet plus (PoE+) ports quantity: 48
• Total Power over Ethernet (PoE) budget: 370
• Height: 44
• Weight: 4500
• Width: 441
• Depth: 254
• Heat dissipation: 392
• Power consumption (max): 485
• Number of fans: 3
• Cables included: AC
• Built-in processor: Y

Learn More

Extreme Networks Wikipedia

Specifications

Product: Extreme Networks Inc 16565 220-48P-10Ge4 220-Series 48 Port 10/100/1000Base-T Switch

Brand: EXTREME NETWORK INC

Model: 16565

Additional Shipping Information:

Shipping Weight:

Shipping Height:

Shipping Width:

Shipping Length:
