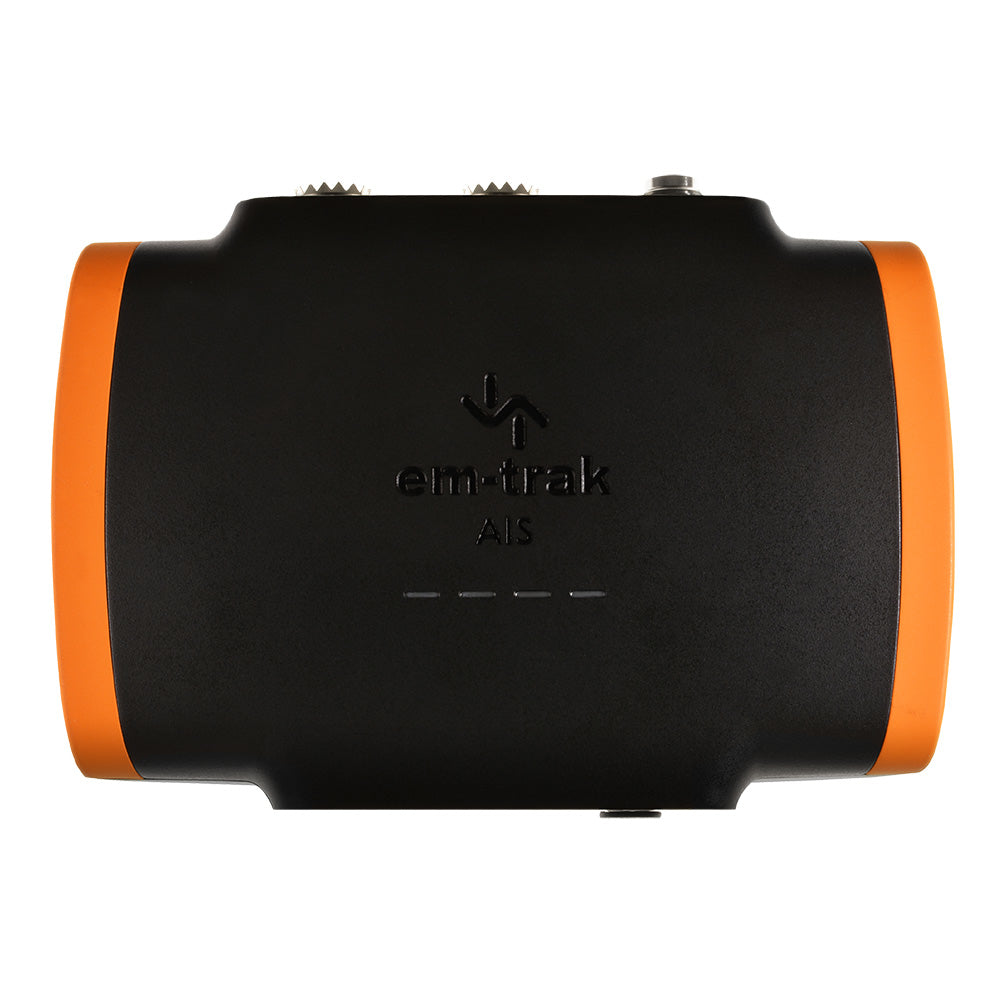

Em-Trak 430-0007 B924 Class B AIS Transceiver with WiFi, Bluetooth & VHF Antenna Splitter

The Em-Trak 430-0007 B924 Class B AIS Transceiver is a feature-rich 2W CSTDMA transceiver with integrated WiFi, Bluetooth, and VHF antenna splitter. It is designed for seamless wireless connectivity and AIS data streaming to any mobile device, PC, or wearable. The transceiver also includes an integrated GPS receiver and antenna, and is designed for easy installation with Em-Trak's FLEXI-FIT bracket system.

Exceptionally lightweight and completely weatherproof, the B924 delivers the very best AIS receive and transmit performance, even at maximum range. It is also compatible with the CONNECT-AIS mobile phone app for simple programming, configuration, and transceiver health monitoring.

Features:

• Certified AIS Class B - 2W CSTDMA
• Integrated WiFi and Bluetooth
• Integrated VHF antenna splitter
• Global certification - USCG / FCC / Canada / Europe
• SRT-AIS Transceiver Engine for superlative proven performance
• FLEXI-FIT bracket system for easy, convenient, and secure installation
• Internal high-performance GPS receiver and antenna (external antenna optional)
• Water, pressure spray, and damp proof (IPx6, IPx7 certified)
• Protected from vibration, shock, and extreme temperatures
• Small and lightweight
• Ultra-low power consumption - best in class
• Guaranteed connectivity and interoperability with any app, chart plotter, smartphone, tablet, or PC
• NMEA 0183 & NMEA 2000
• Automated health and performance monitoring
• Silent mode (transmit-off) function
• Enhanced RF screening to protect against electromagnetic interference
• Built-in power surge protection

Physical & Environmental Specifications:

• Size (H x W x D): 150 x 115 x 45mm
• Weight: 425kg
• Operating temperature: -25&degC to +55&degC
• Storage temperature: -25&degC to +70&degC
• Ingress protection: IPx6 and IPx7

Electrical Specifications:

• Supply voltage: 12V or 24V DC
• Supply voltage range: 9.6V - 31.2V DC
• Average current (at 12V): 280mA
• Average current (at 12V) (wireless off): 245mA
• Peak current: 2A
• Average power consumption (at 12V): 3.4W
• Average power consumption (at 12V) (wireless off): 2.9W
• Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port

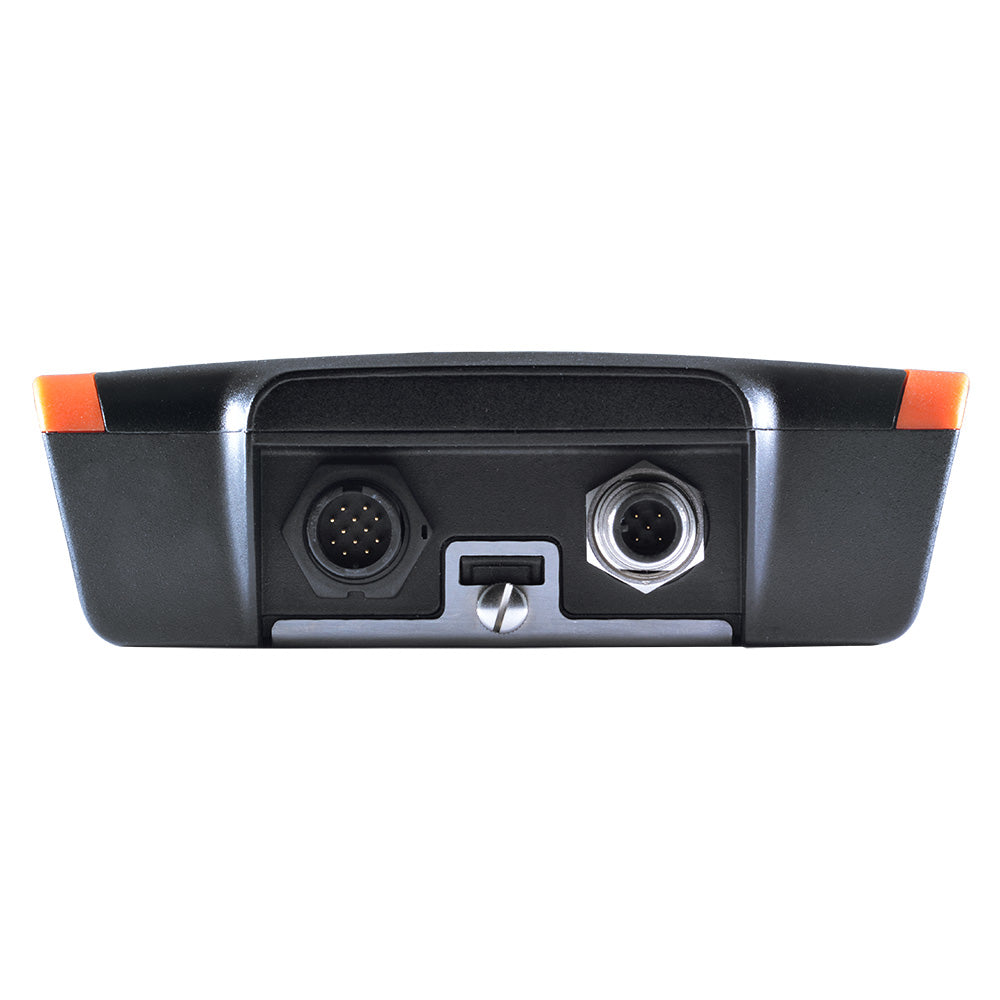

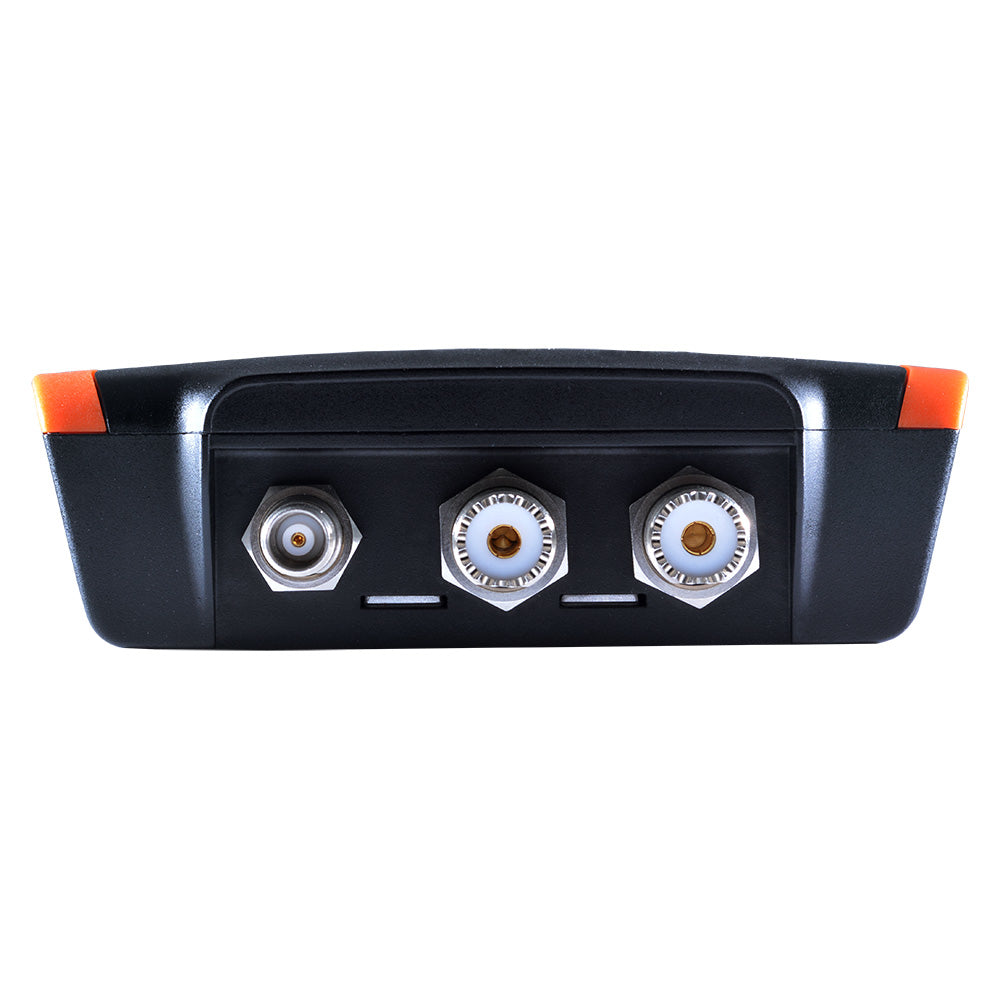

Connectors:

• VHF antenna: SO-239
• VHF radio: SO-239
• GNSS: TNC
• Power: 12-way circular multipole
• NMEA 2000: 5-way Micro-C connector
• USB: USB Micro-B

Data Interfaces:

• NMEA 0183: 2 x bi-directional ports
• NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
• USB: PC virtual com port for NMEA 0183 data
• WiFi: IEEE 802.11 (a/b/g), client and access point mode supported (2 connections in access point mode)
• Bluetooth: BT Classic 4.0, 7 concurrent connections

Standards Compliance:

• AIS standards: IEC 62287-1 Ed. 3, ITU-R M.1371.5
• Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
• Environmental standards: IEC 60945 Ed. 4
• Serial data interface standard: NMEA 0183

Learn More

• Automatic Identification System
• Global Positioning System

Specifications

Product: Em-Trak 430-0007 B924 Class B Ais Transceiver Wifi Bluetooth And Vhf Antenna

Brand: Em-Trak

Model: 430-0007

Additional Shipping Information:

Shipping Weight: 2.25 lb

Shipping Height: 6.00 in

Shipping Width: 7.00 in

Shipping Length: 7.00 in
