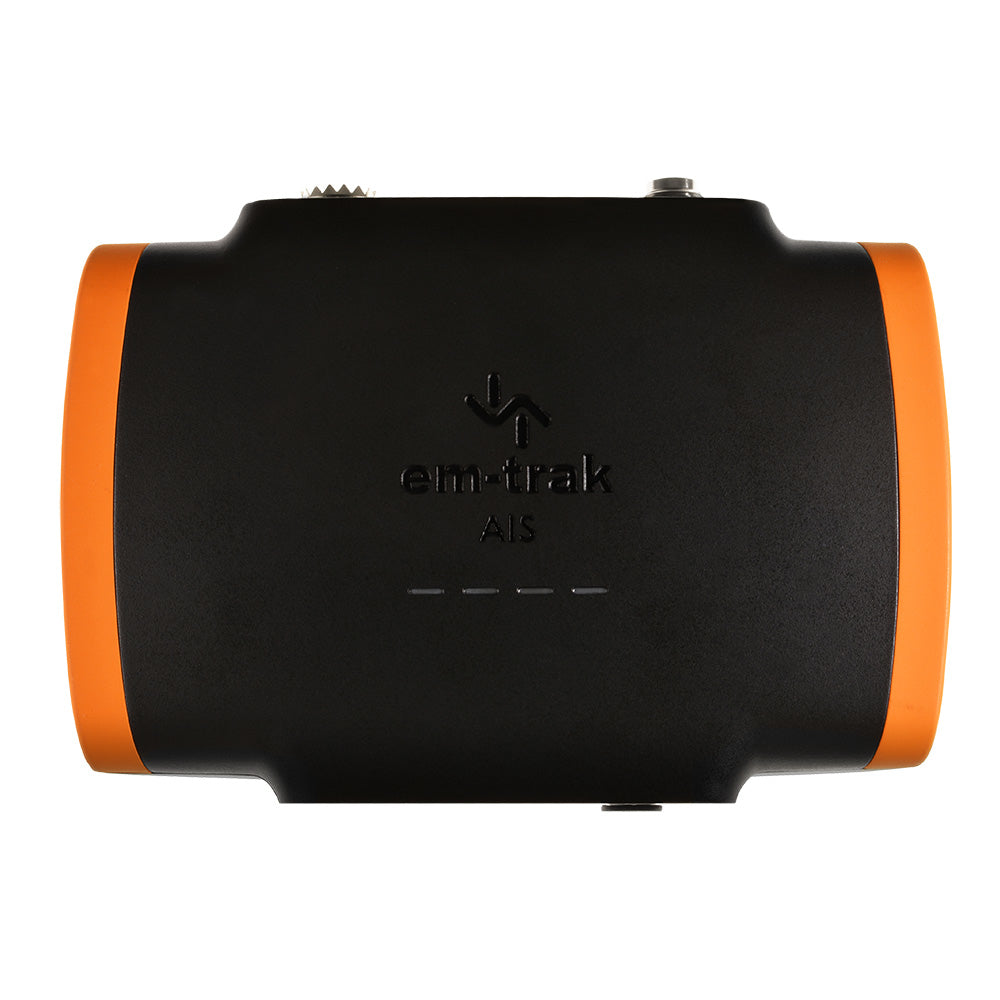

Em-Trak 430-0003 B922 Class B AIS Transceiver with WiFi & Bluetooth Wireless

The Em-Trak 430-0003 B922 Class B AIS Transceiver with WiFi & Bluetooth Wireless Connectivity is a top-of-the-line transceiver designed to provide unmatched performance and ultra-low power consumption through advanced technology. This 2W CSTDMA transceiver is small and lightweight, making it easy to install with em-trak's unique FLEXI-FIT 'no screw' bracket system. It offers integrated WiFi & Bluetooth capabilities for seamless wireless connectivity and AIS data streaming, compatible with any mobile device or PC. The B922 transceiver is also certified AIS Class B and is globally certified, meeting USCG, FCC, Canada, and Europe standards. It comes with an internal high-performance GPS receiver and antenna, and is water, pressure spray, and damp proof (IPx6, IPx7 certified).

Features:

• Certified AIS Class B - 2W CSTDMA
• Integrated WiFi and Bluetooth
• Global certification - USCG / FCC / Canada / Europe
• SRT-AIS Transceiver Engine for superlative proven performance
• FLEXI-FIT bracket system for easy, convenient, and secure installation
• Internal high-performance GPS receiver and antenna (external antenna optional)
• Water, pressure spray, and damp proof (IPx6, IPx7 certified)
• Protected from vibration, shock, and extreme temperatures
• Small and lightweight
• Ultra-low power consumption - in class
• Guaranteed connectivity and interoperability with any app, chart plotter, smartphone, tablet, or PC
• NMEA 0183 & NMEA 2000
• Automated health and performance monitoring
• Silent mode (transmit-off) function
• Enhanced RF screening to protect against electromagnetic interference
• Built-in power surge protection

Physical & Environmental Specifications:

• Size (H x W x D): 150 x 115 x 45mm
• Weight: 385kg
• Operating temperature: -25&degC to +55&degC
• Storage temperature: -25&degC to +70&degC
• Ingress protection: IPx6 and IPx7

Electrical Specifications:

• Supply voltage: 12V or 24V DC
• Supply voltage range: 9.6V - 31.2V DC
• Average current (at 12V): 170mA
• Average current (at 12V) (wireless off): 135mA
• Peak current: 2A
• Average power consumption (at 12V): 2.0 W
• Average power consumption (at 12V) (wireless off): 1.6W
• Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port

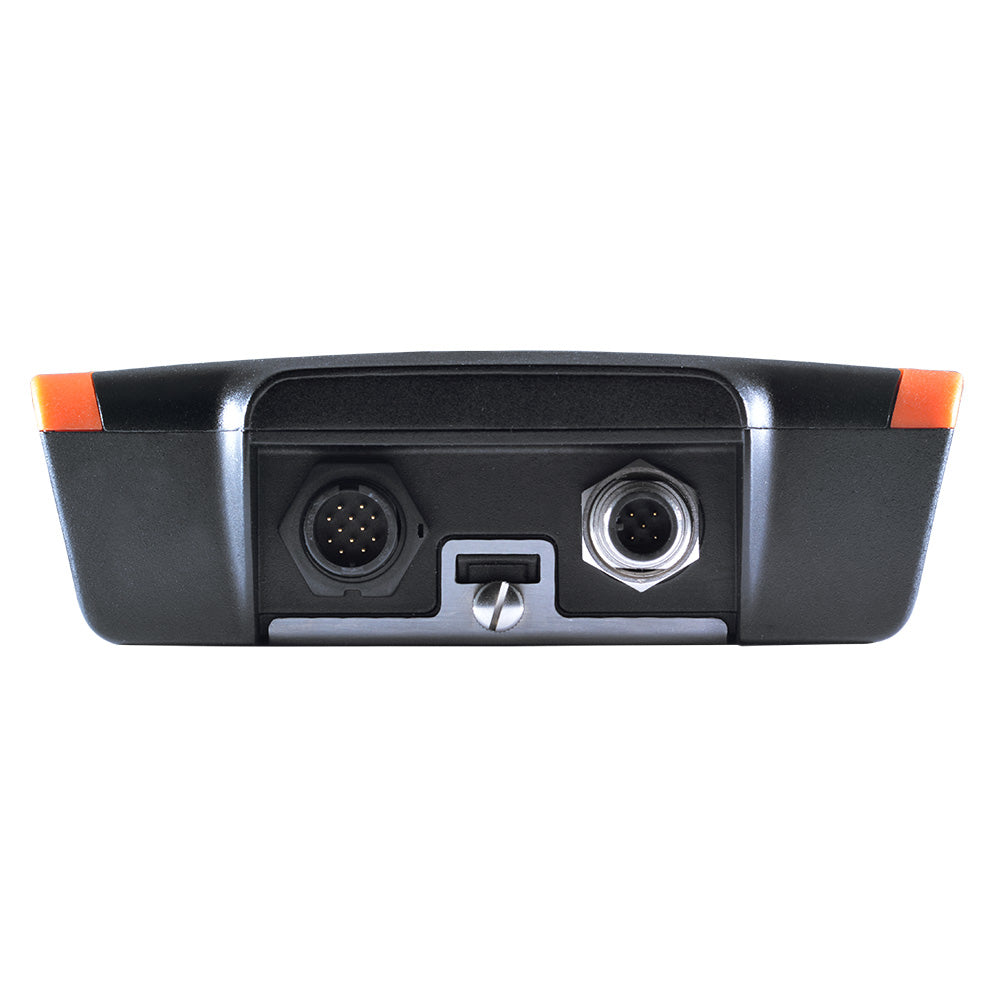

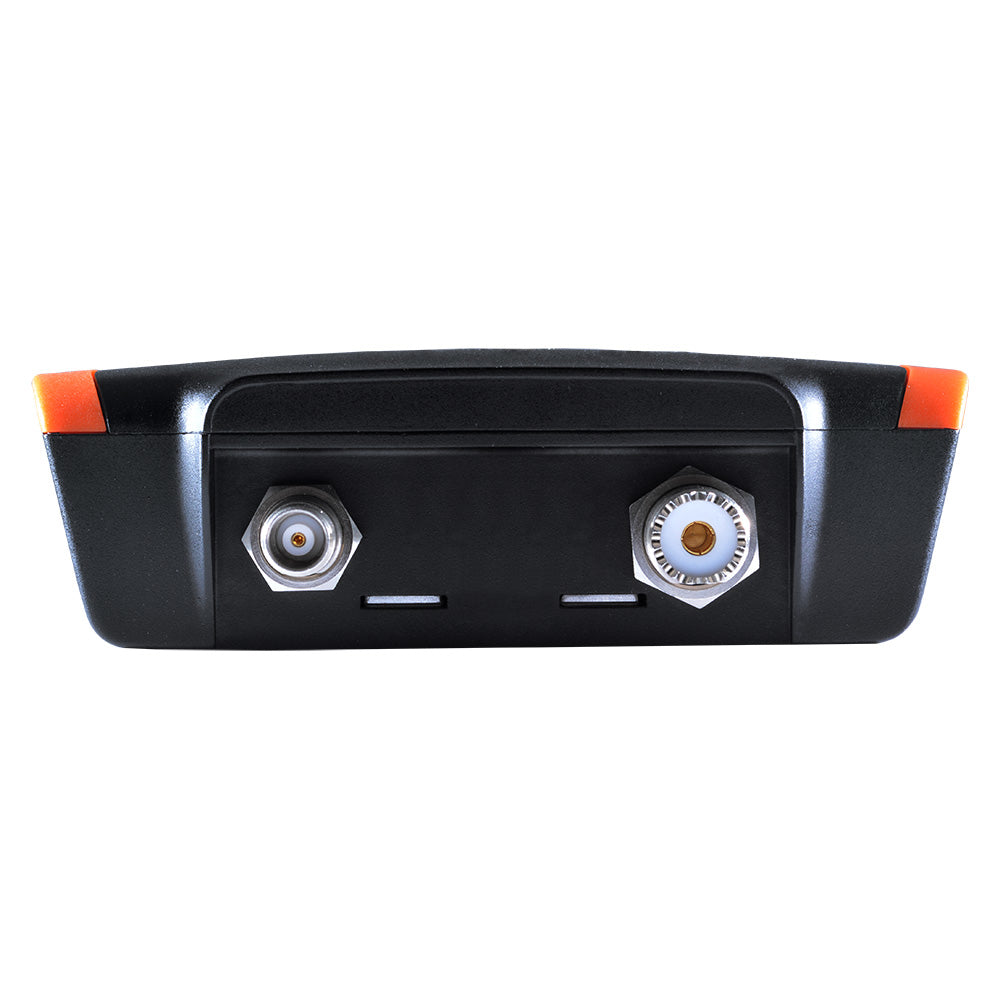

Connectors:

• VHF antenna: SO-239
• GNSS: TNC
• Power: 12-way circular multipole
• NMEA 2000: 5-way Micro-C connector
• USB: USB Micro-B

Data Interfaces:

• NMEA 0183: 2 x bi-directional ports
• NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
• USB: PC virtual com port for NMEA 0183 data
• WiFi: IEEE 802.11 (a/b/g), client and access point mode supported (2 connections in access point mode)
• Bluetooth: BT Classic 4.0, 7 concurrent connections

Standards Compliance:

• AIS standards: IEC 62287-1 Ed. 3, ITU-R M.1371.5
• Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
• Environmental standards: IEC 60945 Ed. 4

Learn More

• Automatic Identification System (AIS) on Wikipedia

Specifications

Product: Em-Trak 430-0003 B922 Class B Ais Transceiver Wifi And Bluetooth Wireless

Brand: Em-Trak

Model: 430-0003

Additional Shipping Information:

Shipping Weight: 1.65 lb

Shipping Height: 6.00 in

Shipping Width: 7.00 in

Shipping Length: 8.00 in
