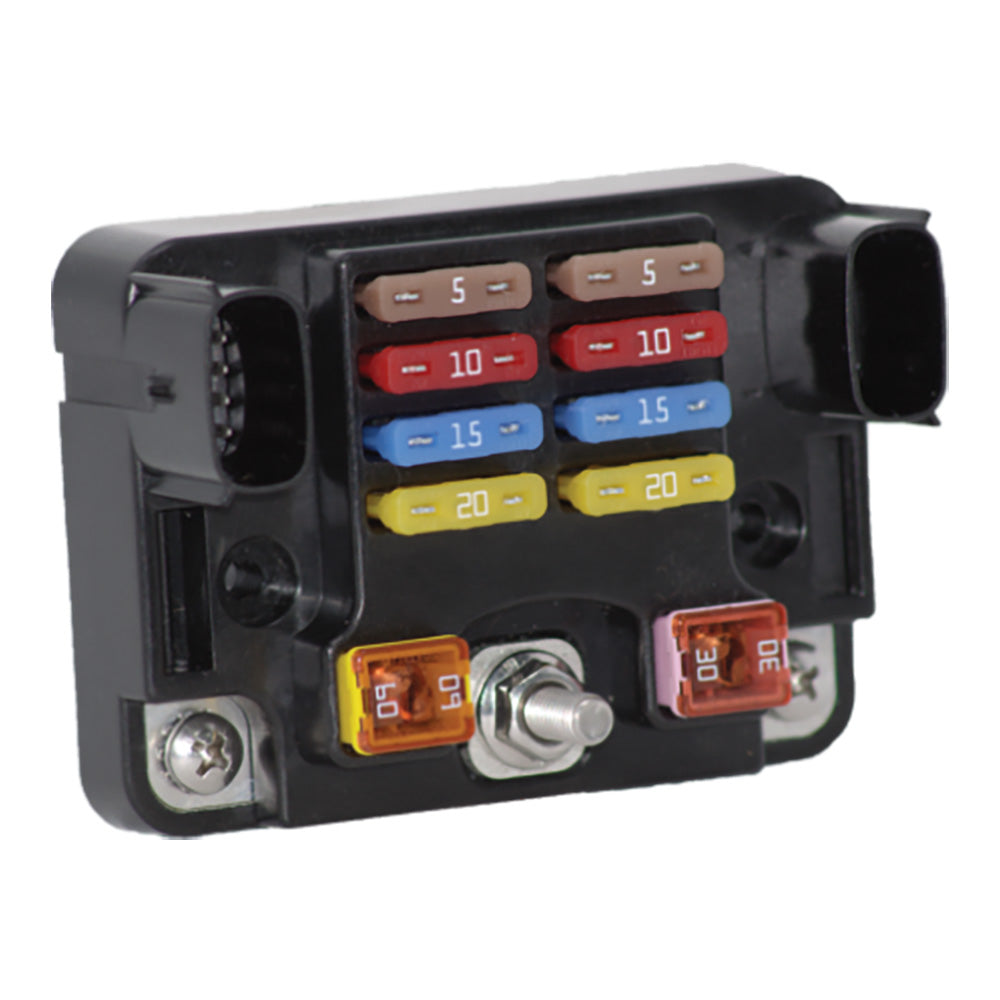

Egis Mobile Electric 5015 8 2 Fuse Block - Compact Solution with Low and High Amp Protection

The Egis Mobile Electric 5015 8 2 Fuse Block is a compact solution that combines low amp and high amp fuse protection in one product. It reduces installation space and total installed time/cost, featuring two MX-150 connectors for low-amp outputs and two high-amp (20-50A) outputs that support all necessary circuit protection needs in one product.

Features:

• Compact solution combines low amp and high amp fuse protection
• Two MX-150 connectors for low-amp outputs
• Two high-amp (20-50A) outputs support all necessary circuit protection needs
• Protects add-on circuits from accidental short circuits or overload events
• 4-year industry leading warranty

Specifications:

• Total continuous current (amps): 200 amps
• Max current per ATO fuse (amps): 22 amps
• Voltage range (V DC): 8-36V DC
• Max current per LP J Case fuse (amps): 50 amps
• Max current per 4 Pos MX-150 (amps): 50 amps
• Max wire gauge, MX-150 connector: 14 AWG

Learn More:

• Fuse (Electrical) on Wikipedia

Specifications

Product: Egis Mobile Electric 5015 8 2 Fuse Block - Compact Solution with Low and High Amp Protection

Brand: Egis Mobile Electric

Model: 5015

Additional Shipping Information:

Shipping Weight: 0.50 lb

Shipping Height: 3.00 in

Shipping Width: 3.00 in

Shipping Length: 5.00 in
