Brainboxes Ed-004 Ethernet To 4 Dio Dig In Or Out+1 Rs232+1

MPN: ED-004

SKU: 0837324009859

Shipping Weight: 0.55 lb

Sale price
$175.58
Regular price
$185.63
You save
$10.05 (6%)
Taxes and shipping calculated at checkout
Only 4 left in stock!

Frequently Bought Together

Amazon
American Express
Apple Pay
Diners Club
Discover
Meta Pay
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

90-Day Returns

100% hassle free

Note: We Only Offer Shipping Across The United States

Have a question?

Brainboxes Ed-004 Ethernet To 4 Dio Dig In Or Out+1 Rs232+1

Product Description:

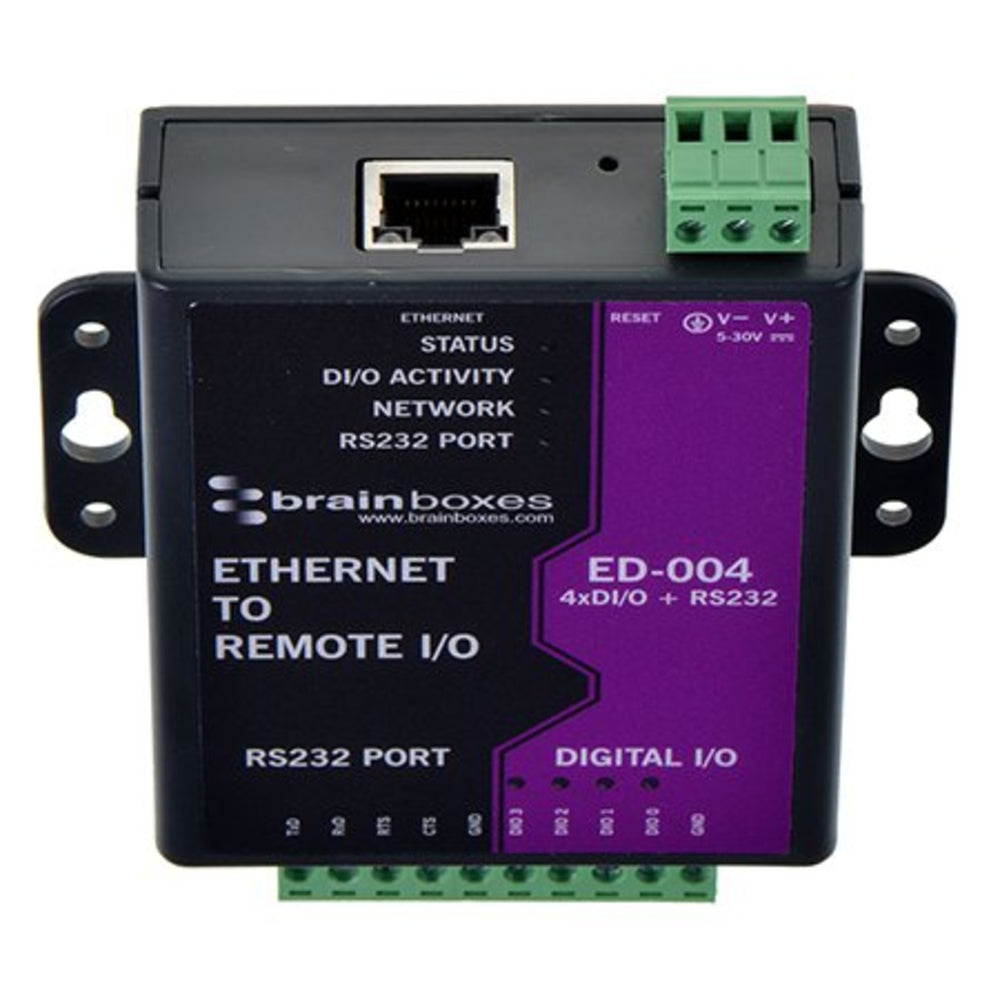

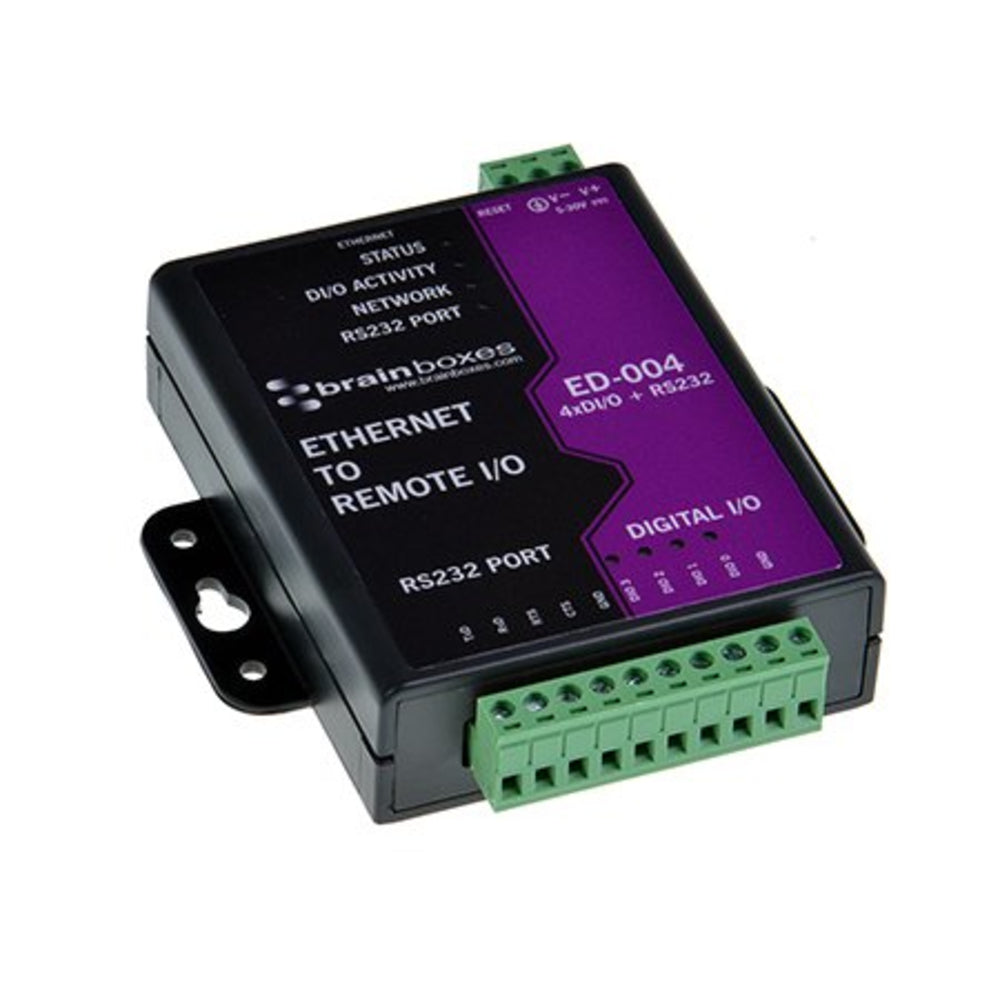

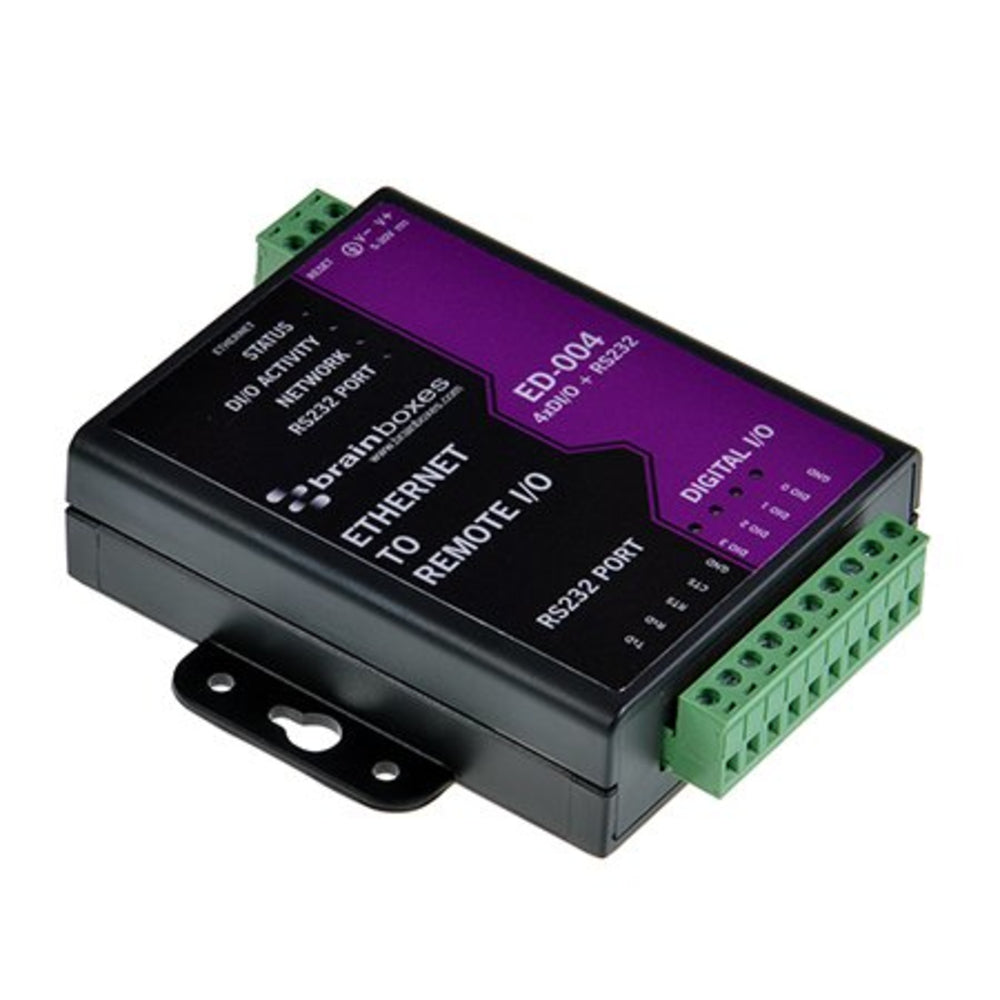

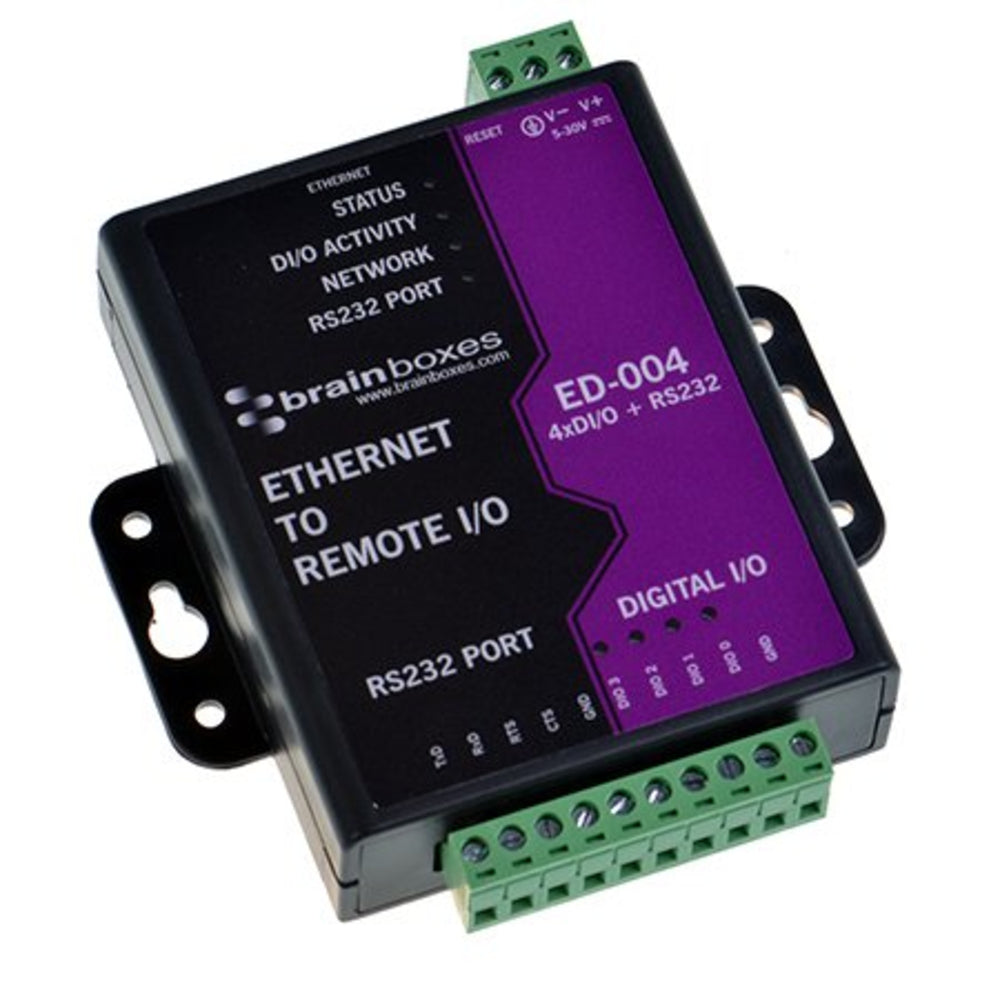

The Brainboxes ED-004 Ethernet to 4 Dio Dig In Or Out+1 Rs232+1 is a digital/analog I/O module that provides robust and intelligent control for systems on the 24V factory floor environment. This device offers powerful ARM 80 MHz, 32 Bit CPU for efficient performance.

With 4 digital input channels and 8 digital output channels, this module is capable of controlling and switching AC and DC motors, fans, relay drivers, pumps, voltage regulators, battery chargers, LEDs, bulbs, air conditioning, heaters, and solenoids.

The ED-004 installs as a COM Port on the PC, ensuring complete backwards compatibility for legacy applications. It supports I/O protocols such as Modbus TCP or DCON ASCII over TCP or Virtual COM port.

Product Features:

  • Product color: Black, Purple
  • Operating temperature (T-T): 0 - 60
  • Storage temperature (T-T): 0 - 70
  • Channels quantity: 4
  • Signal direction: Input/output
  • Ethernet LAN (RJ-45) ports: 1
  • Serial interface type: RS-232
  • Supported network protocols: ICMP, IP, TCP, DHCP, HTTP
  • Weight: 126
  • Isolation: 1.5
  • Electrostatic Discharge (ESD) protection: 16
  • Width: 116
  • Depth: 100
  • Height: 26
  • I/O protocols: Modbus TCP or DCON ASCII (over TCP or Virtual COM port)
  • Package width: 160
  • Package depth: 135
  • Package height: 49
  • Package weight: 222
  • Power consumption note: 2.5W Max: 220mA @+5VDC / 36mA @+30VDC
  • DC input voltage: 5 - 30
  • Maximum input voltage: 35
  • Digital input channels quantity: 4
  • Digital output channels quantity: 4
  • Maximum output current per channel: 0.85
  • Module type: Digital
  • Output voltage (max): 30
  • Maximum combined load: 3.4
  • Power consumption: 100
  • Windows operating systems supported: Windows 10, Windows 2000, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64
  • Mobile operating systems supported: Android, iOS
  • Linux operating systems supported: Y
  • Mac operating systems supported: Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10
  • Server operating systems supported: Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012
  • Power supply type: 1: PW-600, 2: PW-650
  • Short circuit protection: Y
  • Short circuit protection up to: 36
  • Overheat protection: Y
  • Overheat shutdown (typical): 175
  • Overheat shutdown (min): 150
  • Quick-Stop function: Y

Learn More:

Specifications

Product: Brainboxes Ed-004 Ethernet To 4 Dio Dig In Or Out+1 Rs232+1

Brand: Brainboxes

Model: ED-004

Additional Shipping Information:

Shipping Weight: 0.55 lb

Shipping Height: 1.90 in

Shipping Width: 5.40 in

Shipping Length: 6.30 in
