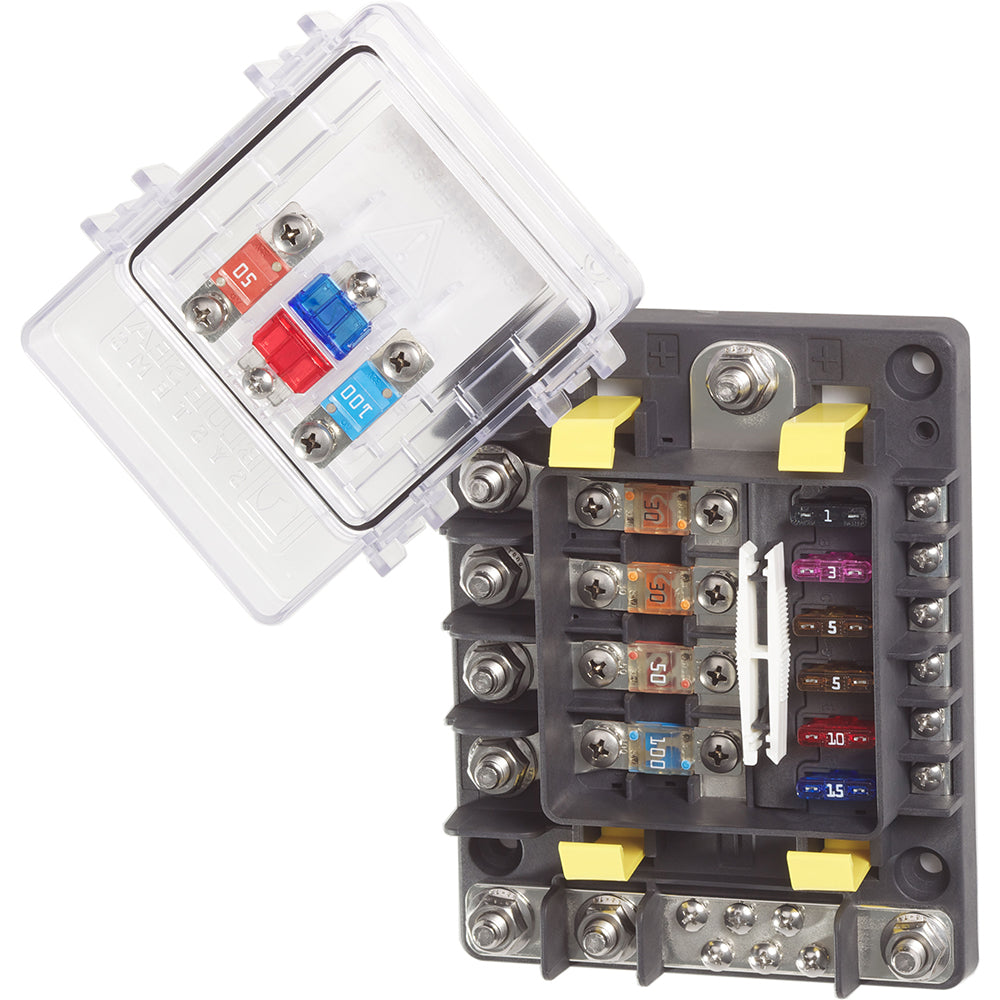

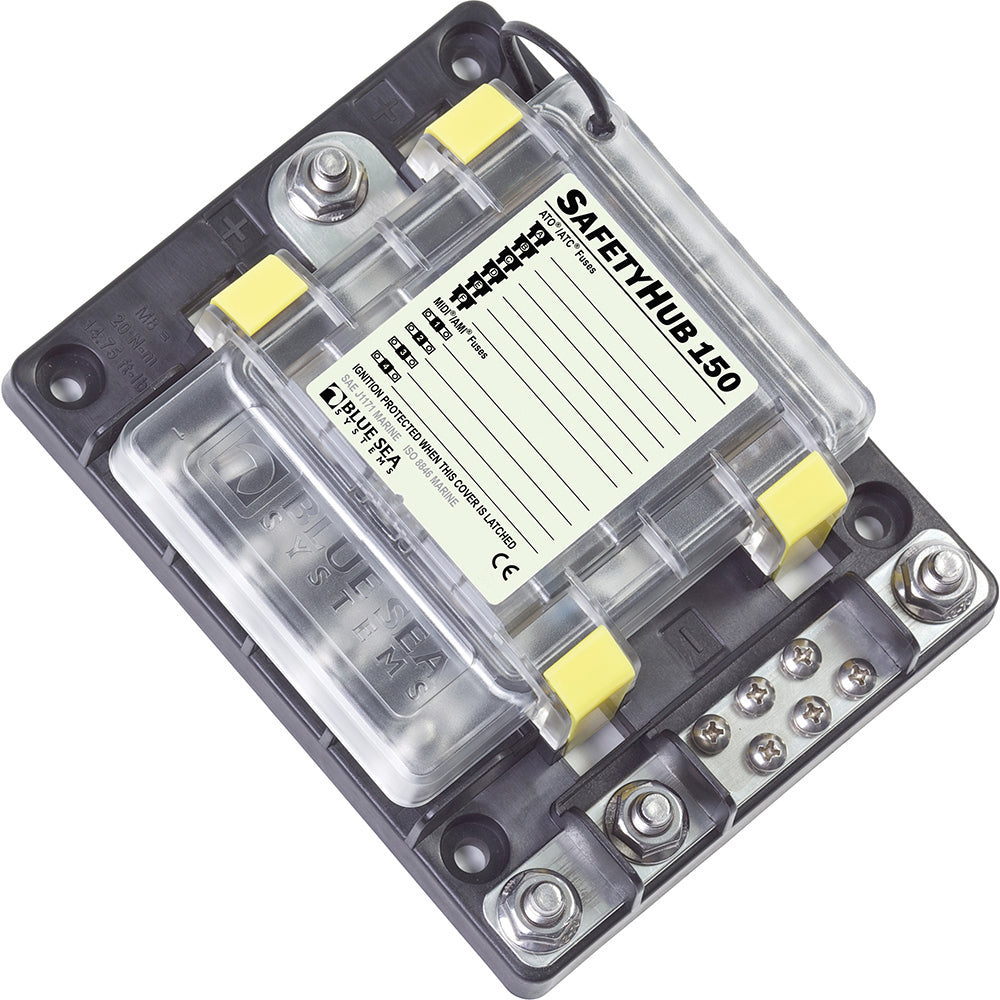

Blue Sea 7748 SafetyHub Fuse Block - Ignition Protected

The SafetyHub 150 Fuse Block is an essential component for boats with gasoline-powered engines. This fuse block reduces wiring connections and consolidates up to ten fused circuits, providing a safe and efficient solution for Main or Branch DC power distribution. The ignition-protected design meets Coast Guard and ABYC requirements for installation on gasoline or diesel powered boats. The SafetyHub 150 Fuse Block includes four 30A-200A MIDI/AMI fuses ideal for high-amp circuits including panel feeds, windlasses, and stereo amplifiers. Additionally, it features six 1A-30A ATO/ATC fuses ideal for low-amp circuits including bilge pumps, electronics, and lights. The sealed cover protects fuses from the harsh marine environment with an IP66 rating, which is protected against powerful water jets. This fuse block also includes a negative bus that provides a common location for negative collection, a circuit identification label with write-on capability, and a fuse puller that easily removes ATO/ATC fuses. The cover provides storage space for two spare ATO/ATC fuses and two spare MIDI/AMI fuses. The NYPATCH coated MIDI/AMI fuse screws resist loosening over time, ensuring a secure and safe connection. Product Features:

• Ignition protected fuse block with screw termination
• Consolidates up to ten fused circuits
• Four 30A-200A MIDI/AMI fuses for high-amp circuits
• Six 1A-30A ATO/ATC fuses for low-amp circuits
• Sealed cover protects fuses from harsh marine environment
• IP66 rating - protected against powerful water jets
• Negative bus provides common location for negative collection
• Circuit identification label with write-on capability
• Fuse puller easily removes ATO/ATC fuses
• Cover provides storage space for two spare ATO/ATC fuses and two spare MIDI/AMI fuses
• NYPATCH coated MIDI/AMI fuse screws resist loosening over time
• Ignition protected fusing meets Coast Guard and ABYC requirements for installation on gasoline or diesel powered boats

Specifications:

• Dimensions: 5.25" x 7.5" x 3.12"
• Maximum Amperage: 150A
• Maximum Voltage: 32V DC
• Number of Circuits: 10

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Specifications

Product: Blue Sea Systems 7748 Fuse Block Safetyhub Ignition Protect.

Brand: Blue Sea Systems

Model: 7748

Additional Shipping Information:

Shipping Weight: 2.00 lb

Shipping Height: 3.00 in

Shipping Width: 9.00 in

Shipping Length: 12.00 in
