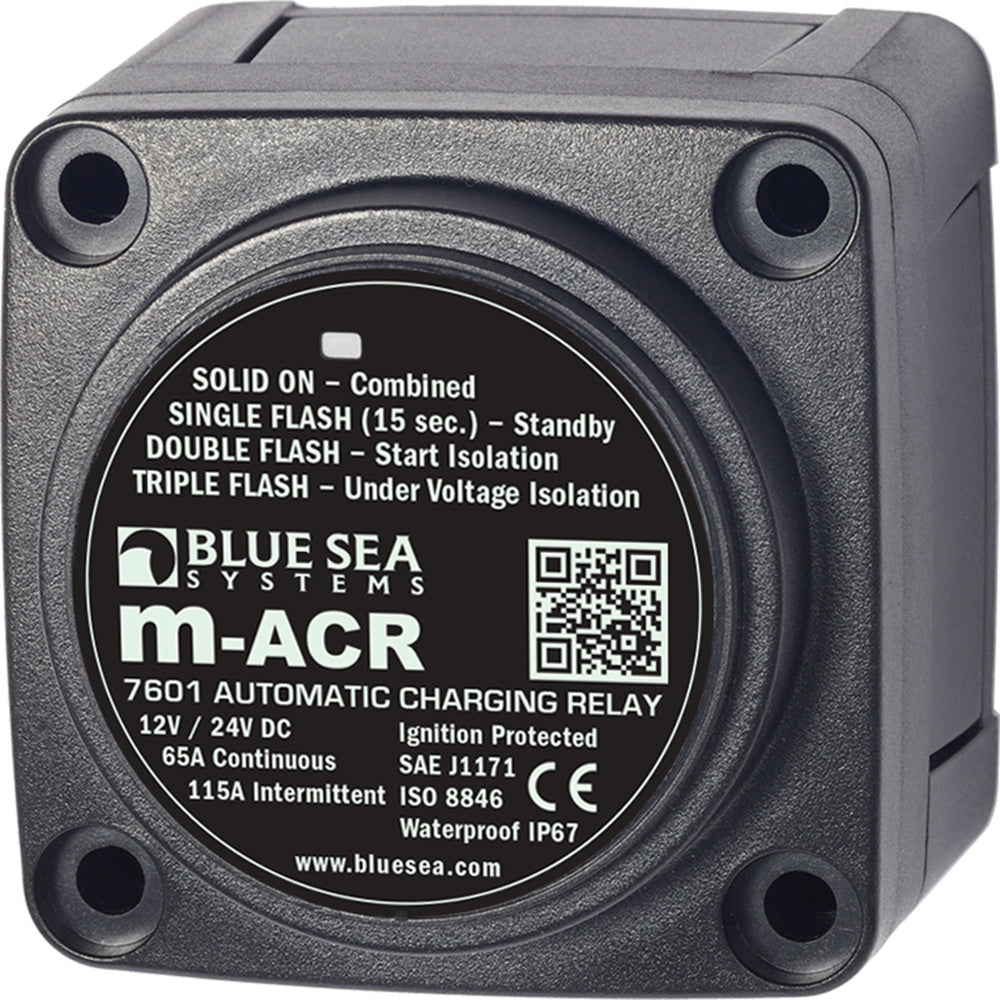

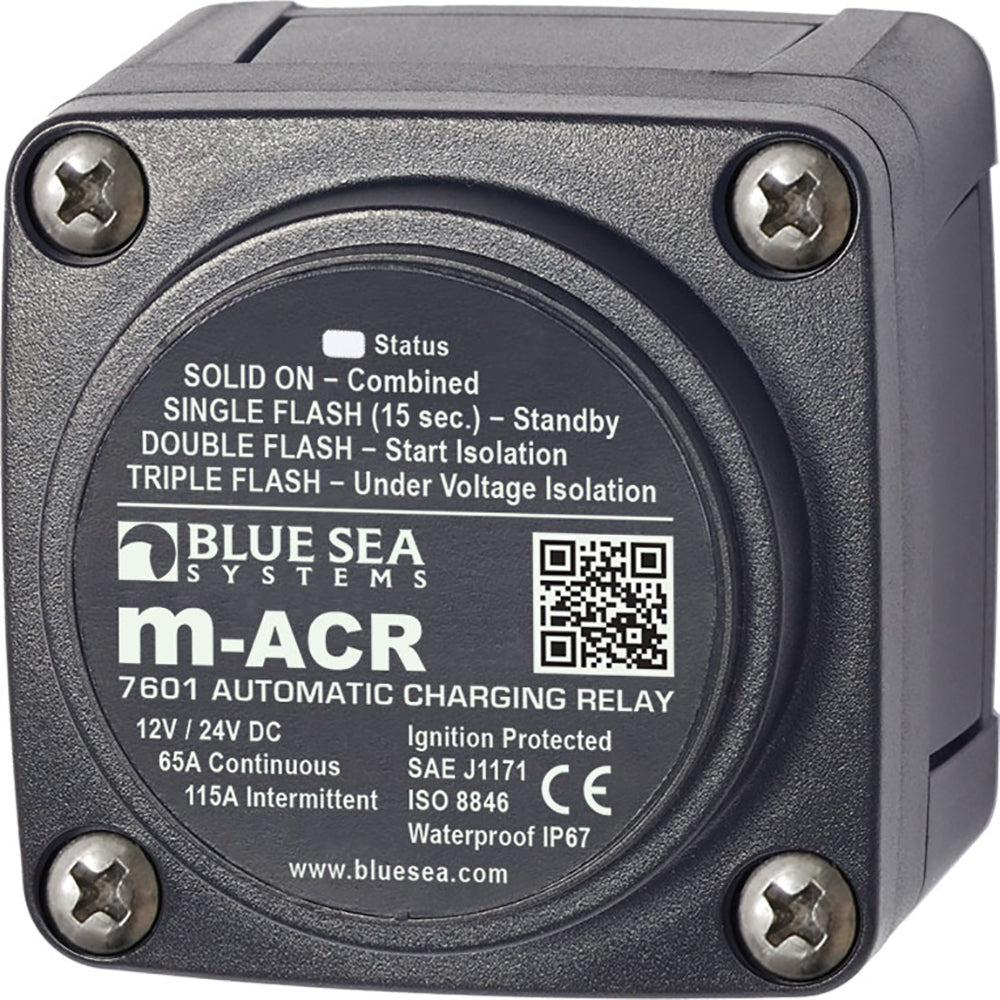

Blue Sea Systems M-Series 7601-BSS 65A 12/24VDC Automatic Charging Relay

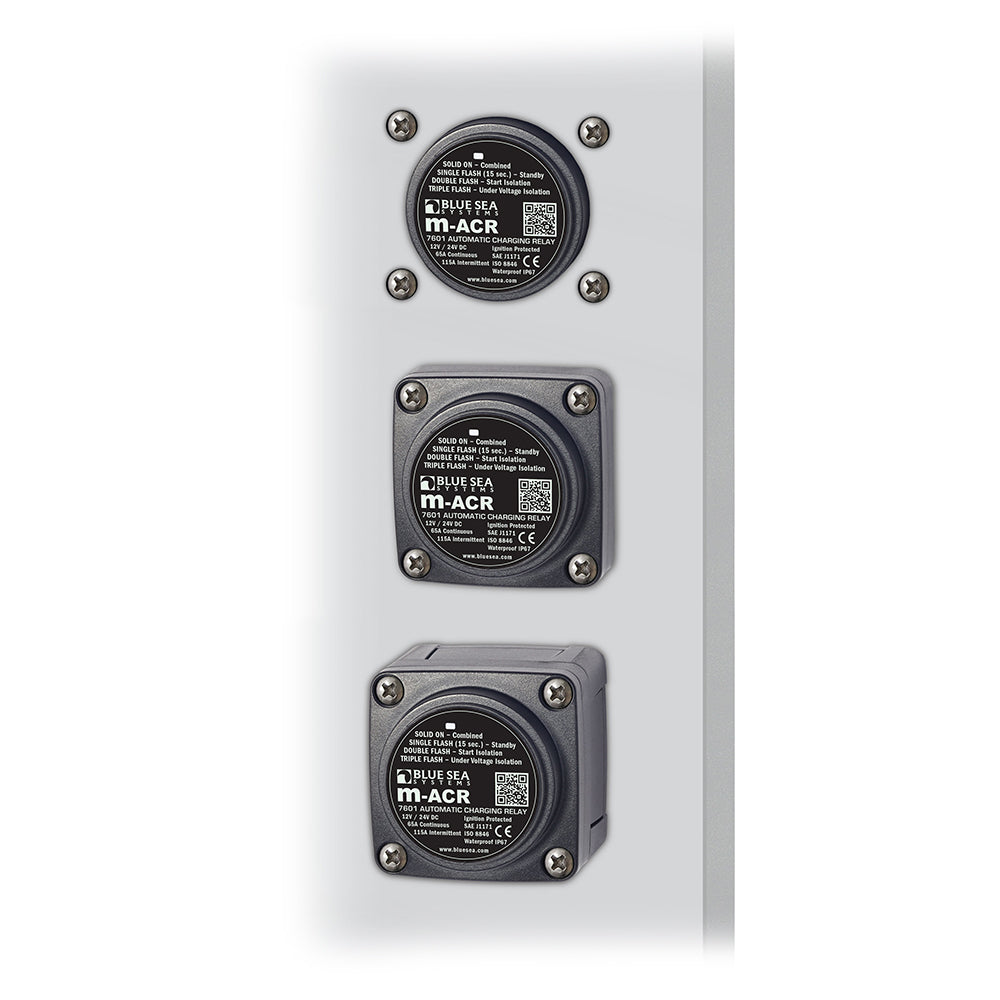

The Blue Sea Systems M-Series 7601-BSS 65A 12/24VDC Automatic Charging Relay is a mini automatic charging relay designed to manage the charging current from alternators up to 65 Amps found on most outboards and many inboard engines. It senses charging on two battery banks and has a pull off and snap on insulating cover. An LED indicates ACR status and it has a 1/4" x .032" male quick connect terminal for ground. Start Isolation (SI) protects sensitive electronics by temporarily isolating house loads from the engine circuit during engine cranking, protecting the house circuit from voltage sags and spikes. The compact design allows for three mounting styles: surface, rear, or panel mount. The M-ACR is also available as a module in a Custom 360 Panel.

Product Features

• Senses charging on two battery banks
• Pull off and snap on insulating cover
• LED indicates ACR status
• 1/4" x .032" male quick connect terminal for ground
• Start Isolation protects sensitive electronics
• Compact design allows for three mounting styles
• Available as a module in a Custom 360 Panel

Specifications

• Nominal Voltage: 12V DC, 24V DC
• Start Isolation: Yes
• Amperage Operating Current: 90mA (Combine), 15mA (Open)
• Terminal Stud Torque: 60 in-lb (6.78 Nm)
• Continuous Rating: 65A
• Intermittent Rating: 115A (5 min)
• Cable Size to Meet Ratings: 6 AWG
• Maximum Cable Size: 1/0 AWG
• Stud Material: Tinned Brass
• Terminal Stud Size: 1/4" - 20 (M6)
• Relay Contact Position:
• Combine 30 sec: 13.6V DC
• Open 10 sec: 12.35V DC
• Open 30 sec: 12.75V DC
• Open High: 16.0V
• Under Voltage Lockout: 9.5V

Learn More

• Relay
• Direct Current
• Alternating Current

Specifications

Product: Blue Sea Systems 7601-Bss M-Series Automatic Charging Relay 12/24Vdc 65A

Brand: Blue Sea Systems

Model: 7601
