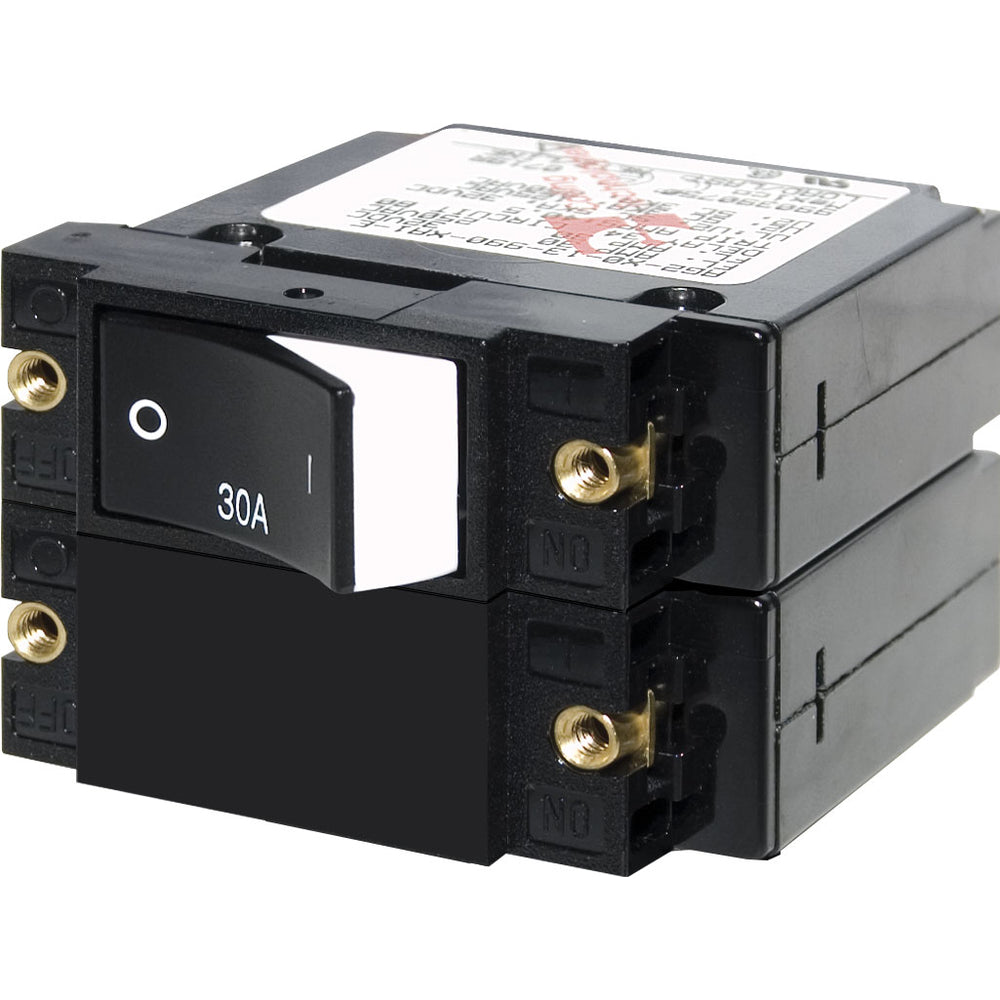

Blue Sea Systems 30A Double Pole A-Series Raised Rocker Circuit Breaker - 7574

The Blue Sea Systems 30A Double Pole A-Series Raised Rocker Circuit Breaker - 7574 is a reliable and efficient circuit breaker designed for various electrical applications. With its advanced features and high-quality construction, this circuit breaker ensures optimal performance and safety.

Product Features:

• Color actuator indicates "OFF" position
• "Trip Free" design cannot be held "ON" during fault current condition
• International ON/OFF symbols support vertical or horizontal mounting

Product Specifications:

• Amperage: 30A AC / 30A DC
• Actuator Style: Raised Rocker
• Poles: 2
• Maximum Voltage: 120V AC / 240V AC / 32V DC
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Interrupt Capacity: 3000A at 240V AC / 1500A at 240V AC[TUV] / 5000A at 32V DC
• Minimum Operating Temperature: -40&degC
• Maximum Operating Temperature: 85&degC
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in-lb (0.68 Nm)
• Screw Terminal Torque: 14 in-lb (1.58 Nm)
• Switching Cycles: 10,000
• Terminal Screw: #10-32 Stainless Steel
• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Learn More:

Circuit Breaker on Wikipedia

Specifications

Product: Blue Sea Systems 7574 A-Series Raised Rocker Circuit Breaker Double Pole 30A

Brand: Blue Sea Systems

Model: 7574

Additional Shipping Information:

Shipping Weight: 0.35 lb

Shipping Height: 2.00 in

Shipping Width: 4.00 in

Shipping Length: 5.00 in
