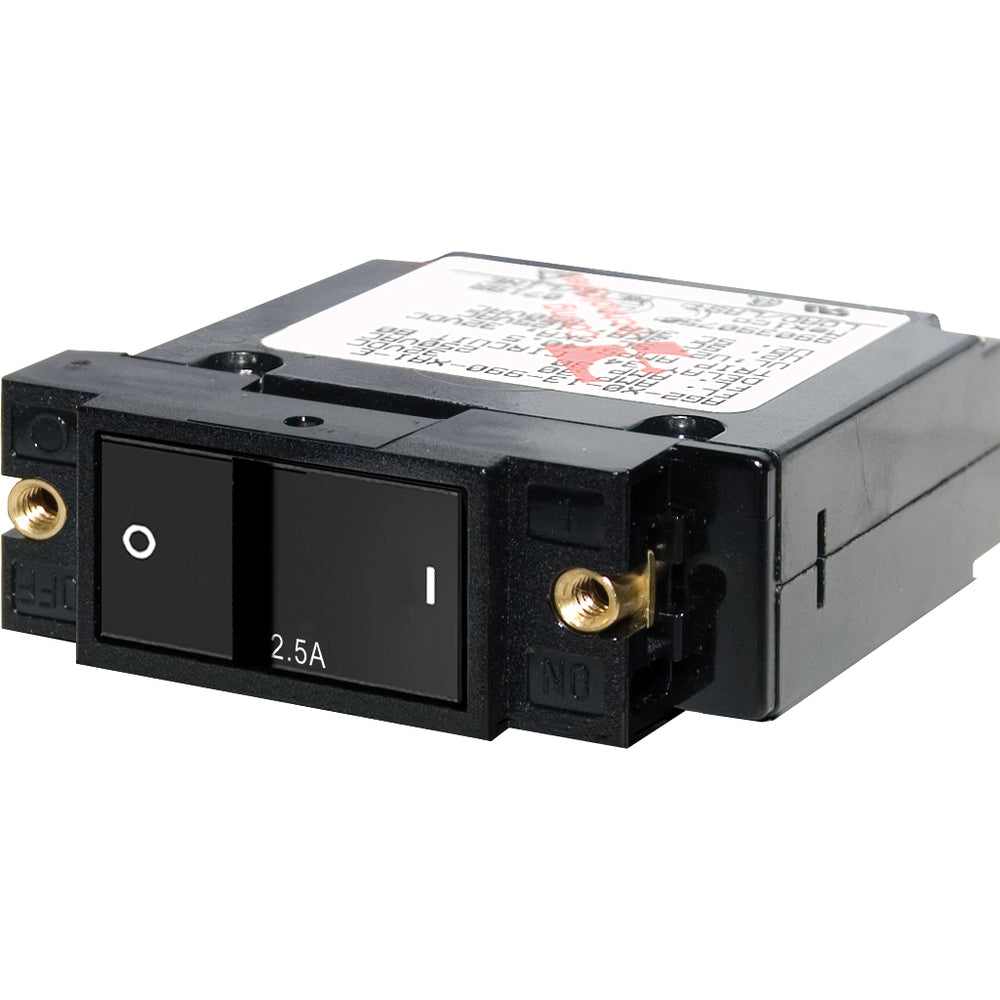

Blue Sea 7399 A-Series 2.5A Single Pole Flat Rocker Circuit Breaker

The Blue Sea 7399 A-Series 2.5A Single Pole Flat Rocker Circuit Breaker is a high-quality circuit breaker designed to provide reliable protection for your electrical circuits. With its innovative features and durable construction, this circuit breaker is an essential component for any electrical system.

Product Features:

• Rocker actuator is flush in the "ON" position, eliminating the risk of accidental switching
• Color actuator indicates "OFF" position
• "Trip Free" design cannot be held "ON" during fault current condition
• 2 different actuator styles available
• Prevents accidental switching of 24-hour circuits
• International ON/OFF symbols support vertical or horizontal mounting

Specifications:

• Amperage: 2.5A DC / 2.5A AC
• Actuator Style: Flat Rocker
• Poles: 1
• Max Voltage: 250V AC / 32V DC
• Circuit Breaker Type: Magnetic Hydraulic - Trip Free
• Interrupt Capacity: 3000A at 125V AC / 1500A at 250V AC / 5000A at 32V DC
• Minimum Operating Temperature: -40° C
• Maximum Operating Temperature: 85° C
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in-lb (0.68 Nm)
• Screw Terminal Torque: 14 in-lb (1.58 Nm)
• Switching Cycles: 10000
• Terminal Screw: #10-32 Stainless Steel
• Weight: 0.21lb (0.1 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Learn More:

• Circuit Breaker - Wikipedia

Specifications

Product: Blue Sea Systems 7399 A-Series Flat Rocker Circuit Breaker Single Pole 2.5A

Brand: Blue Sea Systems

Model: 7399

Additional Shipping Information:

Shipping Weight: 0.20 lb

Shipping Height: 1.00 in

Shipping Width: 3.00 in

Shipping Length: 5.00 in
