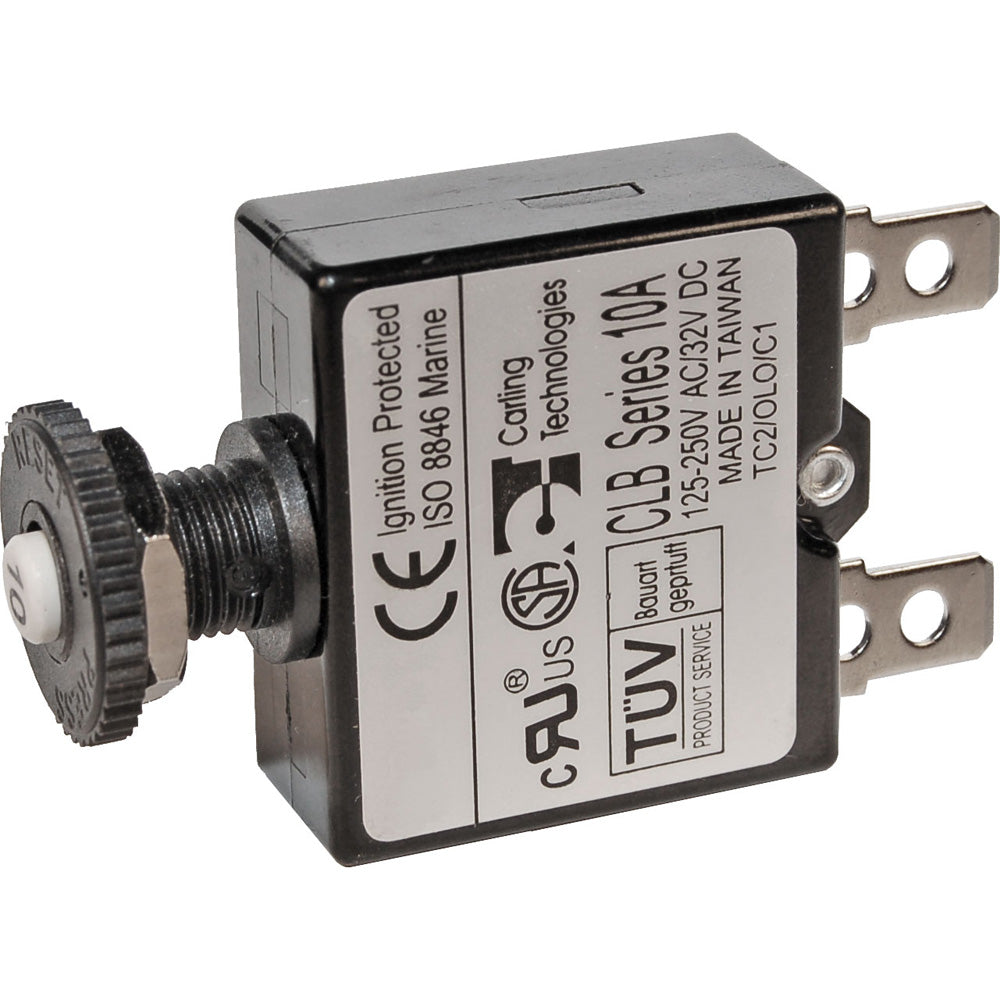

Blue Sea Systems 7052 Push Button Reset Quick Connect Circuit Breaker

The Blue Sea Systems 7052 Push Button Reset Quick Connect Circuit Breaker is a high-quality circuit breaker designed for branch circuit protection and can also be used for 24-hour circuit protection. This circuit breaker is specifically designed to be incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels, making it a versatile and reliable option for various marine applications.

The compact design of this circuit breaker enables high density circuit protection configurations, allowing for efficient use of limited space. Its push-to-reset operation ensures convenient and easy resetting of the breaker. The "Trip Free" design ensures that the breaker cannot be held "ON" during a fault current condition, providing enhanced safety and protection.

One of the notable features of the Blue Sea Systems 7052 Circuit Breaker is its ignition protection, making it safe for installation aboard gasoline-powered boats. This ensures worry-free operation even in potentially hazardous environments.

For added protection in wet environments, an optional Push Button Waterproof Boot is available. This boot protects the circuit breaker, replaces the dress nut mounting on circuit breakers, and resists discoloration and cracking.

Product Features:

• Branch circuit breakers (can also be used for 24-hour circuit protection)
• Quick connect terminal style circuit breakers
• Incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
• Compact design enables high density circuit protection configurations
• Push-to-reset operation
• "Trip Free" design cannot be held "ON" during fault current condition
• Ignition protected - Safe for installation aboard gasoline powered boats
• Optional Push Button Waterproof Boot available

Specifications:

• Amperage: 5A
• Maximum Voltage: 32vDC
• Mounting: Panel Mount 3/8-27 UNS
• Circuit Breaker Type: Thermal trip, manual push-button reset only
• Terminal Type: 1/4 Male Quick Connect
• Interrupt Capacity: 3000A at 14.7V, 2500A at 28V
• Minimum Operating Temperature: -10&degC
• Maximum Operating Temperature: 60&degC

Learn More:

• Circuit Breaker - Wikipedia

Specifications

Product: BLUE SEA SYSTEMS 7052 Push Button Reset Only Quick Connect Circuit Breaker

Brand: Blue Sea Systems

Model: 7052

Additional Shipping Information:

Shipping Weight: 0.20 lb

Shipping Height: 2.00 in

Shipping Width: 2.00 in

Shipping Length: 4.00 in
