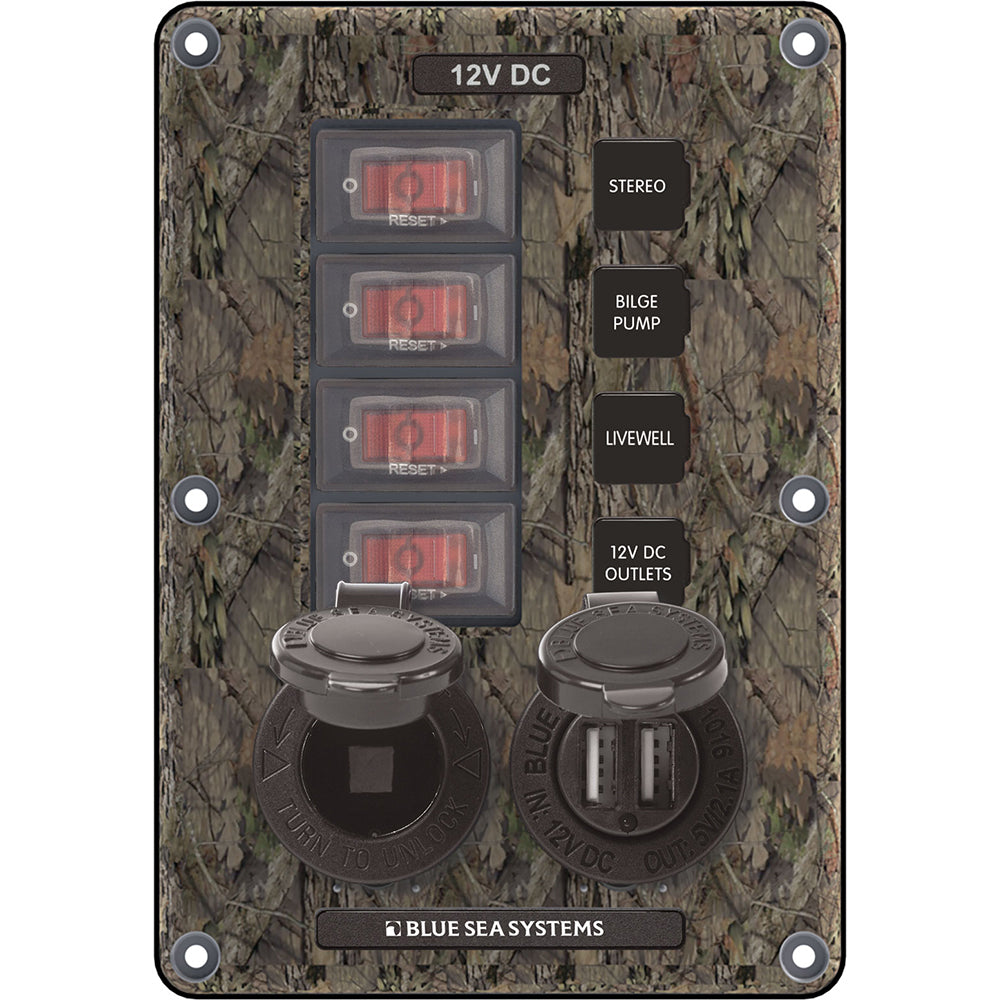

Blue Sea Systems 4324 Camo 4-Position 12V Circuit Breaker Switch Panel

The Blue Sea Systems 4324 Camo 4-Position 12V Circuit Breaker Switch Panel is designed for exposed mounting applications. It features illuminated 15A circuit breakers that provide switching, "ON" indication, and overcurrent protection. The industry-standard sizes and mounting allow for easy retrofitting in existing applications.

The polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and corrosion-resistant. It is equipped with silicon breaker boots and gasket to protect against water ingress. The low profile design makes it easy to install in tight spaces.

Fast-on circuit breaker connectors enable quick wiring, and the two-wire connection for powering all panels is simple and requires #10 ring terminals. The terminals screw to bus bars for secure connections. A set of 15 square format circuit labels are included and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems.

Features:

• Illuminated 15A circuit breakers provide switching, "ON" indication, and overcurrent protection
• Industry-standard sizes and mounting allow these panels to be easily retrofitted in an existing application
• Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
• Silicon breaker boots and gasket protect against water ingress
• Low profile makes it easy to install in tight spaces
• Fast-on circuit breaker connectors make it quick to wire
• Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
• Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems

Specifications:

• Color: Camo
• Positions: 4
• Nominal Voltage: 12 VDC
• Maximum Amperage: 45A
• Terminal Type: 1/4" Male Quick Connect
• Hardware: Stainless Steel #6 x 5/8" mounting screws
• Ring Terminal Size: M5 (#10)

Learn More

• Circuit Breaker
• USB

Specifications

Product: Blue Sea Systems 4324 Circuit Breaker Switch Panel 4 Postion Camo 12V Socket

Brand: Blue Sea Systems

Model: 4324

Additional Shipping Information:

Shipping Weight: 0.70 lb

Shipping Height: 3.00 in

Shipping Width: 6.00 in

Shipping Length: 10.00 in
