Blue Sea Systems 4180 - 15A Backlit Push Button Off-On Switch (BSS 4180)

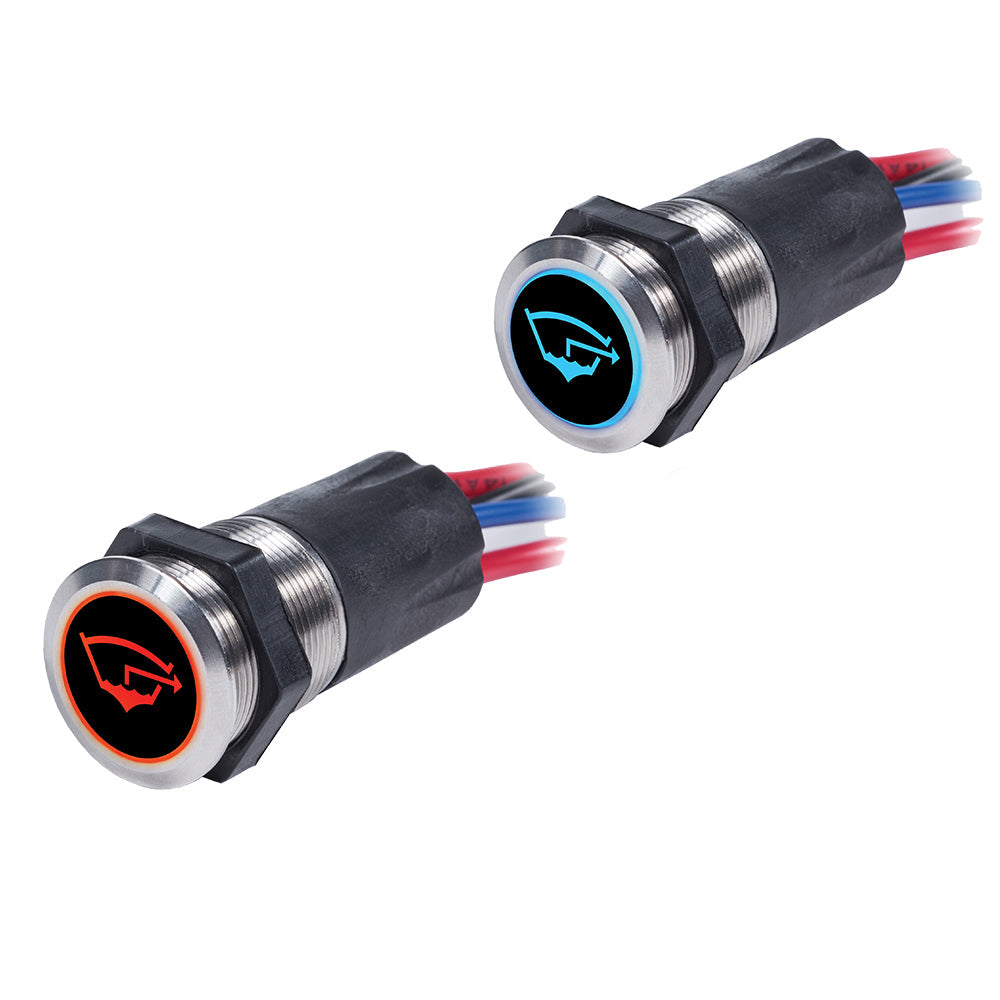

The Blue Sea Systems 4180 - 15A Backlit Push Button Off-On Switch (BSS 4180) is a high-quality switch designed for various marine applications. This switch features a backlit button that illuminates blue when in the OFF position and red when in the ON position, providing clear visibility even in low light conditions.

Product Features:

• Backlit button is blue when OFF and red when ON
• Includes five ICON labels: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump

Specifications:

• Action: OFF-ON
• Amperage: 15A at 12V DC
• Nominal Voltage: 12V DC
• Maximum Voltage: 15V DC
• Maximum LED Operating Current: 20mA
• Max Panel Thickness: 0.24in (6.1 mm)
• Mounting Hole: 7/8" (22mm)
• Switching Cycles: 10,000
• Temperature Range: -20&degC to 55&degC
• Termination: 3" - Bare Wire Pigtail

Learn More:

• Blue Sea Systems on Wikipedia

Specifications

Product: Blue Sea Systems 4180-Bss 4180 15A Push Button Backlit Switch Off-On

Brand: Blue Sea Systems

Model: 4180

Additional Shipping Information:

Shipping Weight: 0.10 lb

Shipping Height: 2.00 in

Shipping Width: 3.00 in

Shipping Length: 10.00 in
