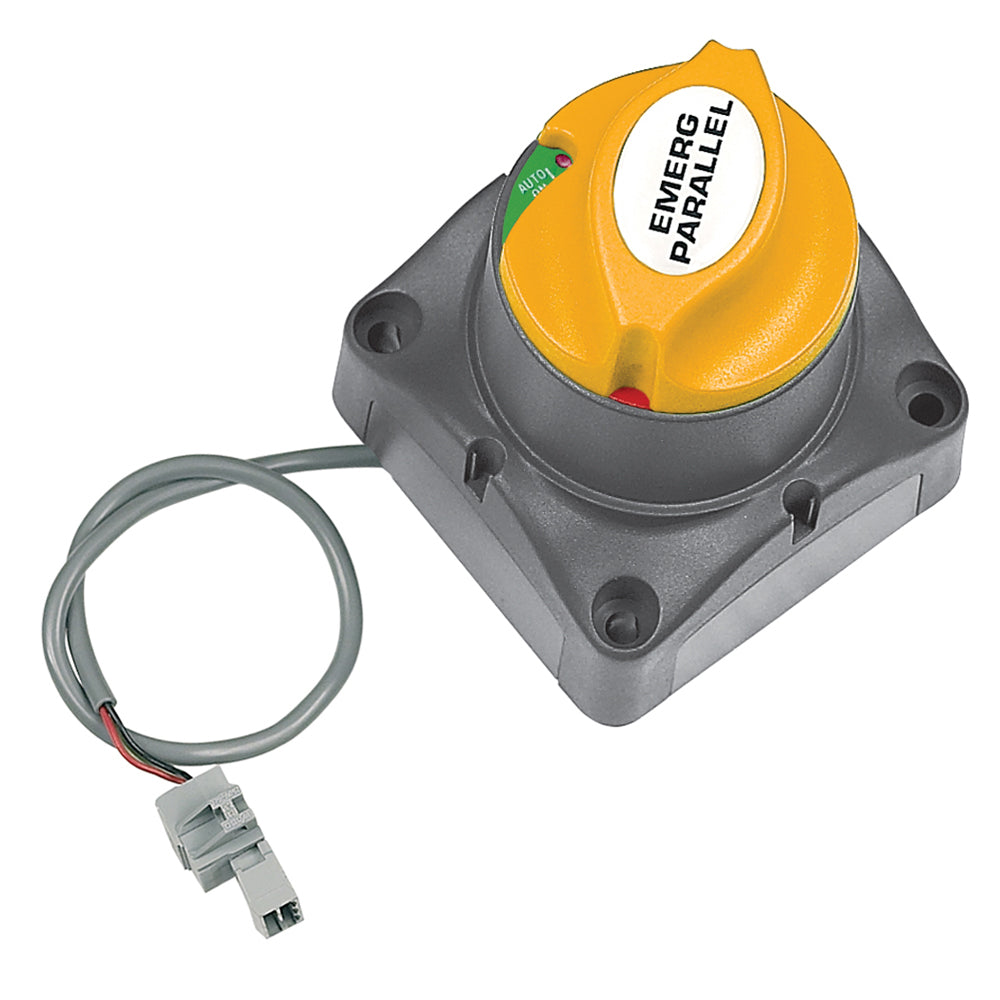

Bep Marine 80-701-0018-00 Dual Operation VSS and Emergency Parallel 275A

The Bep Marine 80-701-0018-00 Dual Operation VSS and Emergency Parallel 275A is a motorized switch designed specifically for the harsh marine environment. It offers high current emergency parallel connection functionality, allowing for emergency starting of engines with a maximum current of up to 1250 Amps for 10 seconds. This switch is ideal for situations where immediate engine starting is crucial.

The emergency parallel functionality of this switch is conveniently operated via a momentary button on the dash. When activated, the switch will parallel the batteries for 10 minutes, providing ample time for emergency starting. After the 10 minutes have passed, the switch automatically turns off, eliminating the risk of start batteries becoming drained if the parallel switch is inadvertently left on.

Constructed using high-quality materials, this switch ensures longevity and durability. It features tinned copper conductors, stainless steel nuts, and high-temperature, fiber-reinforced plastics. These materials are specifically chosen to withstand the harsh marine environment and provide reliable performance.

The Bep Marine 80-701-0018-00 switch is ignition protected and offers On/Off switching operation. It can be easily recessed or surface mounted, providing flexibility in installation options.

Features:

• Manual override option
• 10-minute remotely activated emergency parallel function (no voltage sensitive function)
• 12/24 volt operation (both battery banks must be the same voltage)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Specifications:

• Maximum Current: 275A
• Operating Voltage: 12/24 volts
• Battery Compatibility: Both battery banks must be the same voltage
• Materials: Tinned copper conductors, stainless steel nuts, high-temperature fiber-reinforced plastics
• Ignition Protection: Yes
• Mounting Options: Recessed or surface mounted

Learn More:

• Motorized Switch - Wikipedia
• Emergency Starting System - Wikipedia
• Ignition System - Wikipedia

Specifications

Product: Bep Marine 80-701-0018-00 Dual Operation Vss And Emergency Parallel 275A

Brand: Bep Marine

Model: 80-701-0018-00

Additional Shipping Information:

Shipping Weight: 0.80 lb

Shipping Height: 3.00 in

Shipping Width: 3.00 in

Shipping Length: 4.00 in
