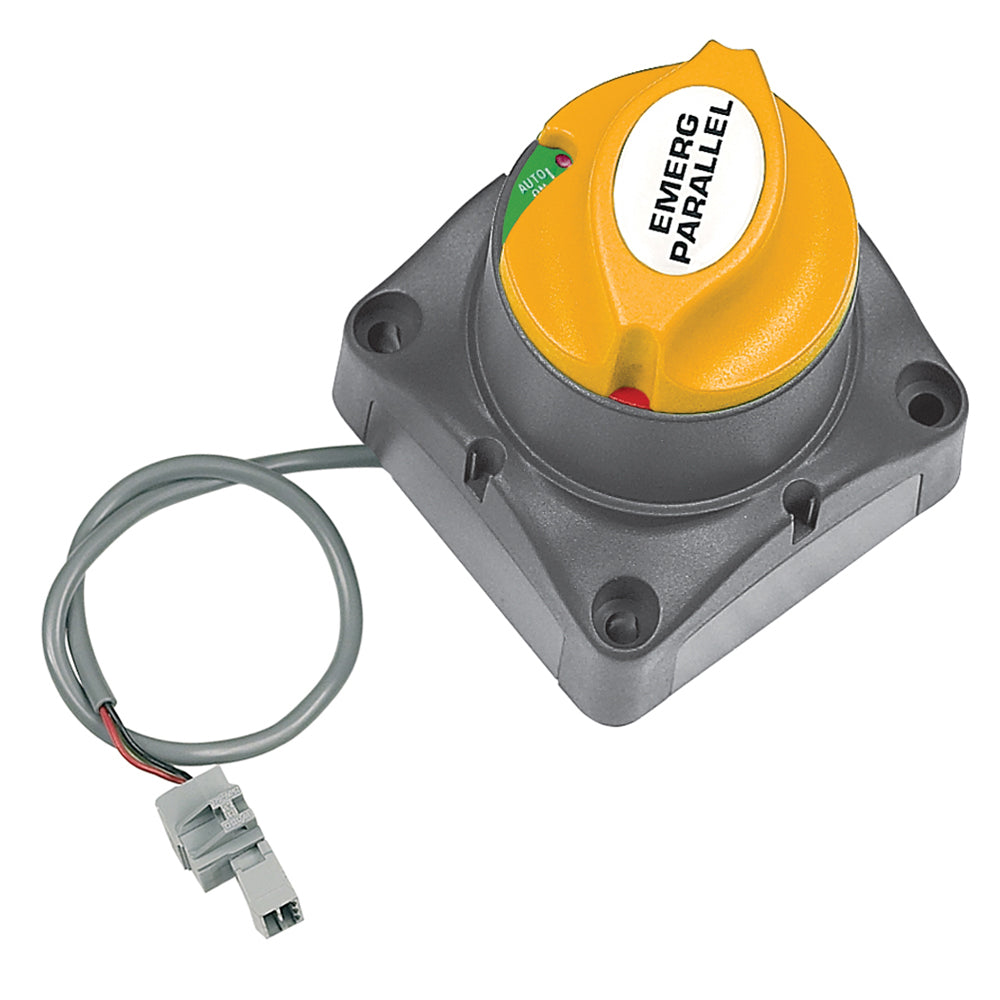

Bep Marine 701-MDVS 275A Dual Operation Motorized VSS Switch

The Bep Marine 701-MDVS 275A Dual Operation Motorized VSS Switch is a high-quality voltage sensitive switch designed specifically for marine environments. It automatically senses connected battery bank voltages and provides optimal, efficient charging of the second bank. This switch allows for independent battery banks to be combined or isolated based on the presence of a charging source, such as an engine alternator or battery charger.

In addition, the Bep Marine 701-MDVS 275A Dual Operation Motorized VSS Switch offers a remotely activated, high current, emergency parallel connection. This feature allows for quick and easy parallel connection of battery banks in emergency situations. The switch is designed for longevity with tinned copper conductors, stainless steel nuts, and high temperature, fiber-reinforced plastics. It is also ignition protected and can be recessed or surface mounted.

Features:

• Dual battery sensing
• Manual override option

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Specifications:

• Switch Type: Voltage Sensitive Switch (VSS)
• Max Amperage: 275A
• Dual Operation: Yes
• Motorized: Yes
• Battery Banks: 2
• Construction: Tinned copper conductors, stainless steel nuts, high temperature fiber-reinforced plastics
• Ignition Protection: Yes
• Mounting: Recessed or surface mounted
• Emergency Parallel Function: Yes, remotely activated
• Emergency Parallel Duration: 10 minutes
• Voltage Sensitivity: Automatically senses connected battery bank voltages

Learn More:

For more information about voltage sensitive switches, please visit the Voltage-sensitive switch Wikipedia page.

For more information about marine electrical systems, please visit the Marine electrical systems Wikipedia page.

Specifications

Product: Bep Marine 701-Mdvs Dual Operation Vss Switch 275A Cont Motorized

Brand: Bep Marine

Model: 701-MDVS

Additional Shipping Information:

Shipping Weight: 0.80 lb

Shipping Height: 3.00 in

Shipping Width: 3.00 in

Shipping Length: 4.00 in
