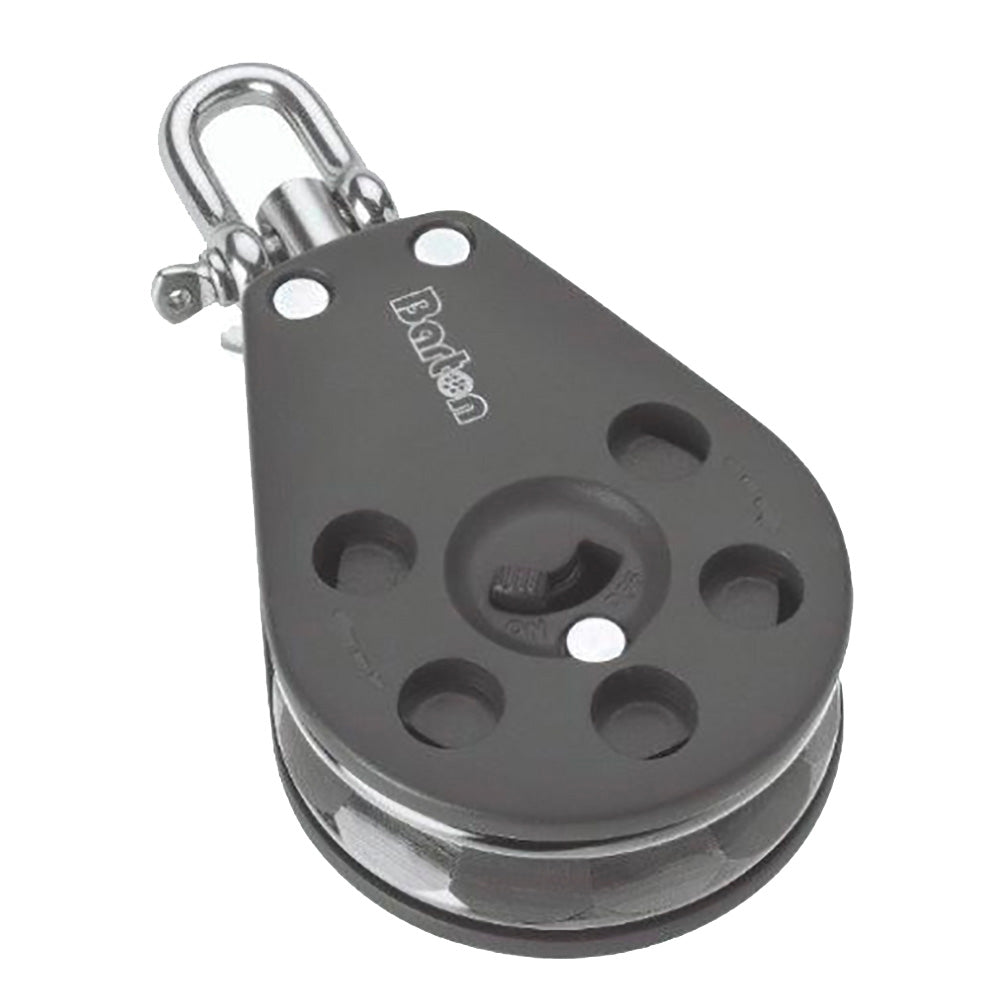

Barton Marine 55mm N90 500 Ratchet Block for Sailing & Boating

The Barton Marine 55mm N90 500 Ratchet Block is a high-performance sailing and boating accessory designed for mainsheet systems and spinnaker sheets on dinghies, keelboats, and small yachts up to 30 feet. It combines cutting-edge engineering with a contemporary design, providing sailors with an exceptional level of control and ease of use.

The 55mm ratchet block is the first in a planned range of sizes and features a stainless steel lever that allows users to lock the swivel head if desired. This innovative design allows sailors to easily hand hold loaded lines while maintaining a balance between holding power and controlled easing.

The Ratchet Block is specifically engineered for longevity and low friction in harsh marine environments. Its body is constructed from a composite of high-density nylon and glass fiber reinforced polymer, offering exceptional durability and UV protection. The internal components are made from marine-grade 316 stainless steel, ensuring superior corrosion resistance. The 12-faced aluminum sheave is anodized in gunmetal silver, further enhancing its durability and performance.

Product Features:

• Designed for mainsheet systems and spinnaker sheets on dinghies, keelboats, and small yachts up to 30 feet
• High-performance engineering and contemporary design
• Stainless steel lever for locking the swivel head
• Allows sailors to hand hold loaded lines with ease
• Combines holding power and controlled easing
• Low friction and longevity in harsh marine environments
• Body made from high-density nylon and glass fiber reinforced polymer
• High level of UV protection
• Internal components made from marine-grade 316 stainless steel
• Anodized 12-faced aluminum sheave in gunmetal silver

Specifications:

• Safe Working Load: 300 kg/ 661 lbs
• Breaking Load: 1200 kg/ 2646 lbs

Learn More:

For more information about ratchet blocks, please visit the Wikipedia page on Ratchet Blocks.

Specifications

Product: Barton Marine N90 500 55Mm Ratchet Block

Brand: Barton Marine

Model: N90 500

Additional Shipping Information:

Shipping Weight: 0.30 lb

Shipping Height: 2.00 in

Shipping Width: 3.00 in

Shipping Length: 6.00 in
