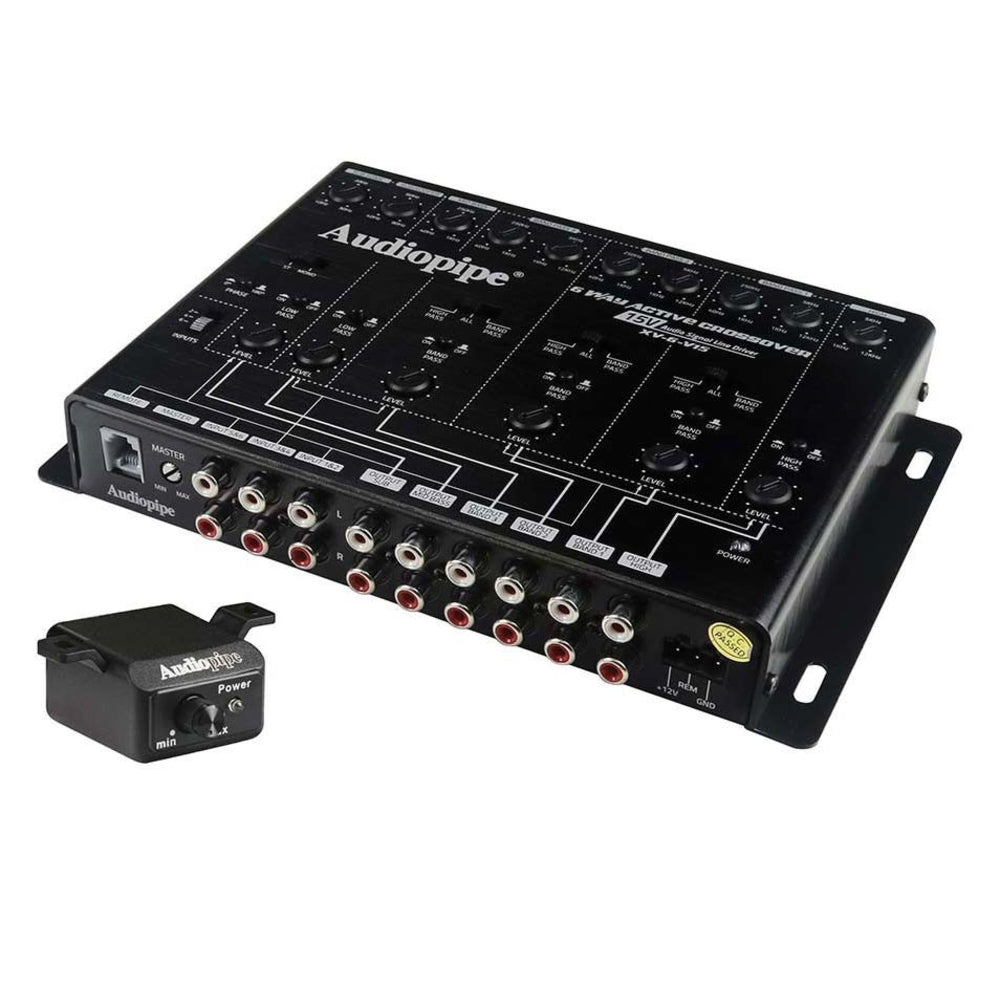

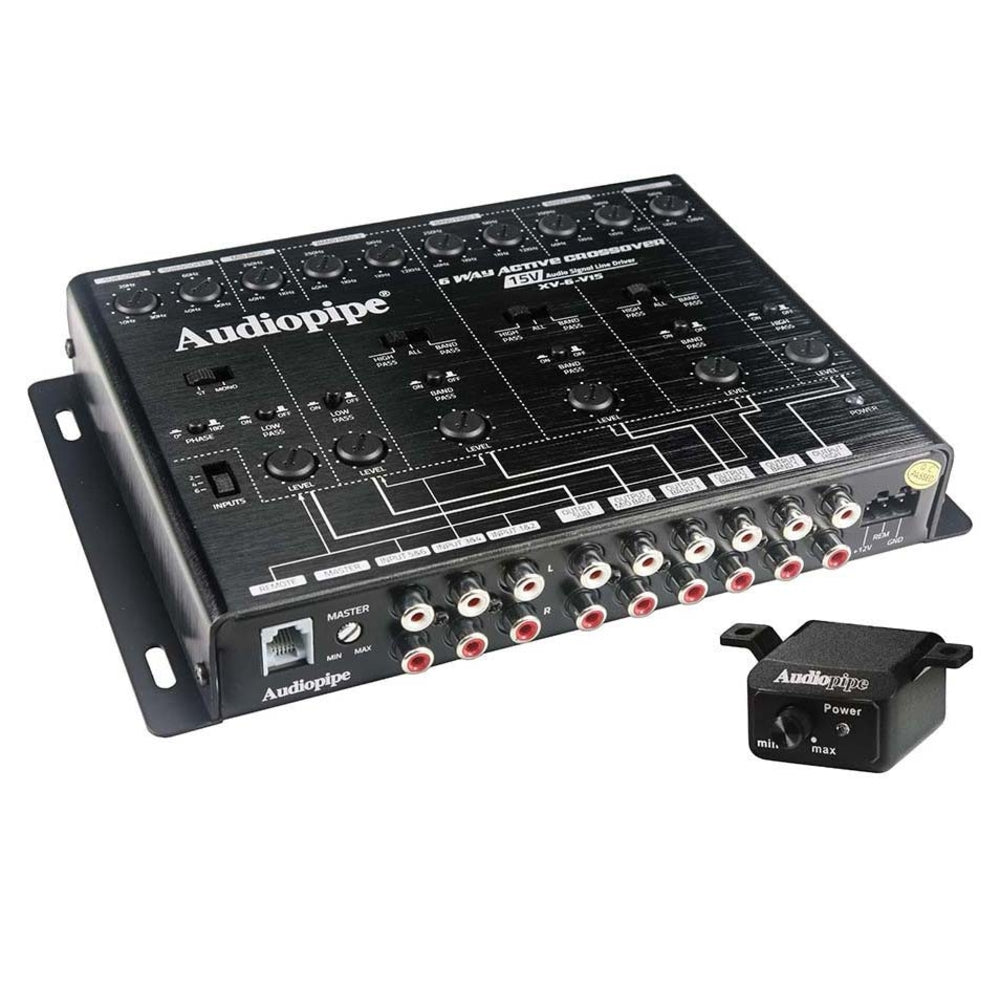

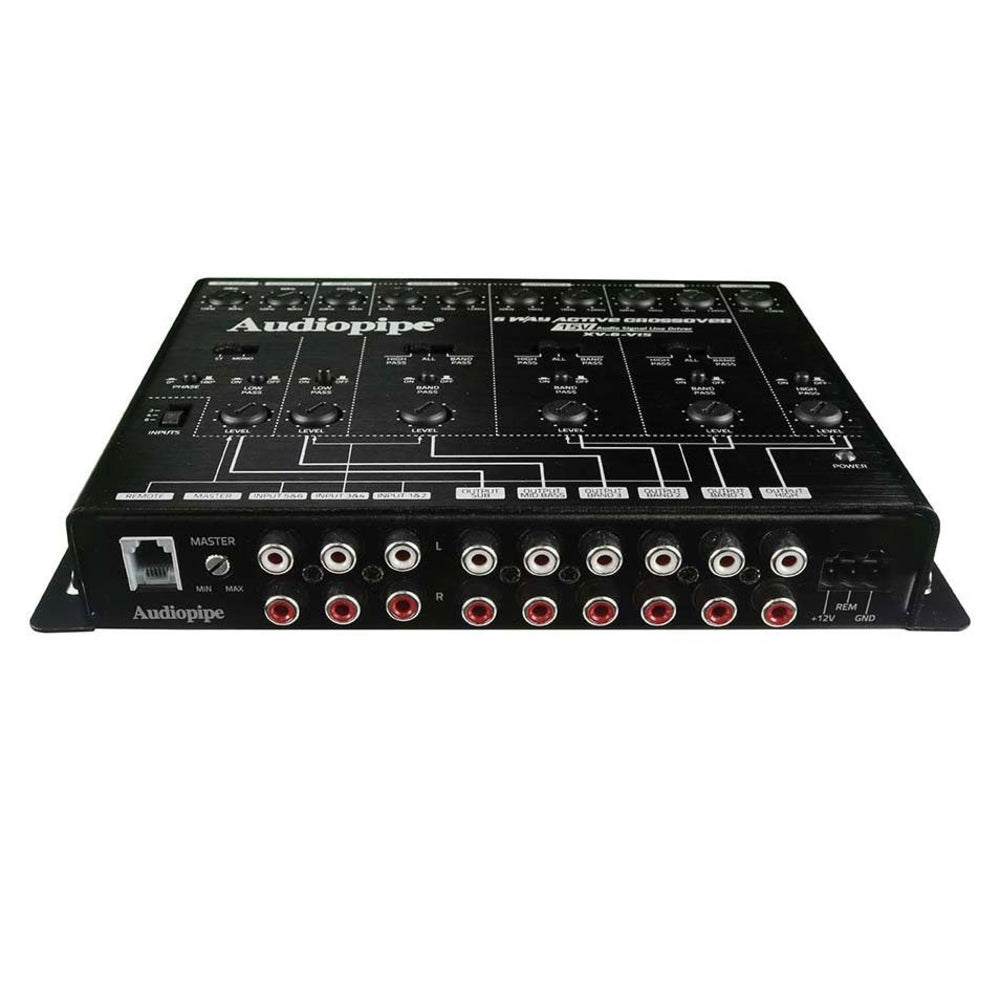

Audiopipe Xv6V15 6 Way Crossover with 8 Input and 12 Output Channels

The Audiopipe Xv6V15 is a powerful 6-way active crossover designed to enhance your audio experience. With 8 channels for input and 12 channels for output, this crossover allows you to fine-tune your sound system to perfection.

Product Features:

• 6 channels input/12 channels output
• Remote subwoofer level control
• Master gain control
• Independent gain control per pair of channels
• HP/ALL/BP switchable
• Mono/Stereo switch
• Phase: 0 or 180 out
• 2/4/6 channel input selector
• 15 volts RMS line-driver
• High/Tweeter: 1KHz - 12KHz at 12dB/octave
• 3 sets of Bandpass channels: Floor: 40Hz-1KHz, Ceiling: 1KHz-12KHz at 12dB/octave
• Midbass: 40Hz - 1KHz at 12dB/octave
• Subwoofer: 40Hz - 90Hz at 12dB/octave
• Subsonic filter: 10Hz - 30Hz at 18dB/octave
• On/Off switch per pair of outputs for easy fine tuning
• Signal to noise ratio: -105dB A-weighted
• Total harmonic distortion: <0.04%
• Stereo separation: >70dB
• Continuously variable crossover frequency with multiplier switch
• Separate inputs for front, rear and subwoofer
• Front and rear high pass outputs
• Non-fade low pass output
• Adjustable low pass gain
• Subwoofer bass boost
• Ground loop isolation input circuit
• Remote turn-on circuit
• Power-on LED

Specifications:

• Product Type: 6-Way Active Crossover
• Input Channels: 8
• Output Channels: 12
• Line Driver Voltage: 15 volts RMS
• High/Tweeter Frequency Range: 1KHz - 12KHz at 12dB/octave
• Bandpass Frequency Range: Floor: 40Hz-1KHz, Ceiling: 1KHz-12KHz at 12dB/octave
• Midbass Frequency Range: 40Hz - 1KHz at 12dB/octave
• Subwoofer Frequency Range: 40Hz - 90Hz at 12dB/octave
• Subsonic Filter Frequency Range: 10Hz - 30Hz at 18dB/octave
• Signal to Noise Ratio: -105dB A-weighted
• Total Harmonic Distortion: <0.04%
• Stereo Separation: >70dB

Learn More:

• Audio Signal Processing on Wikipedia
• Crossover (Electronics) on Wikipedia

Specifications

Product: Audiopipemap Xv6V15 Audiopipe 6 Way Crossover 8 Ch. Input 12 Output

Brand: Audiopipe

Model: XV6V15

Additional Shipping Information:

Shipping Weight: 3.00 lb

Shipping Height: 3.25 in

Shipping Width: 9.00 in

Shipping Length: 10.75 in
