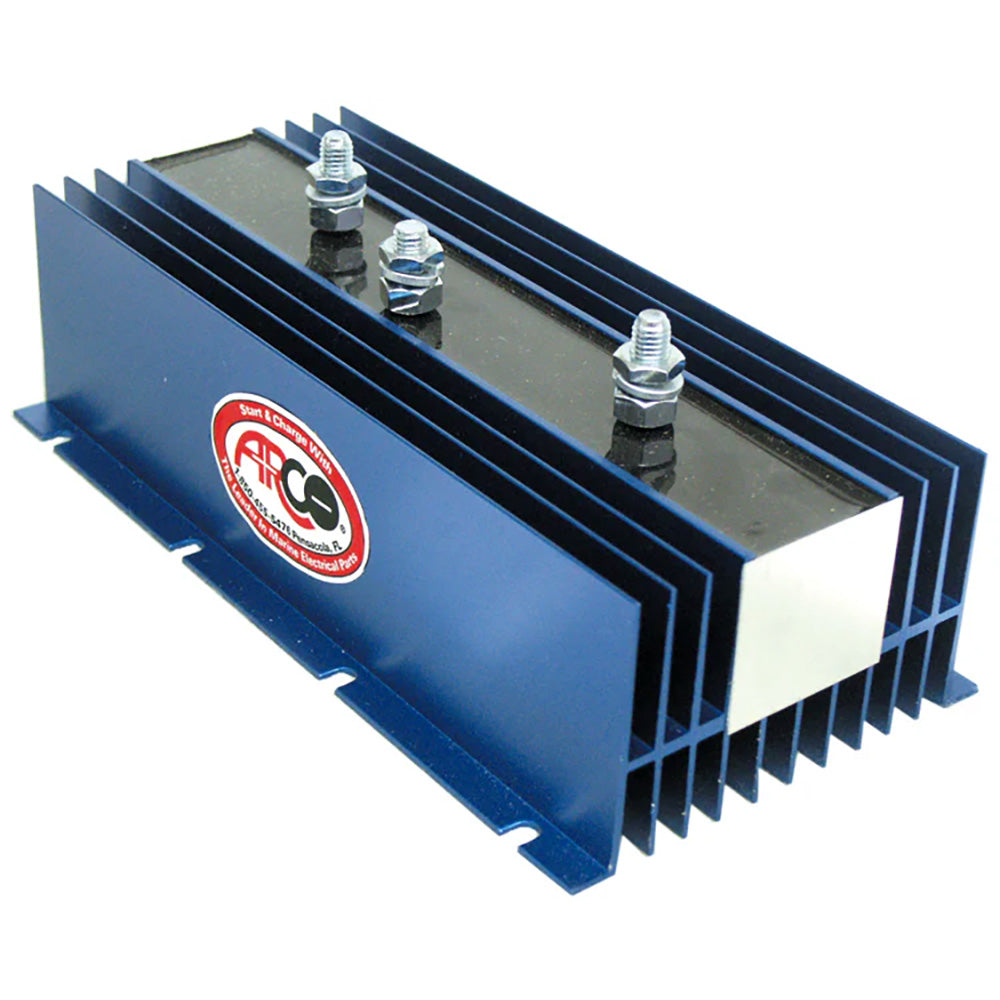

Arco BI-1602 Marine Battery Isolator for 10-350A Alternators

The Arco Marine BI-1602 is an inboard/outboard battery isolator that can handle 1 alternator, 2 batteries, and 160A max. Rated for use with 10 to 350-amp alternators on 12, 24, or 32-volt negative ground systems.

Features:

• 1 alternator, 2 batteries, 160A max
• Inboard and outboard battery isolators are solid-state devices that allow electrical current to flow in one direction ONLY, thus permitting the alternator to be connected directly to two batteries without fear of one higher-charged battery discharging into the lower-charged battery.
• Both batteries are always being charged automatically, in proportion, to their needs whenever the engine is running.
• When battery isolators are used in conjunction with selector switches, it is not necessary to change the switch position to provide for charging of both batteries.
• Isolators provide proportioning of the output or charging current on the alternator to the batteries as required, regardless of switch position.

NOTE: Battery Isolators cannot be used on 12 volt charging systems with 24 volt trolling motors or er outboard engines with rectifier-regulator charging systems.

Specifications:

• For use with 10 to 350A alternators
• Compatible with 12, 24, or 32V negative ground systems
• Handles 1 alternator, 2 batteries
• Maximum current: 160A

Learn More

• Marine Battery
• Battery Isolator

Specifications

Product: Arco BI-1602 Marine Battery Isolator for 10-350A Alternators

Brand: ARCO Marine

Model: BI-1602

Additional Shipping Information:

Shipping Weight: 3.65 lb

Shipping Height: 4.00 in

Shipping Width: 5.00 in

Shipping Length: 11.00 in
