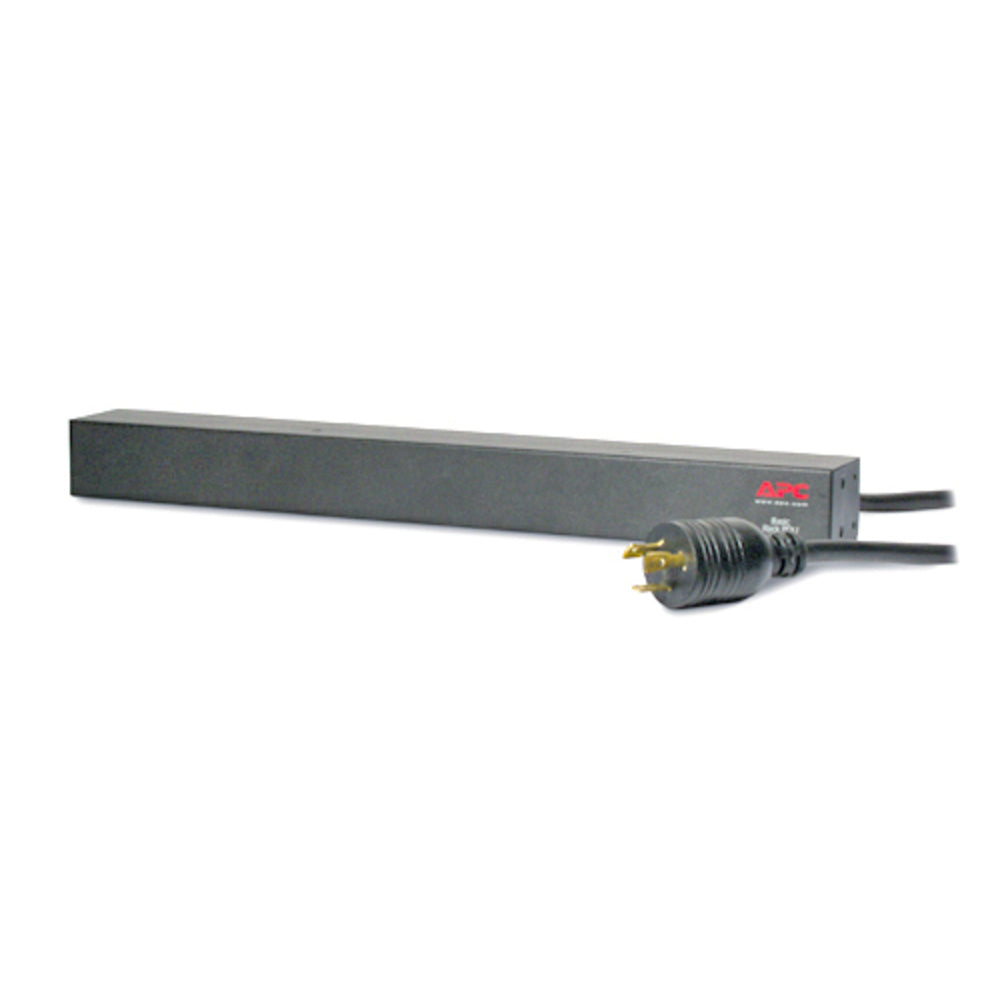

Apc AP9566 Basic Rack 1U Power Distribution Strip

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Features:

• Nominal output voltage: 208
• AC input frequency: 50 - 60
• Nominal input voltage: 208
• Cable length: 3.66
• Load capacity: 3328
• Product color: Black
• Input connection type: NEMA L6-20P
• Output connections: 12x IEC 320 C13
• Maximum total current draw per phase: 16
• Maximum input current per phase: 20
• Dimensions (WxDxH): 447 x 57 x 44
• Weight: 2500
• Storage temperature (T-T): -25 - 65
• Operating temperature (T-T): 0 - 45
• Certification: cUL Listed,CSA,UL 60950,UL Listed, RoHS 7b Exemption

Specifications:

• Input: 208V
• Input Connections: NEMA L6-20P
• Cord Length: 12 feet (3.66 meters)
• Output: 208V
• Output Connections: IEC 320 C13

Learn More:

• Power Distribution Unit (Wikipedia)

Specifications

Product: APC BY SCHNEIDER ELECTRIC AP9566 BASIC RACK 1U POWER DISTRIBUTION STRIP

Brand: APC by Schneider Electric

Model: AP9566
