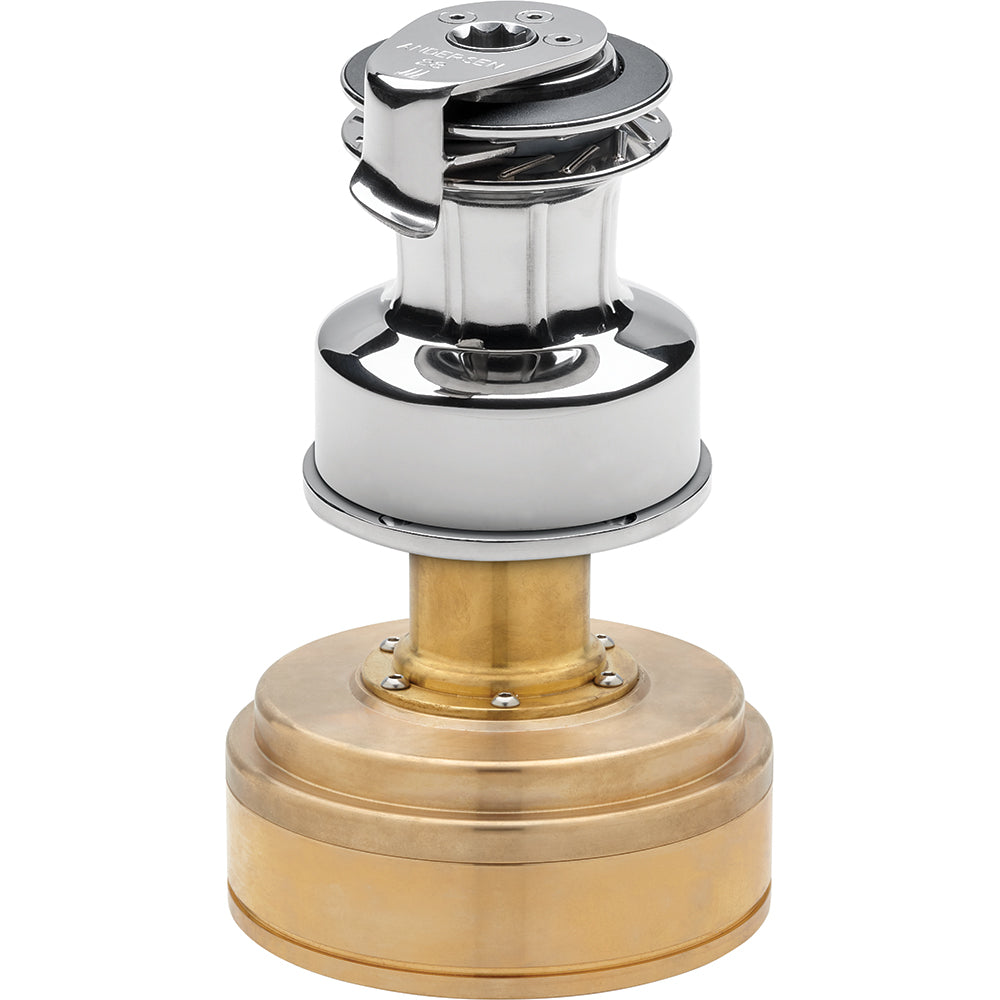

Andersen RA2040014100 40ST Compact Below Deck Electric Winch with Variable Speed

The Andersen RA2040014100 40ST Compact Below Deck Electric Winch with Variable Speed is a powerful and efficient electric winch designed for hoisting and trimming sails with ease. With its compact motor and variable speed functionality, this winch allows any crew member to control lines and trim sails at the push of a button, regardless of physical strength.

Features:

• Ease of installation: The Andersen Compact Motor™ electric winch is available in two formats for either Above Deck or Below Deck motor placement. It features an integrated motor gearbox and controller in one compact unit, eliminating the need for an extra control box. The installation process is simplified, requiring only the connection of positive and negative power cables to the motor terminals and the connection of the included output cable to the push button.
• Efficient, variable speed: The Andersen Compact Motor™ is equipped with a brushless DC motor and a low-profile planetary gearbox, which requires less installation space and draws less current compared to traditional motor/gearbox configurations. It operates at variable speed, smoothly adjusting to the pressure applied to the push button, ensuring quiet and efficient operation. The winch is available in 12V and 24V models.
• Illuminated "intelligent" push button: The winch comes with a push button that features an integrated LED, illuminating when power is supplied to the winch system. The push button has a hinged safety cover to prevent accidental winch operation and is water-resistant (rated IP67). It also works with the controller to display status codes, aiding in troubleshooting. The package includes a cable for convenient installation of the push button.
• Built-in protection:
  • - Integrated overload protection: The winch's controller is pre-set to stop operation if the maximum pull load is exceeded. It can resume operation within seconds once the load returns below the limit.
  • - Thermal overload protection: The motor is equipped with a thermal cutout that disables it in case of overheating, automatically resetting when the temperature returns to normal.
• Exclusive stainless steel Power Rib™ drum: Like all ANDERSEN Winches™, this Compact Motor™ Electric Winch features the exclusive stainless steel Power Rib™ drum, providing maximum power and extended line life. The winch also includes Andersen's self-tailing device, which automatically accommodates a wide range of different line sizes.

Specifications:

• Drum: 2-15/16 in. (75 mm)
• Base: 6 in. (152 mm)
• Height: 7-1/16 in. (180 mm)
• Line Entry: 3-1/8 in. (79 mm)
• Line Size: 5/16-9/16 in. (8-14 mm)
• Weight: 40 lbs. (18 kg)
• Max Deck Thickness: 2-1/8 in. (54 mm)
• Motor Depth: 7-1/16 in. (180 mm)
• Motor: 7-11/16 in. (195 mm)

Learn More:

For more information about electric winches, please visit the Electric Winch Wikipedia page.

Specifications

Product: Andersen Ra2040014100 40St Compact Below Deck Electric Fs Winch Variable Speed

Brand: Andersen

Model: RA2040014100

Additional Shipping Information:

Shipping Weight: 41.70 lb

Shipping Height: 13.00 in

Shipping Width: 14.00 in

Shipping Length: 15.00 in
