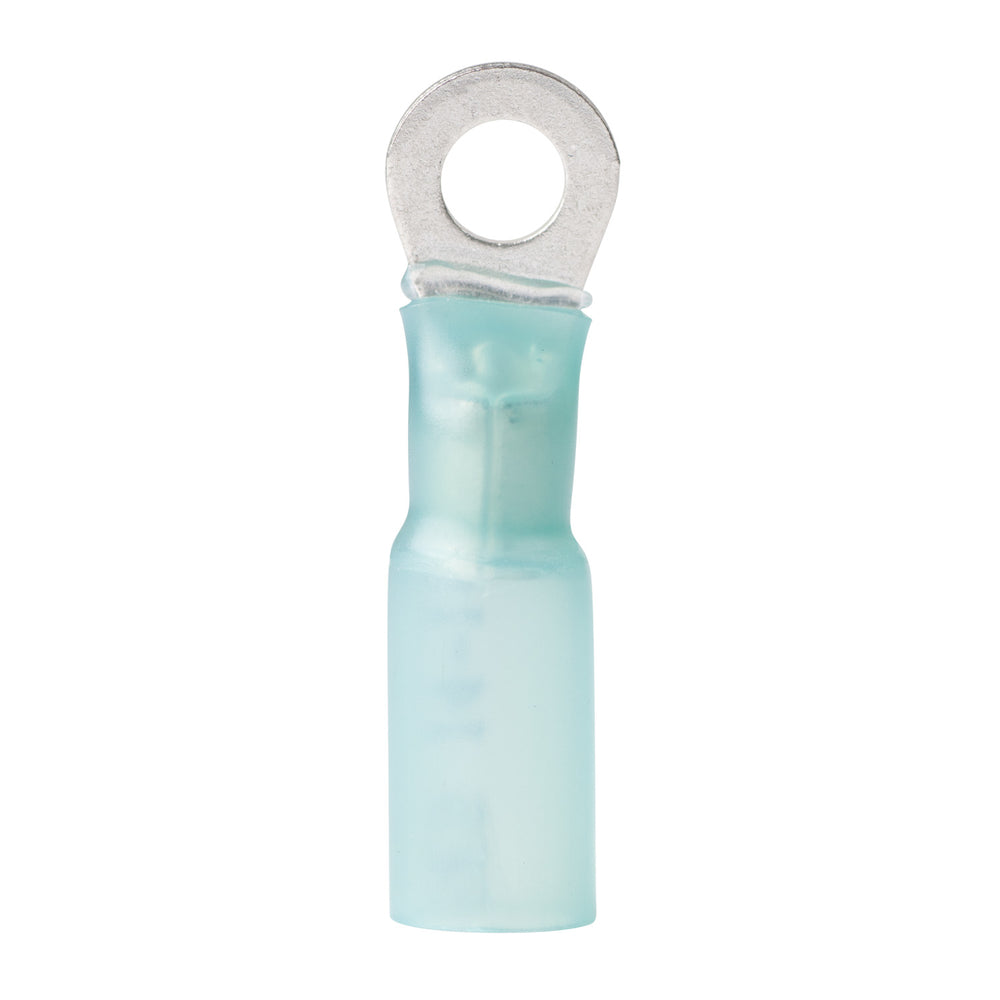

Ancor 311225 Heat Shrink Ring Terminal 25-Pack - 16-14 Gauge, 8 Size

Introducing the Ancor 311225 Heat Shrink Ring Terminal 25-Pack - the ultimate solution for all your electrical connection needs. This pack includes 25 high-quality ring terminals, designed specifically for 16-14 gauge wires and #8 screws. With a wide range of features and benefits, this product is perfect for various applications.

Product Features:

• Cross Linked polyolefin tubing: The tubing used in these ring terminals is made of cross-linked polyolefin, which is significantly stronger than PVC tubing. It provides superior resistance to burning and ensures long-lasting performance.
• Heat activated adhesive lining: The terminals are equipped with a heat-activated adhesive lining that creates an impervious seal. This seal offers protection against saltwater, oil, acids, and sunlight. Additionally, it provides excellent strain relief for added durability.
• Nylon insulator: The nylon insulator used in these ring terminals is the preferred choice of experts. It offers Marine Grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.
• UL Listed and CSA Recognized: These ring terminals meet the highest safety standards and are UL Listed and CSA Recognized. You can trust their quality and reliability.
• Highest shrink ratio: The Ancor heat shrink ring terminals have the highest shrink ratio in the market. They shrink to 1/3 of their original size, ensuring a tight fit and secure connection.
• Shrinks at 257 deg. F/125 deg. C: These terminals shrink at a temperature of 257 degrees Fahrenheit (125 degrees Celsius), making installation quick and hassle-free.
• Operating temperature range: With an operating temperature range of 40 degrees Celsius to 110 degrees Celsius, these ring terminals are suitable for various environments and applications.
• Heat activated adhesive: The Ancor heat shrink connectors feature heat-activated adhesive built into the sleeve of the heat shrink tubing. This adhesive forms a water-tight seal, providing exceptional vibration and strain relief.
• Tinned for corrosion resistance: To ensure maximum durability, these ring terminals are tinned for corrosion resistance. They are designed to withstand harsh conditions and maintain optimal performance.
• Pure copper for maximum current flow: Made from pure copper, these ring terminals offer excellent conductivity, allowing for maximum current flow and minimizing power loss.
• Brazed seam for maximum strength: The terminals feature a brazed seam construction, providing maximum strength and durability. They can withstand heavy usage and maintain a secure connection.

Specifications:

• Gauge Size: 16-14
• Screw Size: #8
• Quantity: 25
• Wire Range: 16-14
• mm: 1-2

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Learn More:

For more information about heat shrink tubing, ring terminals, and related topics, please visit the following Wikipedia pages:

• Heat-shrink tubing
• Ring terminal

Specifications

Product: Ancor 311225 16-14 Gauge 8 Heat Shrink Ring Terminal 25-Pack

Brand: Ancor

Model: 311225

Additional Shipping Information:

Shipping Weight: 0.20 lb

Shipping Height: 1.00 in

Shipping Width: 4.00 in

Shipping Length: 4.00 in
