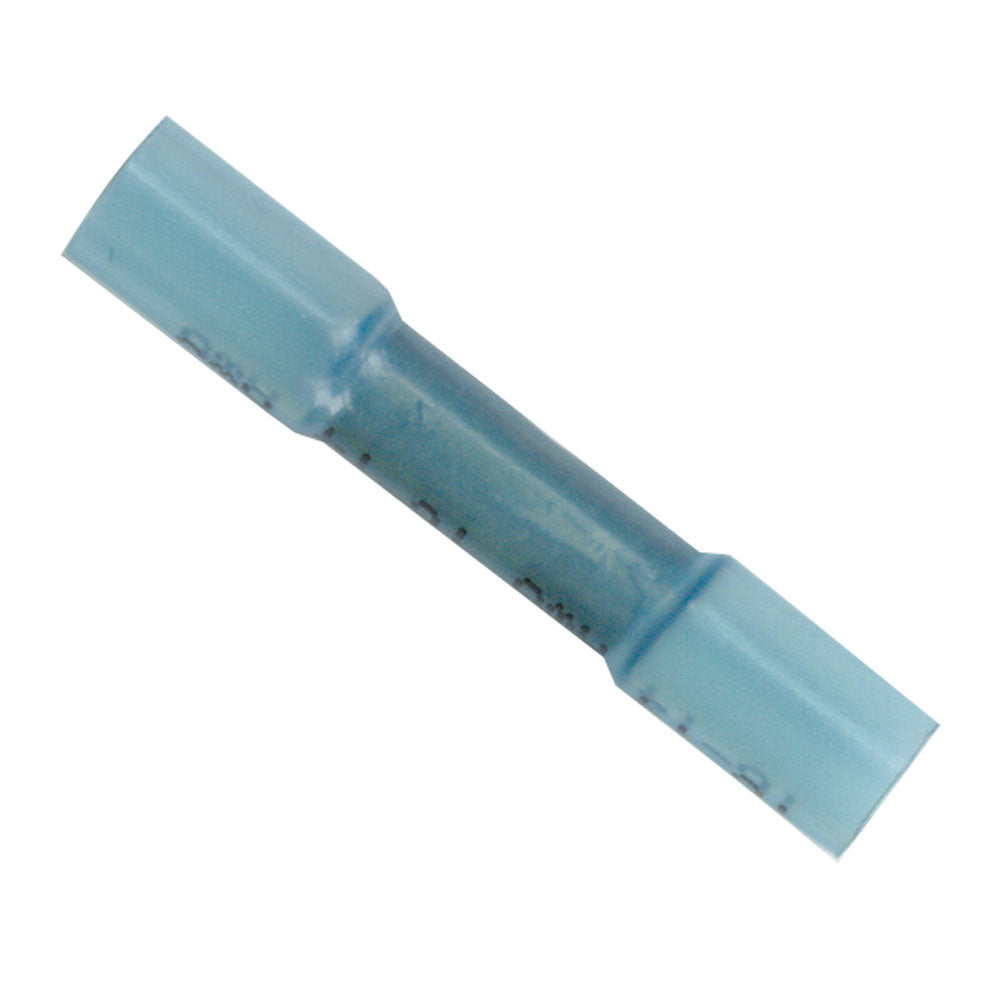

Ancor 309125 Blue Heat Shrink Butt Connector 16-14 AWG (25 Pack)

The Ancor 309125 Blue Heat Shrink Butt Connector 16-14 AWG (25 Pack) is a pack of 25 heat shrink butt connectors designed for use with 16-14 gauge wires. These connectors are made with cross-linked polyolefin tubing that is stronger than PVC tubing and will not burn like PVC. The heat-activated adhesive lining provides an impervious seal to salt water, oil, acids, and sunlight, as well as providing strain relief. The nylon insulator is preferred by experts for its marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.

The Ancor 309125 Blue Heat Shrink Butt Connector 16-14 AWG (25 Pack) is UL listed and CSA recognized, and has the highest shrink ratio, shrinking to 1/3 of its original size. It shrinks at 257 degrees Fahrenheit/125 degrees Celsius and has an operating temperature range of 40 degrees Celsius to 110 degrees Celsius. The connectors offer heat-activated adhesive built into the sleeve of the heat shrink tubing, which shrinks to form a water-tight seal and the ultimate vibration and strain relief. The connectors are tinned for corrosion resistance, and the pure copper provides maximum current flow. The brazed seam provides maximum strength.

The Ancor 309125 Blue Heat Shrink Butt Connector 16-14 AWG (25 Pack) has the following specifications:

• Gauge Size: 16-14
• Quantity: 25
• Wire Range: 16-14
• mm: 1-2

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Product Features

• Cross-Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
• UL Listed and CSA Recognized
• Highest shrink ratio - shrinks to 1/3 original size.
• Shrinks at 257 deg. F/125 deg. C.
• Operating temperature range 40 deg. C to 110 deg. C.
• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
• Shrinks to form a water tight seal and the ultimate vibration and strain relief.
• Tinned for corrosion resistance.
• Pure copper for maximum current flow.
• Brazed seam for maximum strength.

Learn More

• Heat-Shrink Tubing
• Butt Connector

Specifications

Product: Ancor 309125 16-14 Butt Connector Heat Shrink Blue 25 Pack

Brand: Ancor

Model:

Additional Shipping Information:

Shipping Weight: 0.20 lb

Shipping Height: 1.00 in

Shipping Width: 4.00 in

Shipping Length: 4.00 in
