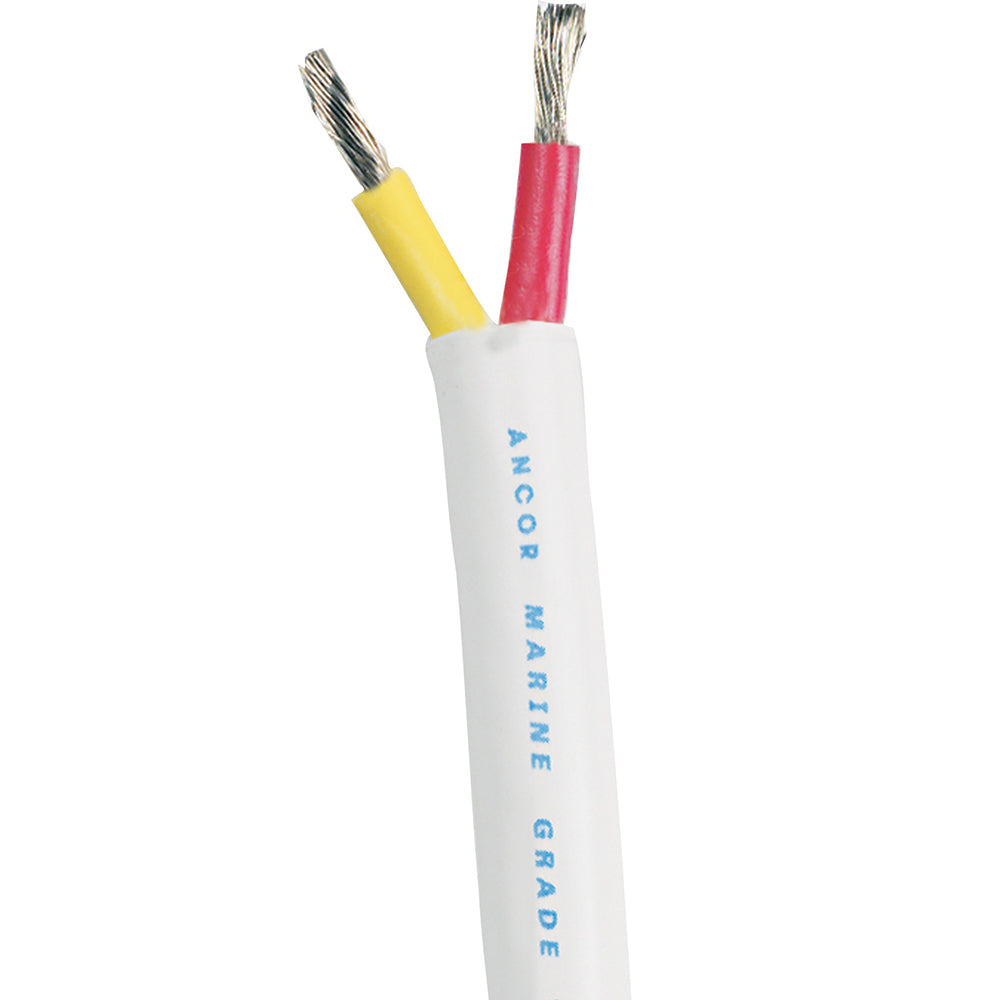

Ancor 126325 Duplex Safety Cable 12/2 AWG Red/Yellow 250ft Round

Ancor 126325 Duplex Safety Cable is a high-quality and reliable electrical cable designed for marine applications. This round cable features a length of 250ft and is constructed with two primary conductors color-coded in red and yellow, conforming to ABYC standards. The cable is encased in a white common jacket that is easily removable and provides exceptional abrasion resistance.

Exceeding UL 1426 standards, this safety duplex cable is crafted from ultra-flexible tinned copper stranding (Type 3/Class K) to deliver maximum protection against corrosion, electrolysis, vibration, and flexing. Its premium vinyl insulation is rated at 600V, with a temperature resistance of 105&degC in dry conditions and 75&degC in wet conditions. Even in extreme cold temperatures as low as -40&degF/C, the cable remains flexible and retains its performance.

The Ancor 126325 Duplex Safety Cable is built to withstand harsh marine environments. It is resistant to saltwater, battery acid, oil, gasoline, heat, abrasion, and UV radiation. This ensures its durability and longevity, making it an ideal choice for marine electrical applications.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to Wikipedia.

Product Features:

• Safety duplex cable with 12/2 AWG gauge
• Color-coded red and yellow primary conductors
• White common jacket for easy removal and excellent abrasion resistance
• Exceeds UL 1426 standards
• Ultra-flexible tinned copper stranding (Type 3/Class K) for corrosion and electrolysis protection
• Premium vinyl insulation rated at 600V, 105&degC dry, and 75&degC wet
• Remains flexible even in extreme cold (-40&degF/C)
• Resistant to saltwater, battery acid, oil, gasoline, heat, abrasion, and UV radiation

Specifications:

• Product Type: Safety Cable
• Gauge: 12/2 AWG
• Conductor Color: Red/Yellow
• Jacket Color: White
• Cable Shape: Round
• Length: 250ft
• Stranding: Ultra flexible (Type 3/Class K) tinned copper
• Insulation Rating: 600V, 105&degC dry, 75&degC wet
• Temperature Resistance: -40&degF/C
• Standards: Exceeds UL 1426

Learn More:

For more information about di(2-ethylhexyl)phthalate (dehp), please visit Wikipedia.

Specifications

Product: Ancor 126325 Safety Duplex Cable 12/2 Awg Red/Yellow Round 250'

Brand: Ancor

Model: 126325
