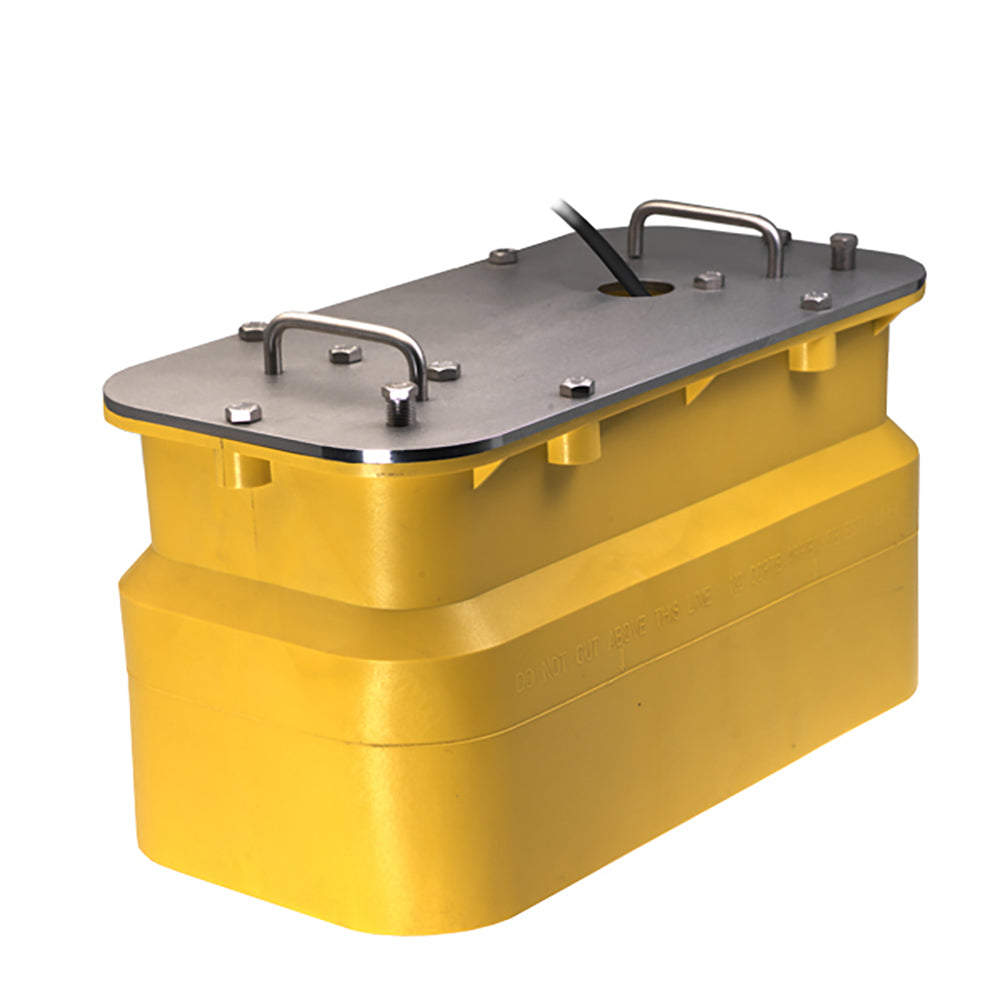

Airmar R599C-Lh In-Hull Chirp Transducer - Low-High Frequency

The Airmar R599C-Lh is a powerful in-hull chirp transducer designed for superior deep-water performance. With a maximum depth capability of 10,000 feet, this transducer is ideal for serious anglers and captains who demand the best in target resolution and bottom discrimination.

The R599C-Lh features a low frequency range of 28 to 60 kHz with a beamwidth of 23&deg to 9&deg port-starboard and 11&deg to 5&deg fore-aft. The high frequency range is 130 to 210 kHz with an 8&deg to 4&deg beamwidth. This transducer covers a total bandwidth of 112 kHz, including popular fishing frequencies of 50 and 200 kHz.

Constructed with a urethane transducer housing and plastic mounting tank, the R599C-Lh also includes exclusive Xducer ID® technology for optimal performance. The transducer is installed in the included tank, which is cut to the boat's deadrise angle for proper orientation and performance.

Whether you're looking for extreme target detail, bottom discrimination, or bait and game-fish separation, the Airmar R599C-Lh is the go-to choice for top captains who demand maximum depth capability and excellent target resolution.

Features:

• Depth only transducer
• 2 to 3 kW power rating
• Low frequency range: 28 to 60 kHz
• High frequency range: 130 to 210 kHz
• Maximum depth of 10,000 feet
• 112 kHz total bandwidth
• Covers popular fishing frequencies
• Urethane transducer housing
• Exclusive Xducer ID® technology

Specifications:

• Cable Length: 15 m (49')
• Connector: Bare Wire
• Cross Reference: A80212
• Deadrise Range: 0&deg to 22&deg
• Frequency Band: Low-High
• Housing Material: Urethane
• Hull Material: Solid fiberglass only
• Low Frequency Beamwidth: 23&deg to 9&deg
• High Frequency Beamwidth: 8&deg to 4&deg
• Max Depth: Low frequency- 3048 m (10000'), High frequency- 457 m (1500')
• Max Vessel LOA: 12 m (40') and above
• Mounting Style: In-Hull
• Power Rating: 2-3 kW
• Single or Dual Frequency: CHIRP-Ready Dual-Band
• Tilted Element: No

What's in the Box:

• R599 Transducer with 15m cable
• Tank
• Gasket
• Plate
• Hardware

Learn More

• Transducer on Wikipedia

Specifications

Product: Airmar R599C-Lh In-Hull Chirp Transducer - Low-High Frequency

Brand: Airmar

Model: R599C-LH

Additional Shipping Information:

Shipping Weight: 56.40 lb

Shipping Height: 14.00 in

Shipping Width: 17.00 in

Shipping Length: 28.00 in
