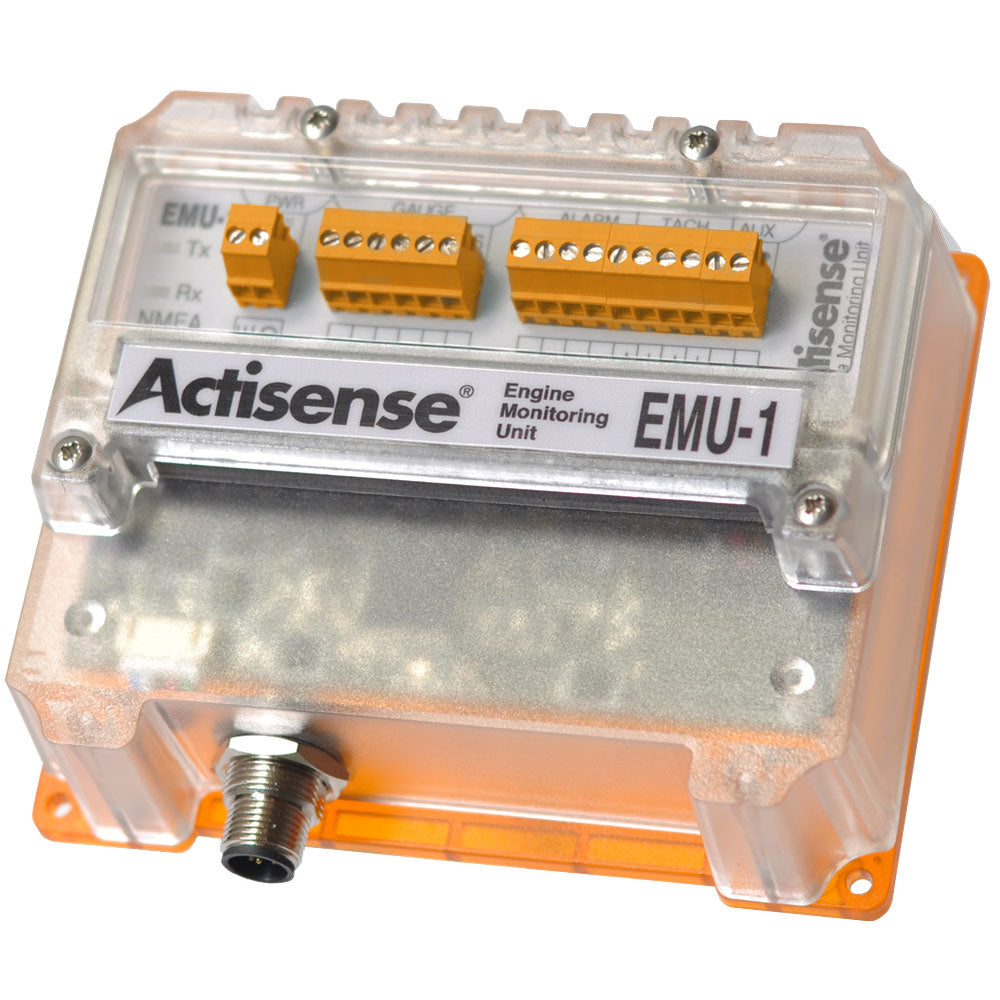

Actisense EMU-1 NMEA2000 Engine Management Unit Analog

The Actisense EMU-1 is a specialised analogue to NMEA 2000 Gateway that converts data from analogue engine senders into NMEA 2000. This unit enables NMEA 2000 display devices to monitor the engine on a vessel. With a PC based configuration tool, the settings inside the EMU-1 can be adjusted to suit the engine it is working with, making it a flexible solution for many engine makes and models. Capable of measuring a wide range of engine parameters, the EMU-1 reports how the engine is operating and shares the information across the network.

Designed to simplify the conversion of analogue engine parameters (e.g. Temperature, pressure, and RPM) into NMEA 2000 engine PGNs, the EMU-1 simplifies processes and reduces the number of input/output wires required at each engine. The two-part screw terminal connection system allows for an easy pluggable connection to an engine wiring harness.

Multiple engines are supported by setting the engine instance using the EMU-1 configuration tool. Currently, one EMU-1 per engine is supported, with future plans for supporting multiple engines on a single EMU-1 through a firmware update. The customised case ensures that the electronics are sealed while allowing quick access to the electrical connections.

It is recommended to have an Actisense NGT-1 NMEA 2000 PC Interface for every EMU-1 installation. The NGT-1 can be used to update the Firmware, connect the Configuration Tool, and display data on a PC for diagnostic and information purposes, using NMEA Reader.

Features:

• 6 gauge inputs
• 4 alarm inputs
• 2 tacho inputs
• Logs total engine time using the tacho inputs
• 2 auxiliary inputs for additional flexibility
• Simple single wire gauge connections; common ground referenced
• Manual measurements not required when configuring
• Firmware can be updated over NMEA 2000 network
• Easy customization for different installations (requires an NGT-1 and PC software)
• Waterproof electronics and splash-proof connections
• Pluggable connectors for quick and easy installation
• Optional DIN rail mounting kit available

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Learn More

• NMEA 2000 on Wikipedia

Specifications

Product: Actisense EMU-1 NMEA2000 Engine Management Unit Analog

Brand: Actisense

Model: EMU-1

Additional Shipping Information:

Shipping Weight: 1.00 lb

Shipping Height: 3.00 in

Shipping Width: 6.00 in

Shipping Length: 9.00 in
